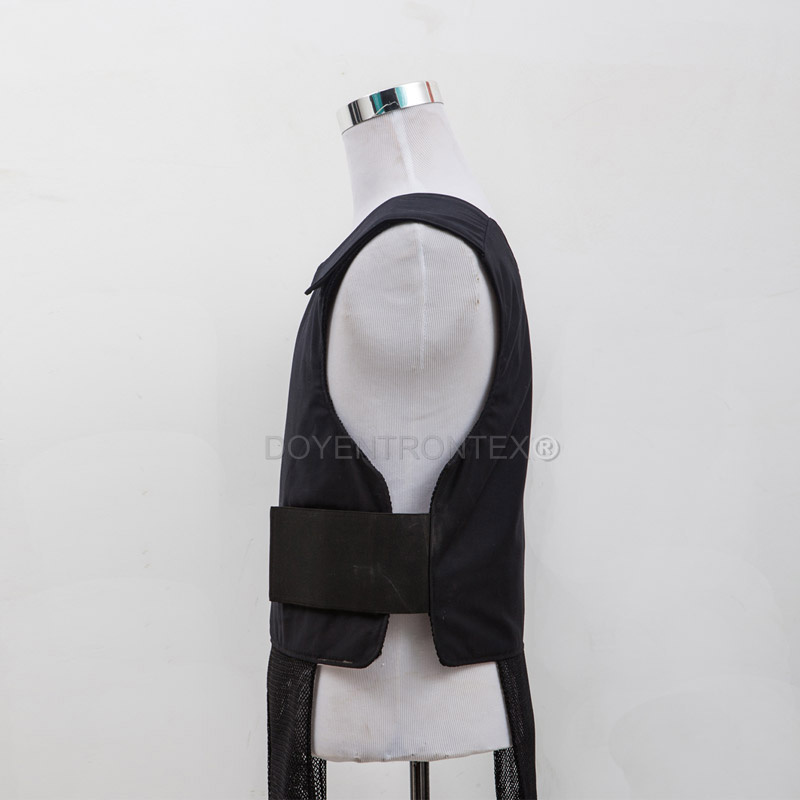

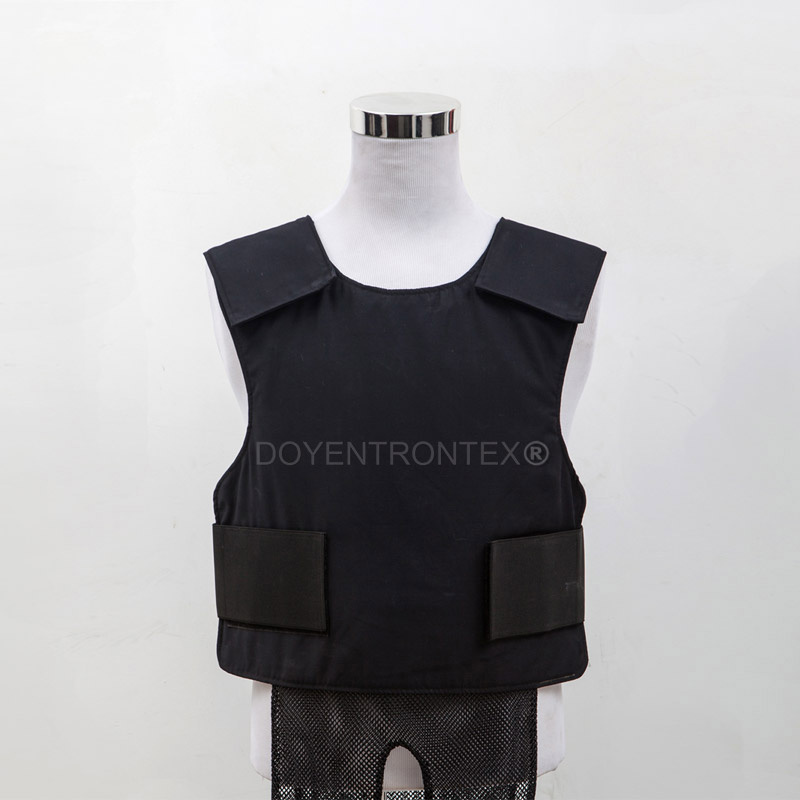

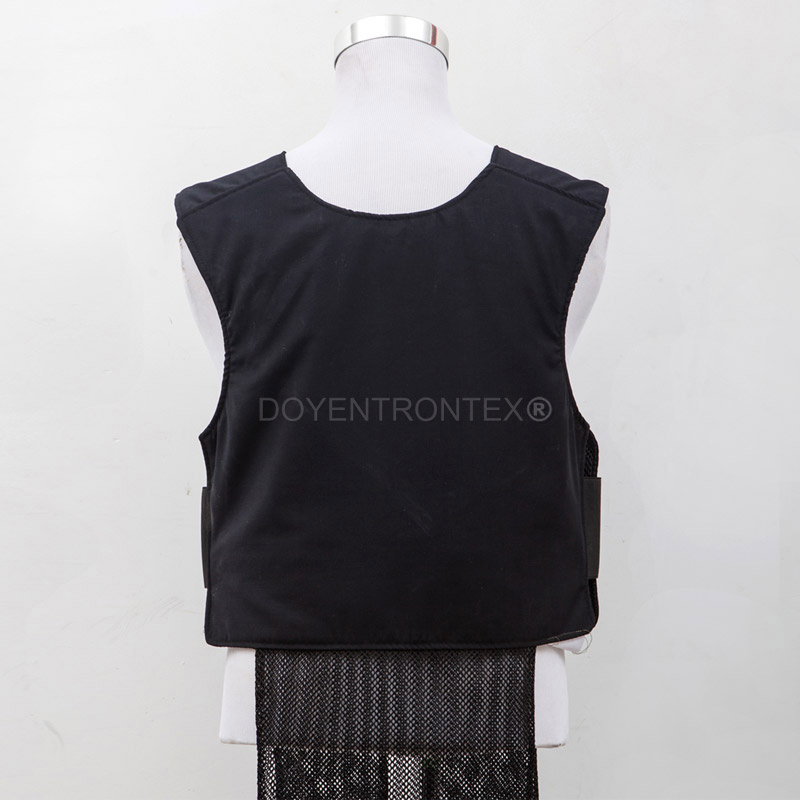

Model No.: TYZ-BV-089
Type: WB534
Material: UHMWPE Fiber UD
Level: NIJ IIIA. 44
Pies: 32
Protection: Back, front, side
Total protective area: 0.32m2
Outer Cover: Outer cover is digital black, it is water and fire resistant and with internal cooling. And it can be machine washable. The pocket and shoulder and front belt are high quality Velcro fastener, it can be taken off easily, and the outer cover have front and back pocket to insert the 25cmX30cm Plate.
Delivery time: 20 Days
| Item | Sheet Type | Protection level | Plies | Areal density (Kg/m2) | Protective Area (m2) | Weight (Without cover) |
| Ballistic vest | WB422B | GA141-2010 II | 54 | 7.0 | 0.32 | 2.24 |
| WB422B | GA141-2010 III | 69 | 9.0 | 0.32 | 2.88 |
| WB422B | NIJ IIIA 9mm | 36 | 4.7 | 0.32 | 1.51 |
| WB422B | NIJ IIIA .357 | 45 | 5.5 | 0.32 | 1.76 |
| WB422B | NIJ IIIA .44 | 49 | 6.4 | 0.32 | 2.05 |
| Bulletproof & Stab-resistant vest | SF102 | GA141-2010 II
GA68-2008 24±0.5J | | 9.6 | 0.32 | 3.07 |
| SF102 | GA141-2010 III
GA68-2008 24±0.5J | | 10.8 | 0.32 | 3.46 |
| Ballistic vest | WB532 | GA141-2010 II | 49 | 6.4 | 0.32 | 2.05 |
| WB532 | GA141-2010 III | 62 | 8.1 | 0.32 | 2.59 |
| WB532 | NIJ IIIA 9mm | 34 | 4.5 | 0.32 | 1.44 |
| WB532 | NIJ IIIA .44 | 42 | 5.5 | 0.32 | 1.76 |
| Ballistic vest | WB534 | GA141-2010 II | 39 | 6.4 | 0.32 | 2.05 |
| WB534 | GA141-2010 III | 50 | 8.1 | 0.32 | 2.59 |
| WB534 | NIJ IIIA 9mm | 26 | 4.5 | 0.32 | 1.44 |
| WB534 | NIJ IIIA .44 | 32 | 5.5 | 0.32 | 1.76 |
| Model No | Type | Material | Protection | Style | Color |
| TYZ-BV1111W | Bulletproof | PEUD | Front, back, side | General | White |
| TYZ-BV1121W | Bulletproof | PEUD | Front, back, side, shoulder | General | White |
| TYZ-BV1131B | Bulletproof | PEUD | Front, back, side, shoulder, corner, groin. and arm | General | Black |
| TYZ-BV1141M | Bulletproof | PEUD | Functional | General | Military |
| TYZ-BV1211Y | Bulletproof | Kevlar | Front, back, side | General | Yellow |
| TYZ-BV1212B | Bulletproof | Kevlar | Front, back, side | Male | Black |
| TYZ-BV1232M | Bulletproof | Kevlar | Front, back, side, shoulder, corner, groin. and arm | General | Yellow |
| TYZ-BV1213W | Bulletproof | Kevlar | Front, back, side | Female | White |
| TYZ-BV2111L | Stab-resistant | PEUD | Front, back, side | General | Blue |
| TYZ-BV2121B | Stab-resistant | PEUD | Front, back, side, shoulder | General | Black |
| TYZ-BV2131W | Stab-resistant | PEUD | Front, back, side, shoulder, corner, groin. and arm | General | White |
| TYZ-BV3111W | Bulletproof & Stab-resistant | PEUD | Front, back, side | General | White |
| TYZ-BV3131W | Bulletproof & Stab-resistant | PEUD | Front, back, side, shoulder, corner, groin. and arm | General | White |
| | Chest | Waist |
| | Inches | cm | Inches | cm |
| Small | 34 - 38 | 86 - 96 | 28 | 71.1 |
| Medium | 38 - 43 | 96 - 109 | 32 | 81.3 |
| Large | 43 - 46 | 109 - 116 | 36 | 91.4 |
| XL | 46 - 48 | 116 - 122 | 40 | 101.6 |
| XXL | 48 - 50 | 122 - 127 | 44 | 111.8 |
| XXXL | 50 - 52 | 127 - 132 | 47 | 119.4 |
| XXXXL | 52 - 53 | 132 - 135 | 51 | 129.4 |
Beijing Tongyizhong Specialty Fiber Technology & Development Co. Ltd. (BJTYZ) is a National High-tech Enterprise specialized in R&D, production and sales of Ultra High Molecular Weight Polyethylene (UHMWPE) fiber and its composites. BJTYZ which is subordinated to State Development Investment Corporation and held by a Public Company Sinotex Investment Development Co., Ltd was established in 1999 with a registered capital of 80 million RMB. Through 20 years' fast development, BJTYZ has become a word-famous high performance fiber supplier that employs over 500 staffs and covers plant area of 50000 square meters.
BJTYZ, one of the first domestic enterprises doing industrial technology research on UHMWPE fiber, launched the research since 1994, and has become one of the three companies took the lead in realizing the industrialization of Gel Spinning of UHMWPE fiber. As a leading enterprise in UHMWPE fiber, with 20 years' development, BJTYZ has its own complete intellectual property rights for key technologies. They have filed 45 patent applications, among which 30 inventive patents have been authorized, including 1 European patent and 1 Korean patent. These inventive patents cover all the technological areas of UHMWPE fiber and its composites. BJTYZ also took charge of the draft of the industrial standard for UHMWPE fiber, which had been approved by MIIT and officially promulgated and implemented on April 1, 2011.
BJTYZ has already built up the research & development center which has a innovation team of 90 technicians, including nearly 30 postgraduates. Their developmental achievement has won the Second Prize for National Science and Technology Advance in 2009, also their inventive patent has achieved the 11th China Patent Award of Excellence in 2009. BJTYZ has formed strict production management and inspection & test system, and has got both ISO 9001-2008 Quality Management System Certificate and GJB9001B-2009 National Military Quality Management System Certificate. With good quality, stable performance and reasonable price, DOYENTRONTEX® Fibers and composites are widely recognized by both domestic and overseas customers. Based on the powerful research and transformation capability of scientific and technological achievements, BJTYZ holds the ability to provide customers with various solutions. DOYENTRONTEX® Fiber has been successfully used in the final maritime salvage and recovery parachutes of the "Shenzhou Spaceship 5, 6, 7, 8, 9", the military amphibious tank beach gear system and the emergency landing system of war craft runaway, which have made great contributions towards strengthening the construction of national defense and public safety equipment in the world.
