Prod Model: |
Y series |
Function: |
Flatwork Ironing |
OEM: |
Available |
Warranty: |
2 Years |
Delivery: |
15-20 Days |
Heating Type: |
Electric/Steam/Gas |
No Of Rolls: |
1/2/3 Rollers, OEM Available |
Motor Power: |
0.75/1.5/2.2kw |
Product Description

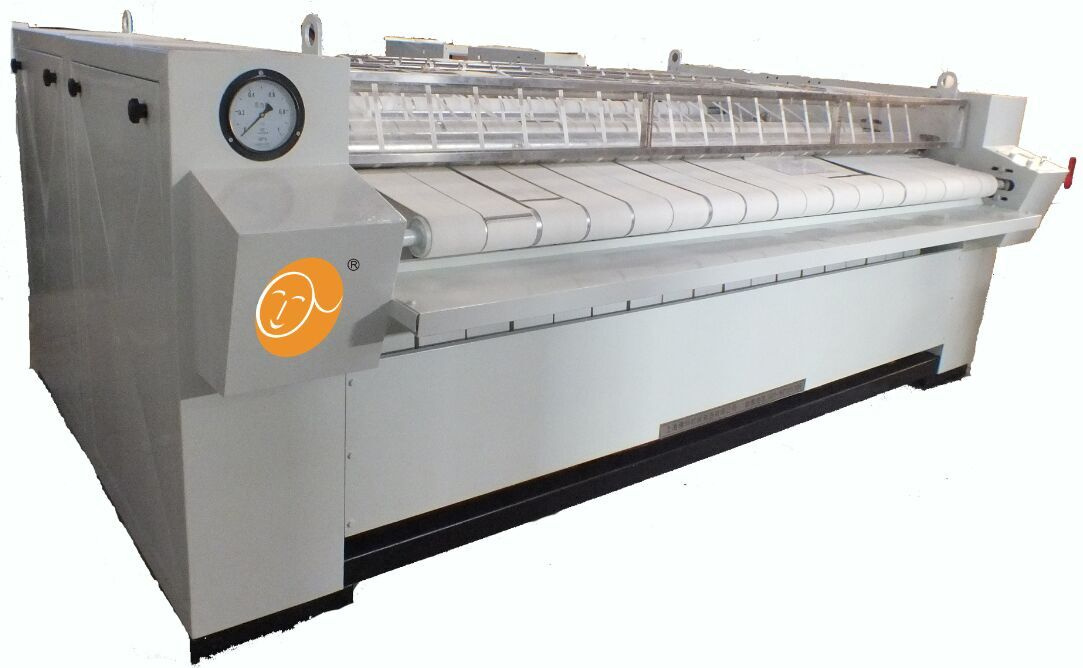

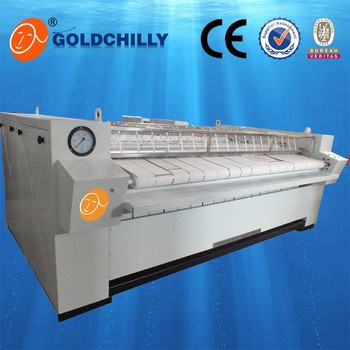

Bedsheet, Textile, Tablecloth fully automatic ironing machine
Short introduction:1.The first roller adopt stainless steel roller, it has fast transferring-heating, high heat-efficiency, light weight, rustproof, smooth appearance.
2.The second roller adopt ironing-gutter, iron under pressure, so it will have perfect ironing-effect
3.Stainless steel adopts support chest to improve life span.
4.Transmission table lengthened accord with human-machine engineering principle.
5.Frequency conversion speed-adjusting save 60% power, adopt chain-wheel driving, reducing break-down,stable run,low noise.
6.Advanced wiring control-system make operation and maintenance convenient,easy.
7.Stable safety design can urgently carry out stop commend in accident.
Specification:a. Single Roll Main parameters:Model | Unit | Y-1600ID | Y-1800ID | Y-2200ID | Y-2500ID | Y-2800ID | Y-3000ID |
Max ironing width | mm | 1600 | 1800 | 2200 | 2500 | 2800 | 3000 |
Ironing speed | m/min | 0~6 | 0~6 | 0~6 | 0~6 | 0~6 | 0~6 |
Top ironing temperature | ºC | 158 | 158 | 158 | 158 | 158 | 158 |
Stream pressure | Mpa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
Electric heater capacity | Kw | 30.6 | 30.6 | 30.6 | 30.6 | 34.2 | 38 |
Motor power | Kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
External dimension | H | mm | 1260 | 1260 | 1260 | 1260 | 1260 | 1260 |
D | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
W | 3740 | 3740 | 3740 | 3740 | 4040 | 4240 |
Machine weight | kg | 1000 | 1000 | 1000 | 1000 | 1030 | 1100 |
b. Double Rolls Main parameters:Model | Unit | Y-2500 IID | Y-2800 IID | Y-3000 IID |
Max ironing width | mm | 2500 | 2800 | 3000 |
Ironing speed | m/min | 0~18 | 0~18 | 0~18 |
Top ironing temperature | ºC | 158 | 158 | 158 |
Stream pressure | Mpa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
Motor power | Kw | 1.5 | 1.5 | 1.5 |
External dimension | H | mm | 1370 | 1370 | 1370 |
D | 2150 | 2150 | 2150 |
W | 3740 | 4040 | 4240 |
Machine weight | kg | 1920 | 1980 | 2040 |
C. Triple Rolls Main parameters:Model | Unit | Y-2800 IIID | Y-3000 IIID |
Max ironing width | mm | 2800 | 3000 |
Ironing speed | M/min | 0~25 | 0~25 |
Top ironing temperature | ºC | 158 | 158 |
Stream pressure | Mpa | 0.4~0.6 | 0.4~0.6 |
Motor power | Kw | 2.2 | 2.2 |
External dimension | H | mm | 1370 | 1370 |
D | 3000 | 3000 |
W | 4040 | 4240 |
Machine weight | kg | 2750 | 2900 |
ShippingCompany Info
A. Our company sales dry cleaning machine, washing machine, dryer machine and so on.
B.High quality of stainless steel
C.Our company has more than13 years laundry shop experience,7000 chain laundry shops in China
D.rapid response after-sale service
E.long life for use
F.ISO CE approved
