Prod Model: |
RF-253 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mesh: |
6-180mesh |
Colour: |
Yellow,Red |
Width: |
0.6-2m |
Wire Diameter: |
0.051-0.71mm |
Hole Shape: |
Square |
Application: |
Screening |
Weave Technique: |
Plain Weave |
Standard Length: |
30m |
Feature: |
Anti-Acid |
Customized: |
Non-Customized |
Color: |
Red |
Certification: |
ISO9001 |
Material: |
Copper |
Surface Treatment: |
as Photo |
Product Description

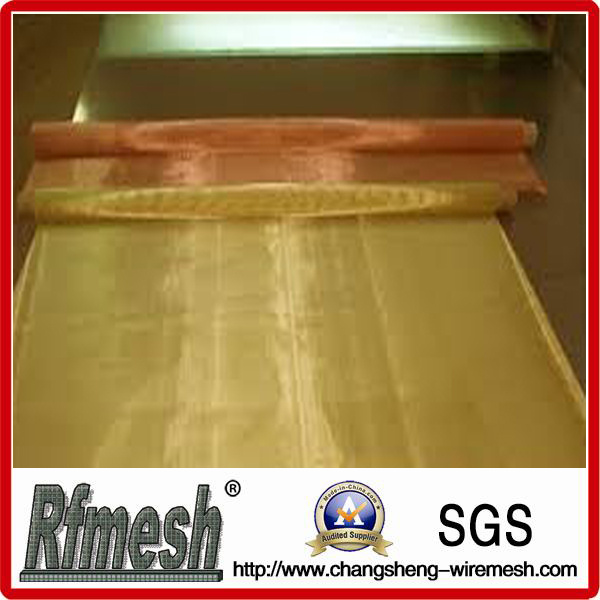

Materials: Yellow copper wire H68, H80, phosphorus copper wire (tin bronze), purple copper wire
Weaving forms: Plain weaving, twill weaving, microgroove-plain
Weaving-twill weaving, satin weaving, formatted with a lot of burs
Mesh: 2mesh to 400mesh
Performance: Good resistance to rubbing, no magnetism, strong expanding property4) Length: 5m - 400m
Wire diameter, 0.15mm-0.3mm
Uses: Used for industrial purposes, window doors and poultry's guards, sieves, filters and other purposes.
Features: Corrosion resistance, easy cleaning, fixed shape, long-life, good ventilating, sunshade etc.
Application: Used in architectures, husbandry, gardens, hotels and other sites preventing mosquito.
Mesh | Wire Dia. | Opening(mm) |
SWG | mm | inch |
6 | 22 | 0.711 | 0.028 | 3.522 |
8 | 23 | 0.610 | 0.024 | 2.565 |
10 | 25 | 0.508 | 0.020 | 2.032 |
12 | 26 | 0.457 | 0.018 | 1.660 |
14 | 27 | 0.417 | 0.016 | 1.397 |
16 | 29 | 0.345 | 0.014 | 1.243 |
18 | 30 | 0.315 | 0.012 | 1.096 |
20 | 30 | 0.315 | 0.0124 | 0.955 |
22 | 30 | 0.315 | 0.0124 | 0.840 |
24 | 30 | 0.315 | 0.0124 | 0.743 |
26 | 31 | 0.295 | 0.0116 | 0.682 |
28 | 31 | 0.295 | 0.0116 | 0.612 |
30 | 32 | 0.247 | 0.011 | 0.573 |
32 | 33 | 0.254 | 0.010 | 0.540 |
34 | 34 | 0.234 | 0.0092 | 0.513 |
36 | 34 | 0.234 | 0.0092 | 0.472 |
38 | 35 | 0.213 | 0.0084 | 0.455 |
40 | 36 | 0.193 | 0.0076 | 0.442 |
42 | 36 | 0.193 | 0.0076 | 0.412 |
44 | 37 | 0.173 | 0.0068 | 0.404 |
46 | 37 | 0.173 | 0.0068 | 0.379 |
48 | 37 | 0.173 | 0.0068 | 0.356 |
50 | 37 | 0.173 | 0.0068 | 0.335 |
60×50 | 36 | 0.193 | 0.0068 | |
60×50 | 37 | 0.173 | 0.0076 | |
60 | 37 | 0.173 | 0.0068 | 0.250 |
70 | 39 | 0.132 | 0.0068 | 0.231 |
80 | 40 | 0.122 | 0.0052 | 0.196 |
90 | 41 | 0.112 | 0.0048 | 0.170 |
100 | 42 | 0.012 | 0.0044 | 0.152 |
120×108 | 43 | 0.091 | 0.004 | |
120 | 44 | 0.081 | 0.0036 | 0.131 |
140 | 46 | 0.061 | 0.0032 | 0.120 |
150 | 46 | 0.061 | 0.0024 | 0.108 |
160 | 46 | 0.061 | 0.0024 | 0.098 |
180 | 47 | 0.051 | 0.002 | 0.090 |
200 | 47 | 0.051 | 0.002 | 0.076 |
