Wenzhou Huashuo Machinery Co., Ltd. >> BS-400la+Bmd-450c Auto L-Bar Sealing Heat Shrink Packing Wrapping Machine

BS-400la+Bmd-450c Auto L-Bar Sealing Heat Shrink Packing Wrapping Machine

BS-400la+Bmd-450c Auto L-Bar Sealing Heat Shrink Packing Wrapping Machine
Price: US $ 2000-5000/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: BS-400LA+BMD-450C
Automatic Grade: Semi-Automatic
Application: Hair Care Products
Driven Type: Mechanical
Material Type: Solid
Packaging Material: Film
Packaging Type: Bag

Product Description

Application:

Single and group products of medicine, food, drinking, stationery, printings, cosmetic, electonic products, toys, auto parts, tableware, etc.

Features:

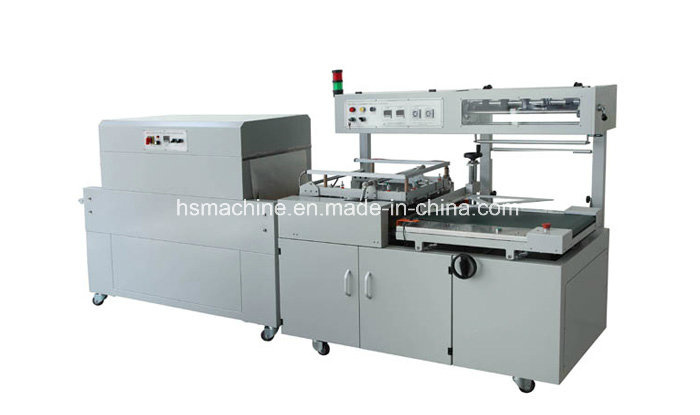

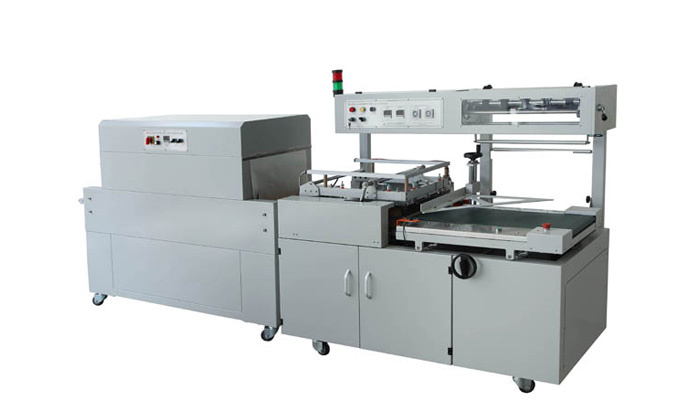

1. BS-400LA+BMD-450C is a fully automatic shrink packaging machine including l sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

2. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.

3. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.

4. Different products with different sizes can be packed together as promotional package.

5. Adopt Omron brand parts such as temperature controller, timer, relay, switch, and sensor.

6. Alarm for scrap film break or full.

7. A pair of photoelectric switch in vertical for thin products.

8. Optional closing conveyor for small products.

9. Optional sensor for transparent products.

Technique parameter



L SEALER:
SEALING TYPEL-SEALING
POWER SUPPLY380V/50-60HZ/3PHASE
PACKING CAPACITYMAX. 35 PACKS PER MINUTE (DEPENDS ON PRODUCT SIZE)
SEALING SIZE570 X 480MM
SEALING HEIGHT150MM
PACKING WIDTH350MM
PACKING SIZEWIDTH + HEIGHT < 400MM, LENGTH + HEIGHT < 480MM
FILM TYPECENTER FOLDED POLYOLEFIN (POF) FILM
MAX FILM SIZE530MM (WIDTH) X 280MM (OUTER DIAMETER)
POWER CONSUMPTION1.5 KW
WORKING HEIGHT780-850 MM
AIR PRESSURE0.5MPA (5 BAR)
SEALING KNIFESPECIAL DURABLE ALLOYED SEALING KNIFE WITH ANTI-STICK TEFLON COATS
MACHINE MATERIALCARBON STEEL
MACHINE DIMENSIONS1600 X 770 X 1450 MM
SHRINK TUNNEL:
POWER SUPPLY380V/50-60HZ/3PHASE
OVEN SIZE1200MM (L),  ENTRANCE 450(W) X 220(H) MM
CONVEYOR SPEEDVARIABLE, 40 M/MIN
CONVEYORCHAINS WITH ROTATING SILICON COATED RODS
RATED POWER CONSUMPTIONMAX. 7 KW
WORKING HEIGHT780 - 850 MM
MACHINE MATERIALCARBON STEEL
MACHINE DIMENSIONS1600 X 600 X 1260 MM




























Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Division I has nearly 15 years of experience in the production of packaging machines, and strive to improve the packaging in a variety of practical and perfect aesthetic problems. Widely used in pharmaceutical sections, medical gauze, cotton balls, masks, bread, biscuits, automobile and motorcycle products, such as shape thin film bags, Zhisu packaging.

HS products selling the best-selling drugs, Shanxi 39 with the same, with the drug group, Henan Asia are, Tianjin Pharmaceutical, Master Kong food and other enterprises. And exported to the United States, Mexico, Dubai, Spain, the Philippines, Malaysia, Thailand, Vietnam, Bangladesh and other regions and countries, love the majority of users welcome.

To quality as the standard, the price for the grassroots level. To serve as the source, to talent as a fundamental. Continuous innovation, the pursuit of excellence concept. HS machinery is willing to create value for you, a multiplier mission, further.
