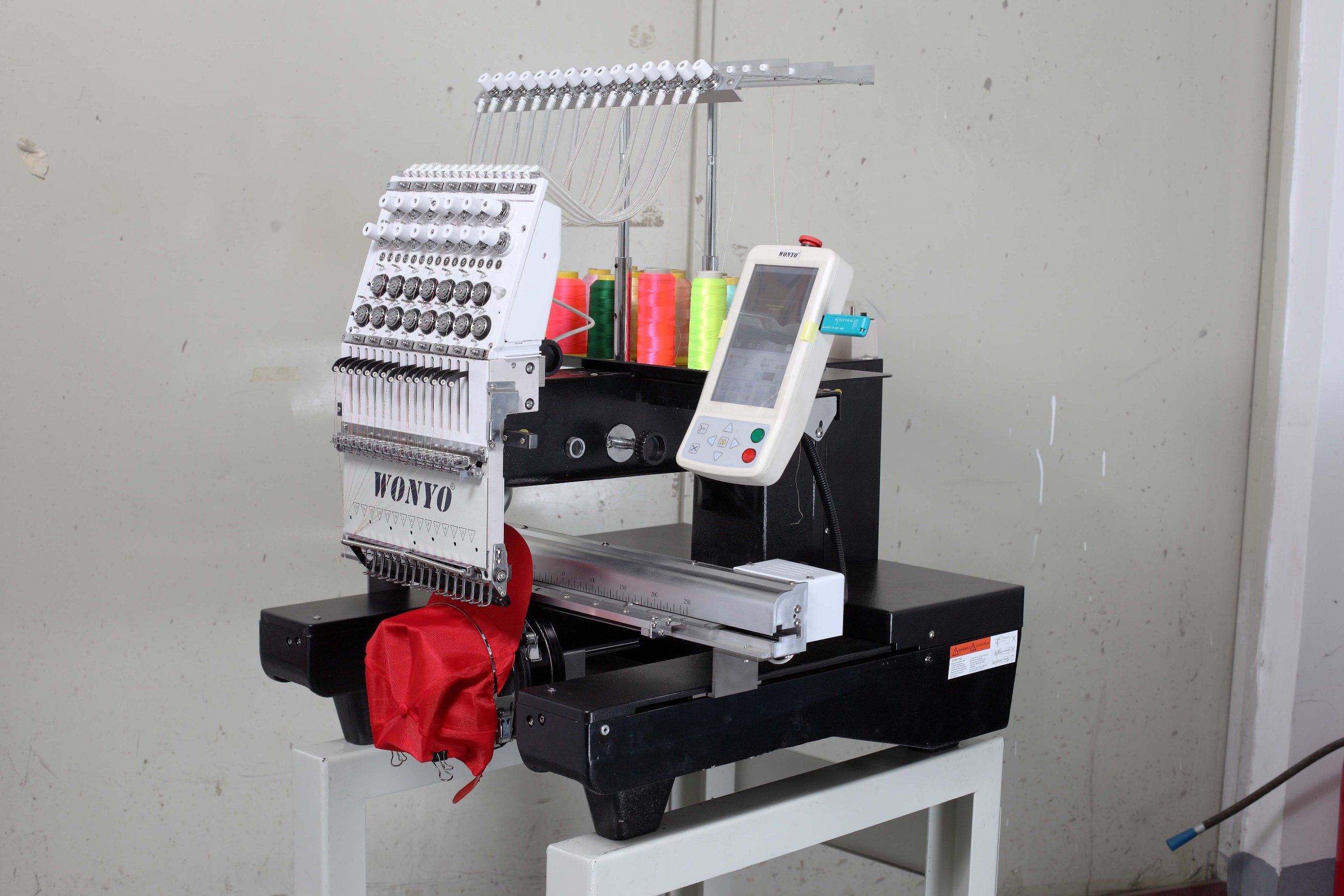

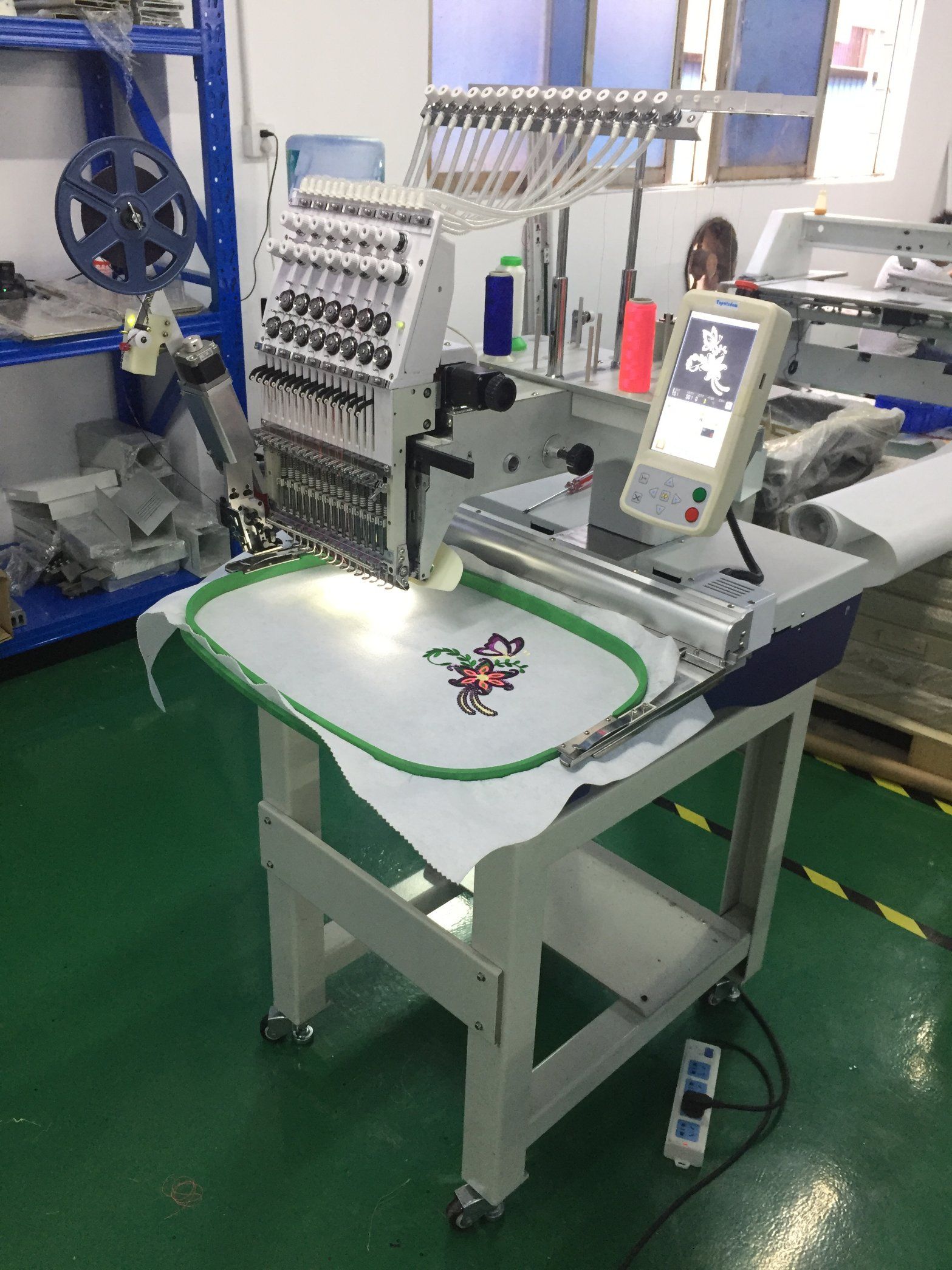

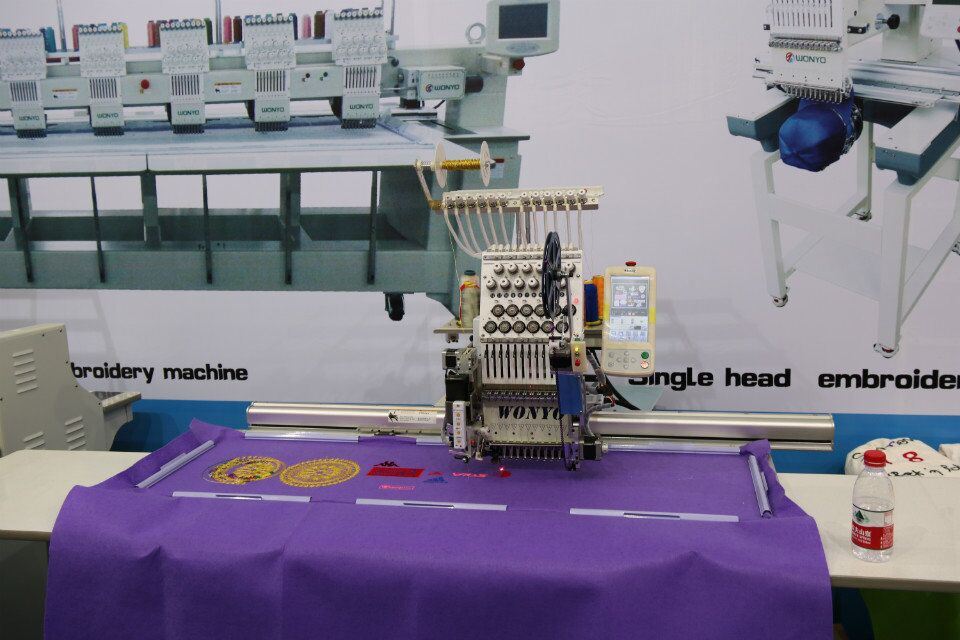

Cap Embroidery Machine Type Computerized Operation 12 Needles One Head Hat Embroidery.

Cap Embroidery Machine Type Computerized Operation 12 needles one head hat embroidery.



I. Main features of the embroidery machine
1. Suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 RPM
5.270° Wide cap frame unit
6. 7" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 20, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering




II. Full coler control panel.
1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available



III. Frames/hoops.
1 Sash Frame: 244cm x 48cm
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head


Needles			Head	Emb. Area  (mm)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)
6/12 or 15			1	360*510	800	800	1600	120
6/12 or 15			1	360*1200	1400	800	1600	150
