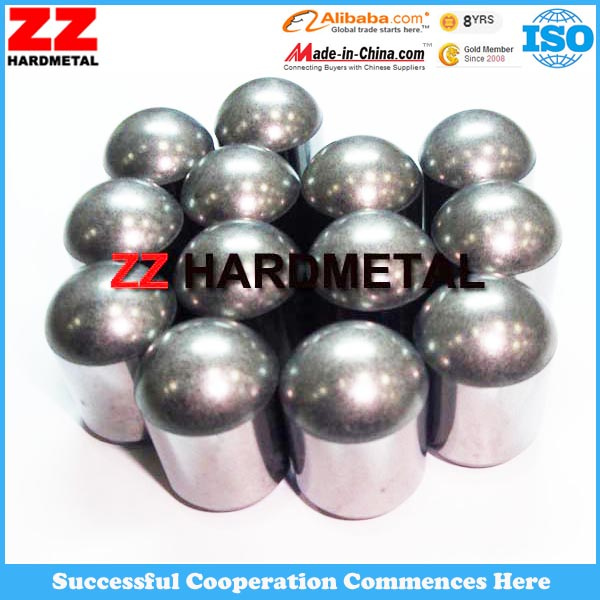

Carbide Buttons for Drill Bit
| Price: |
US $ 46-55KG |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
30KG |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Many Types |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Coal, Ore, Water Well, Mining |
| Feature: |
Wear Resistant |
| Quality: |
Good Performance and Stable Quality |
Product Description
ZZ HARDMETAL established in 2007, as a big and famous manufacturer in Zhuzhou,China. We produce various kinds of tungsten carbide products,including carbide inserts,carbide rods,carbide tips, carbide strips, carbide plates,carbide wire drawing dies, carbide cold forging dies, carbide punches, woodworking tools,mining drill bits,carbide buttons,etc.
Our customers spread all over 50 countries. We provide our customers the carbide products with good quality,competitive price,fast delivery time and reliable after sale service. To your reference, you can check more items from our website: www.zzhardmetal.cn
Conical buttons |
| |
| Type | Dimension (mm) | | D | H | θ° | SR | a° | β° | | SZ0812 | 8.25 | 12.2 | 70 | 3.0 | 20 | 27 | | SZ0913 | 9.25 | 13.3 | 70 | 3.0 | 20 | 26.5 | | SZ0915A | 9.25 | 14.9 | 55 | 3.0 | 20 | 26.5 | | SZ1016 | 10.25 | 16.2 | 70 | 4.0 | 20 | 26.5 | | SZ1016A | 10.25 | 16.2 | 52 | 4.0 | 20 | 26.5 | | SZ1116B | 11.30 | 15.9 | 52 | 4.0 | 20 | 26.5 | | SZ1117C | 11.30 | 17.4 | 60 | 4.0 | 20 | 26.5 | | SZ1118A | 11.30 | 18.0 | 55 | 4.0 | 20 | 26.5 | | SZ1218A | 12.35 | 17.9 | 55 | 4.8 | 20 | 28 | | SZ1218B | 12.35 | 18.0 | 55 | 4.0 | 20 | 27 | | SZ1219 | 12.35 | 18.9 | 70 | 4.8 | 20 | 28 | | SZ1422A | 14.35 | 21.9 | 55 | 5.0 | 20 | 14.5 | | SZ1424 | 14.35 | 23.9 | 67 | 3.0 | 20 | 15.5 | | SZ1420C | 14.35 | 20.0 | 71.5 | 5.0 | 30 | 15.5 |
|
| |
| Type | Dimension (mm) | | D | H | θ° | SR | e | a° | | SZ1420X-G10Q | 14.35 | 20.1 | 52 | 5.0 | 1.0 | 45 | | SZ1825A-E12Q | 18.23 | 25.0 | 55 | 6.0 | 1.2 | 20 | | SZ1926B-E21Q | 19.35 | 26.0 | 42 | 7.5 | 2.1 | 18 |
|
| |
| Type | Dimension (mm) | | D | H | θ° | SR | e | a° | | SZ0711-F2 | 7.25 | 11.0 | 70 | 2.8 | 0.7 | 30 | | SZ0812-E15 | 8.25 | 12.0 | 70 | 3.0 | 1.5 | 18 | | SZ0812-F2 | 8.25 | 12.0 | 70 | 3.0 | 0.7 | 30 | | SZ0914-F2 | 9.25 | 14.0 | 70 | 3.0 | 0.7 | 30 | | SZ1018C-X | 10.25 | 18.0 | 72 | 2.7 | 1.2 | 60 | | SZ1219-F2 | 12.35 | 18.9 | 70 | 4.8 | 0.7 | 30 | | SZ1222X-G10 | 12.35 | 22.0 | 52 | 2.0 | 1.0 | 45 | | SZ1320-F2 | 13.35 | 19.9 | 70 | 4.8 | 0.7 | 30 | | SZ1416B-E20 | 14.35 | 16.0 | 56 | 5.7 | 2.0 | 18 | | SZ1422C-E15 | 14.35 | 22.0 | 71 | 5.0 | 1.5 | 18 |
|
| |
| Standard of tolerances of D and H |
| Diameter | Height | | Nominal size | Tolerance | Nominal size | Tolerance | | ≤10 | ±0.10 | ≤11 | ±0.10 | | 11 - 18 | ±0.15 | | >10 | ±0.15 | 18 - 25 | ±0.15 | | >25 | ±0.20 |
|
ZZ HARDMETAL was established in the year of 2007, We are specialized in tungsten carbide marketing over ten years. With stable products quality, professional service, competitive prices, our customers range over 50 countries and regions.
In the year of 2010, we set up our first Branch Company----ZZ WIDIA in Sao Paul, Brazil. Now ZZ WIDIA is the Sole Agent of several Chinese T-C factories in Brazil, The regular stock products include: Indexable inserts, end mills, cold forging dies, tungsten carbide strips and so on.
We have our own Lab for inspection and we are holding a tungsten carbide factory: Zhuzhou Old Craftsman Precision Carbide Co., Ltd, and at the same time, we have shares in several tungsten carbide factories and Precision-Processing factories, we had already built a very nice long-terms business relationship with lots of tungsten carbide enterprises.
We are familiar with almost all the products related to tungsten carbide, and we have very rich stock of moulds for production. Especially for Precision Processing products, customized products, products with special materials request, Tungsten carbide welding products and so on, we have unique advantage to produce
We are a professional Chinese manufacturer of tungsten carbide products. We work with nine cemented carbide factories by joint stock method. Each factory has their strongpoint products.
Factory 1: Inserts, shims, woodworking tools, saw tips, percussive drill tip.
Factory 2: Cold forging dies, carbide disc, carbide mining bits, plates, carbide tyre nailFactory 3: Carbide drawing dies.
Factory 4: Carbide burrs.
Factory 5: Carbide rods, carbide bars
Factory 6: Carbide balls & seats.
Factory 7: Carbide ceramic tile cutter.
Factory 8: Mining tools
Factory 9: Carbide powder
Depending on our talented engineers and skillful workers, we always provide our customers the products with good quality, competitive price, fast turnaround and reliable after sales service.
We own the specialized export company - Zhuzhou ZZ Import and Export Co., Ltd. Our products are exported to USA, Europe, etc. And got trust from our customers. Along with our company growth, we hope to build business with more company abroad.
My company export more than USD5, 000, 000 every year, have more than 300 cusotmers and many customers long term cooperation.
We ensure, based on my company high quality and service, you will never regret to choose my company.
We are waiting for you.
