| Price: | US $ 5000-7000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Scope of application:
Mainly used for toys, clothing, textiles, footwear, food and other industries, used to detect mixed or lost in raw materials or products in the broken needle, wire and other iron-containing metal.

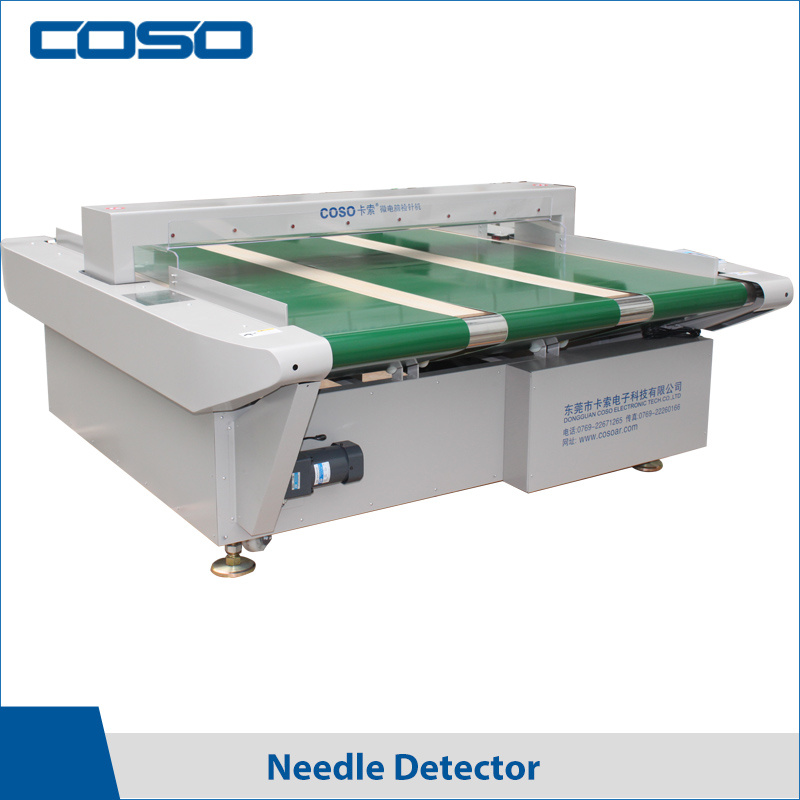

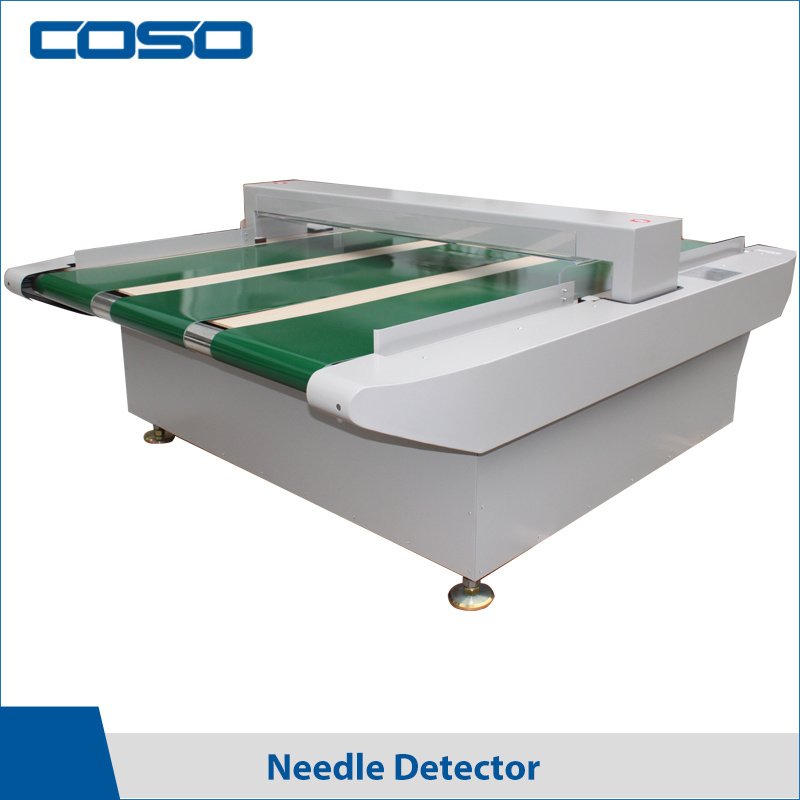

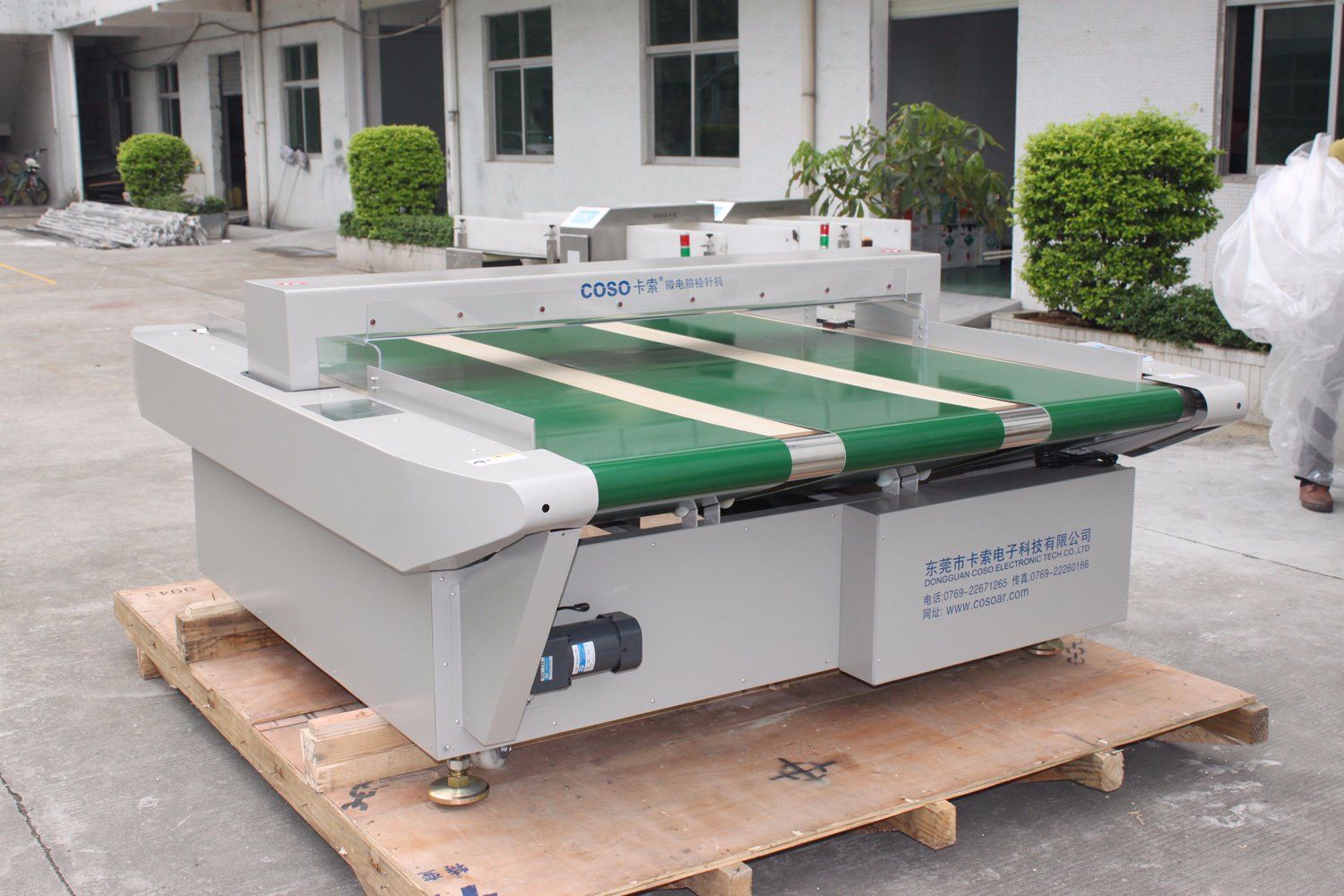

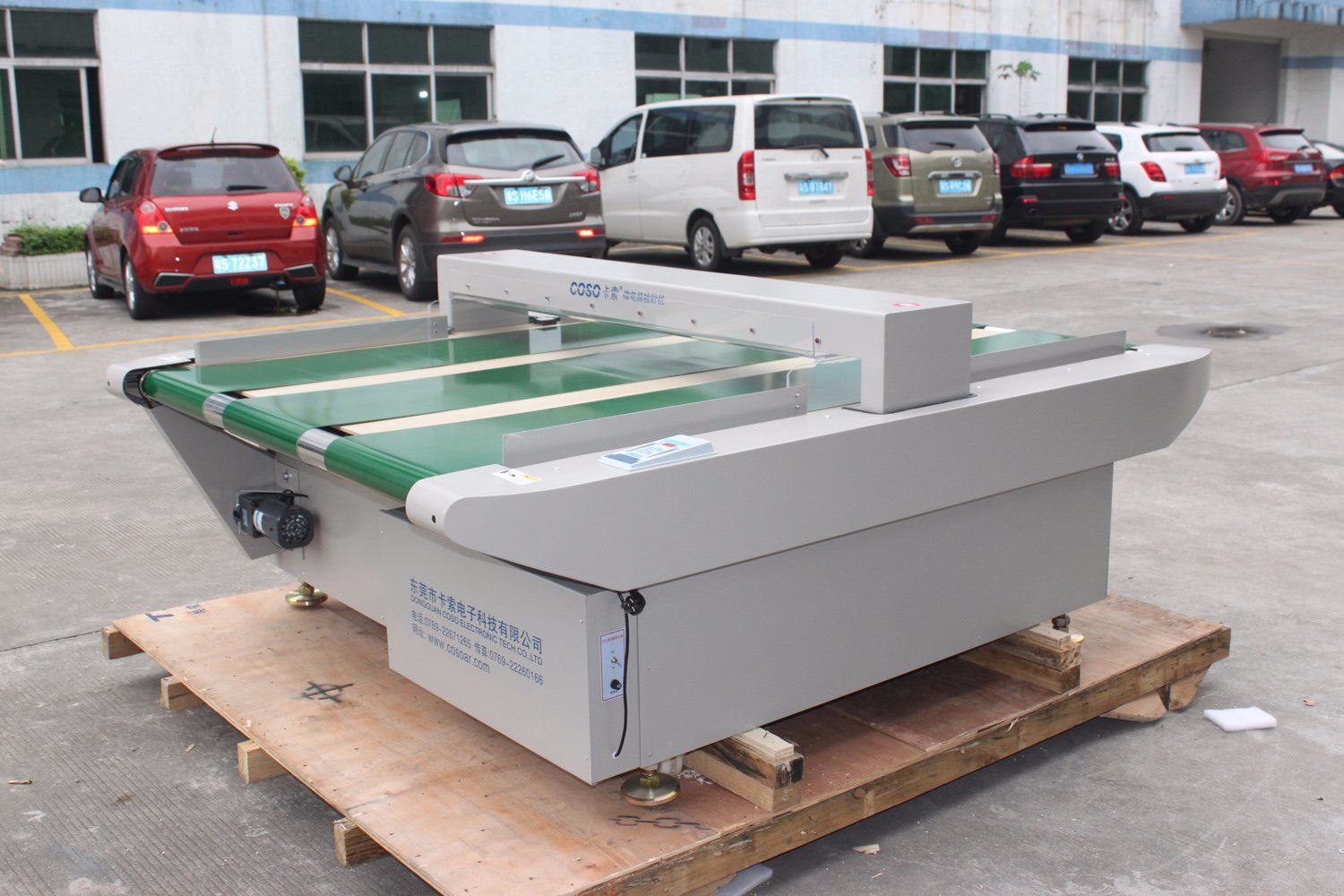

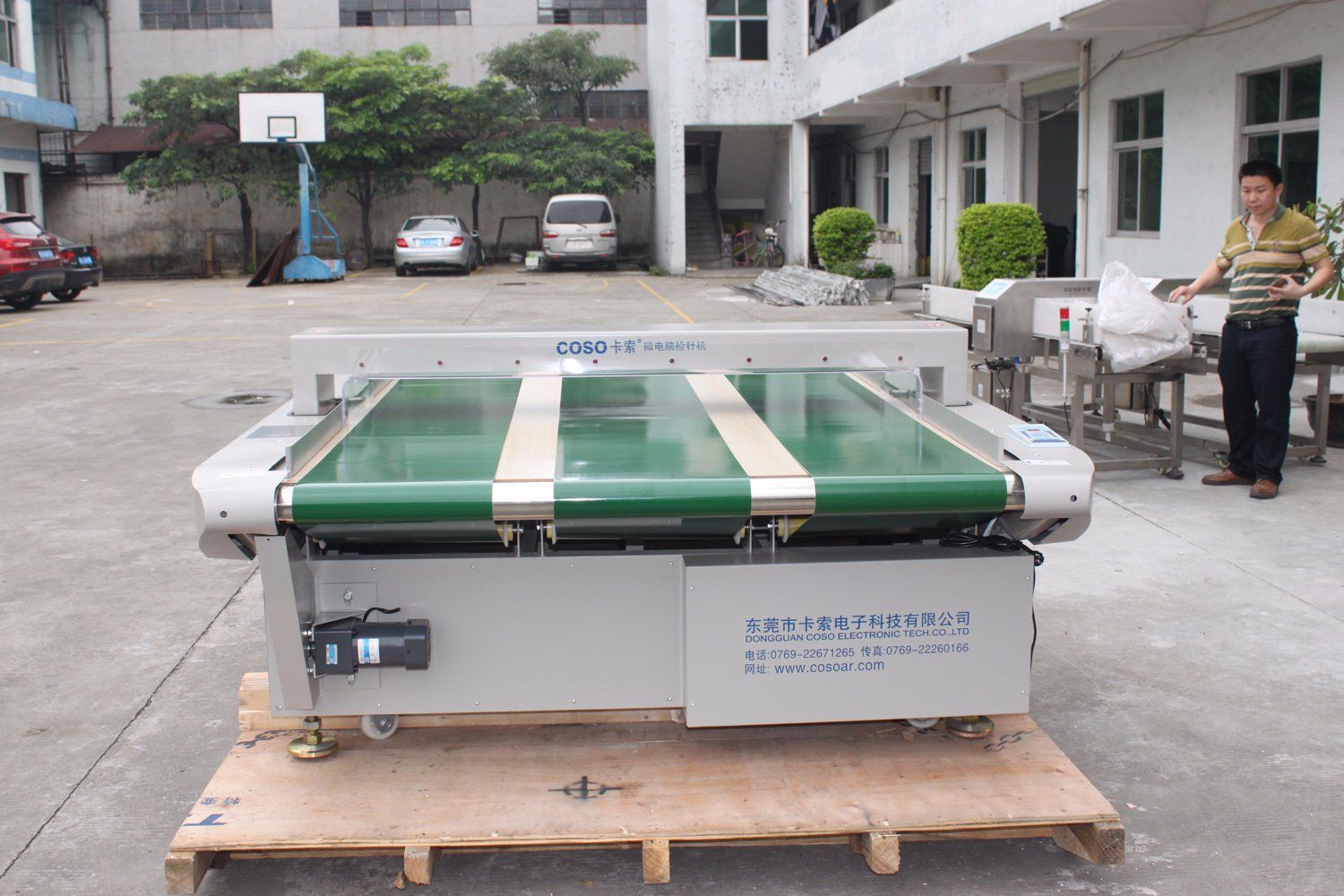

Features:Needle metal detector machine for garment factory
1. The latest development of the chip, high performance and high reliability;
2. High sensitivity, high anti-interference ability;
3. From the data acquisition to the motor control are used digital signal processing (DSP), highly intelligent;
4. Easy to use, automatic data processing and preservation, each boot can keep the shutdown settings;
5. Self-developed high-frequency switching power supply, suitable for strong ability;
6. The use of integrated design, optimize product design, reduce the number of components, by the computer to replace the complex electronic components, the failure rate doubled;
7. by the computer to precisely control the timing of the motor to extend the life of the motor;
8. Accurate count, qualified, defective, total;
9. No one is operating automatically after the shutdown.
SPECIFICATIONS:
Model | Detecting area | Detecting Sensitivity | Power Supply | Power Consu-mption | Dimension(mm) L×W×H | |
Width | Height | |||||
SMC6010A | 600mm | 100mm | Fe. BallΦ≥0.8mm | AC220v±50HZ | 60w | 1820×1050×900 |
SMC6012A | 600mm | 120mm | Fe. BallΦ≥1.0mm | 1820×1050×920 | ||
SMC6015A | 600mm | 150mm | Fe. BallΦ≥1.2mm | 1820×1050×950 | ||
SMC6020A | 600mm | 200mm | Fe. BallΦ≥1.5mm | 1820×1050×1000 | ||
SMC6025A | 600mm | 250mm | Fe. BallΦ≥1.0mm | 1820×1050×1050 | ||
SMC6030A | 600mm | 300mm | Fe. BallΦ≥2.5mm | 1820×1050×1100 | ||
Detecting Method | Magnetic induction | |||||
Sensitivity Adjustment | 10steps | |||||
Alarm Method | Buzzer, 8 indicators for steel locating | |||||
Belt Speed | 25m/min | |||||
Net Weight | 180kg | |||||
| Prod Model: | SMC600B |
|---|---|
| Warranty: | 12 Months |
| Type: | SMC600b |
| Product Name: | Needle Metal Detector Machine for Garment Factory |
