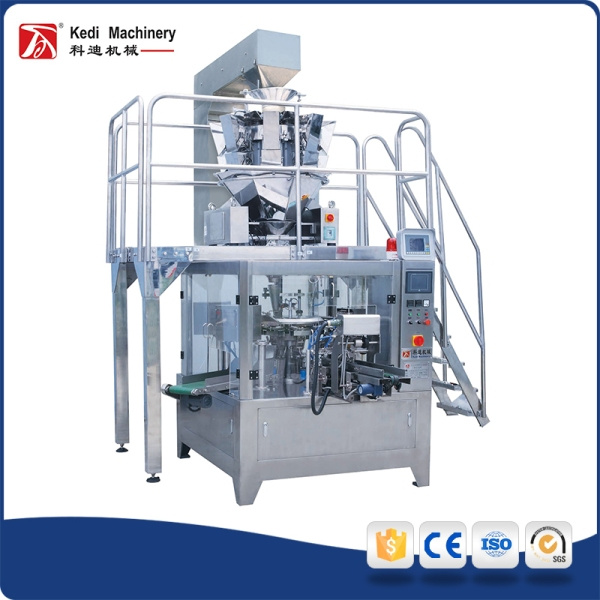

Cashew Nuts Doypack Rotary Packing Machine with Zipper Pouch
Price: |
US $ 39000-45000/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Prod Model: |
GD8-200B |
Working Position: |
Eight-Working Position |
Pouch Pattern: |
Pouch with Zipper |
Machine Material: |
304 Stainless Steel |
Voltage: |
380V 3phase 50/60Hz |
Compress: |
0.6m3/Min |
Automatic Grade: |
Automatic |
Driven Type: |
Electric |
Material Type: |
Solid |
Forming Species: |
Rotary Packing Machine |
Packaging Type: |
Stand -up Pouch with Zipper |
Packaging Material: |
Laminated Film/PE/Ppetc |
Product Description
GD8-200B Nuts Rotary Packaging Machine For zipper pouch ShowGD8-200B Nuts Rotary Packaging Machine Description1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel and according with the request of GMP.Application:The Granules packaging machine is suitable for granule material,such as Melon seeds,Nuts,Candy,Raisins,Chinese wolfberry,red dates,Potato chips,cookies and other solid material automatic packing.Main Technical Parameters:Working position | eight-working position |
Bag material | Laminated film/pe/pp |
Bag pattern | Flat pouch,Stand-up pouch with zipper |
Max filling weight | 10-5000g |
Filling accuracy | 0.5-1.5% |
Bag size | W:100-200mm L:100-350mm (could be customized) |
Speed | 10-50bags/min |
Voltage | 380v 3phase 50/60hz |
Total power | 5.5KW |
Compress air | 0.6m3/min |
Company's Honors
FAQSQ1:Are you a trading company or manufacture?A1: Kedi is a professional manufacturer with experience over 20 years. Now we have new factory in Wenzhou .Your order will be controlled from very beginning to the last. Q2: What is your delivery time?A2: Normally 30-45 days upon order confirmation. Q3: What is your packing pattern?A3: Special export wooden packing Q4: How about your service? A4:Engineers available to service machinery overseas Q5: How about your product?A5: Kedi has the standard production and complete quality control system to ensure high quality products. Our products get ISO. CE.SGS.IAF Q6:How to choose the machine type for our bags? A6: Pls support us the following information about the bag and the food. 1) bag pattern 2)bag size 3)the filling weight or volume 4)material of food: powder/liquid/paste/granular/massiveness 5)sample bags or picturesSUPPORT1.Round the Clock Customer Service Centers 2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas. 3.Expert Team, Technical Support 4.Abundant Spare Parts, Swift Storage Center If you have any other questions, please contact us !
