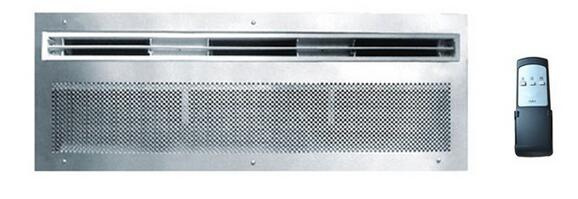

Ceiling Wind Cooling Air Curtains by Recessed Type Design
| Price: |
US $ 240/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
WINTECO air curtain is a product used to prevent air or contaminants from moving from one open space to another. Air curtain can create a continuous broad stream of air circulated across a doorway of a conditioned space. It reduces penetration of insects and unconditioned air into a conditioned space by forcing an air stream over the entire entrance. The air stream layer moves with a velocity and angle such that any air that tries to penetrate the curtain is entrained, so it is widely used in commercial and industrial places where doors are required to stay open such as hypermarket, shopping malls, shops, cold rooms, loading docks.
WINTECO cross-flow air curtain is with compact design, with one motor in the middle and two fan wheels at side. the air speed can reach 12m/s, and installation height up to 3 meters, suitable for most installation occasions.
WINTECO centrifugal air curtain is with stable high speed motors, installed with at least two motors which creates very high air speed up to 16m/s. it can be installed in any occasions even commercial and industrial places which require high installation height and strong air.
Specifications:Model
name | Dimension | Power supply | Capacity | Air flow | Wind speed | Noise | N.W | G.W |
| (mm) | (V) | (Hz) | (W) | (m^3/h) | (m/s) | dB(A) | kgs | kgs |
| DFM3509HY | 900*340*230 | 220 | 50/60 | 322 238 186 | 1020 | 15 12.5 10 | 53 | 18.0 | 20.0 |
| DFM35012HY | 1200*340*230 | 220 | 50/60 | 419 285 218 | 1360 | 54 | 22.0 | 24.0 |
| DFM35015HY | 1500*340*230 | 220 | 50/60 | 536 381 291 | 1700 | 56 | 28.0 | 30.0 |
Features:
The stainless cover is made from high strength powder-coated metal, working well in various environment.
The air wheel is made of high-strength fiberglass plastic material,very strong and durable and stable to run.
The high performance pure-copper motors can work 5000 hours continuously without any defects, it creates high speed air fkow, to make the air curtain as an invisible door.
Thank you for your support to WINTECO products, please contact us freely for any more information.
| Prod Model: |
DFM3509HY |
| High Air Speed: |
Powerful Air Curtain |
| Market: |
Global |
| Type: |
Air Curtain |
| Operating Voltage: |
230 VAC |
| Mounting: |
Ceiling Mount |
| Certification: |
CE |
| Condition: |
New |
| Application Fields: |
Commercial |
Winteco Industrial Co., Limited is a dynamic and professional manufacturer and exporter who is specialized in refrigeration parts like evaporator, condenser, heat exchanger coils, and also commercial and industrial appliances like mist fan, fog machine and air curtain. We are dedicated to creating a comfortable environment for people all over the world with our products.
We hold various certificates and we export to over 80 countries and regions. Winteco is committed to supplying our clients with quality products at fair prices. We can produce products according to clients' product diagrams.
Our staffs always act fast to your requests and suggestions. More importantly, we provide warranty on all of our products and offer certain percentage of free spare parts in the orders. We care about our clients and end-users and we are always open to suggestions in how to improve our products and service.
Winteco wants to help your business and maintains a well-qualified staff to serve you. Thank you for your interest and support! Hope Winteco will be your first choice! Welcome to visit our production site.
