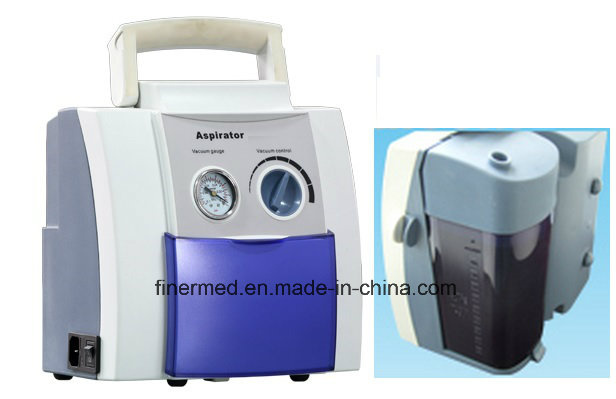

FM-12 Child portable Suction Aspirator for pediatric
Introduction
1.1 Notes on operating instructions
These operating instructions contain important notes on how to operate the FM Series Aspirator Safely,correctly and effectively. Their reading helps to avoid risk, and also to reduce repair costs and down-time. That increases amongst other things, the reliability and service-life of the device. These operating instructions serve not only for new operating personnel to be instructed in its use, but also for use as a reference manual.These operating instructions must always be kept available near the device.Care and safety inspections in conjunction with professional execution provide for operational safety and readiness for use of your FM Series Aspirators and are therefore a must besides regular cleaning.Repair work and safety inspections may be carried out only by expert personnel authorized by. By applyingonly original spare parts you will have the guarantee that operational safety, readiness for work and the value of your FM Series Aspirator will be preserved
The product FM Series Aspirator bears CE marking CE according to the EU guideline of the council for medical products 93/42/EWG and meets the basic requirements of annex l of this guideline
The quality management system applied at has been certified according to international standards EN ISO 9001 and EN ISO 13485.
Prior to start-up please peruse chapter 2.0 "for your safety", in order to be prepared for any possible dangerous situations
These operating instructions correspond to the design of the FM Series Aspirator and the status of basic safety engineering standards on going to press
Reproduction of these instructions - even in part - only with the written permission of
Subject to alterations and changes These operating instructions are valid for the following devices:
FM-12 Child Aspirator 1000ml Secretion container
FM-18 Aspirator 1000ml Secretion container
FM-24 Aspirator 1000ml Secretion container
Please store this document near the device for later use!
1.2 Function
The FM Series Aspirator is a very handy small suction unit. It is driven by an electromotive,maintenance-free diaphragm-type pump. During operation the pump generates a vacuum within the hose system and the collection jar. Thus sucking off secretions or fluids (e.g. By means of a suction catheter). The fluid is gathered in the collection jar. A mechanical overflow safety (on the inner part of the collection jai lid) avoids penetration of secretion into the pump head. The final vacuum and. Following, the air-flow rate can be adjusted by means of the fine control and the vacuum-gauge. The unit is equipped with a rechargeable battery (accumulator). Integrated microprocessor-based technology assures safe charging of the battery; overcharging is thus impossible. An over temperature stop controlled by electronics avoids overheating of the unit. A disposable bacterial filter plate integrated in the lid of the collection jar prevents bacteria and liquid from penetrating into the pump.
For FM Series:
The reusable secretion container is connected to the pump housing via direct-docking, without any pedestrian hose system. Only the suction hose has to be plugged in by the user.Abacterial filter, located in the lid of the secretion container, avoids entering of bacteria and liquids into the pump interior. A mechanical over suction stop integrated in the container lid additionally avoids accidentally absorption of secretion into the pump head. FM Series Adoption ratings protection Respond to prepare the control stop the compressor revolves, exceeding the sum settle the machine seals to block up
