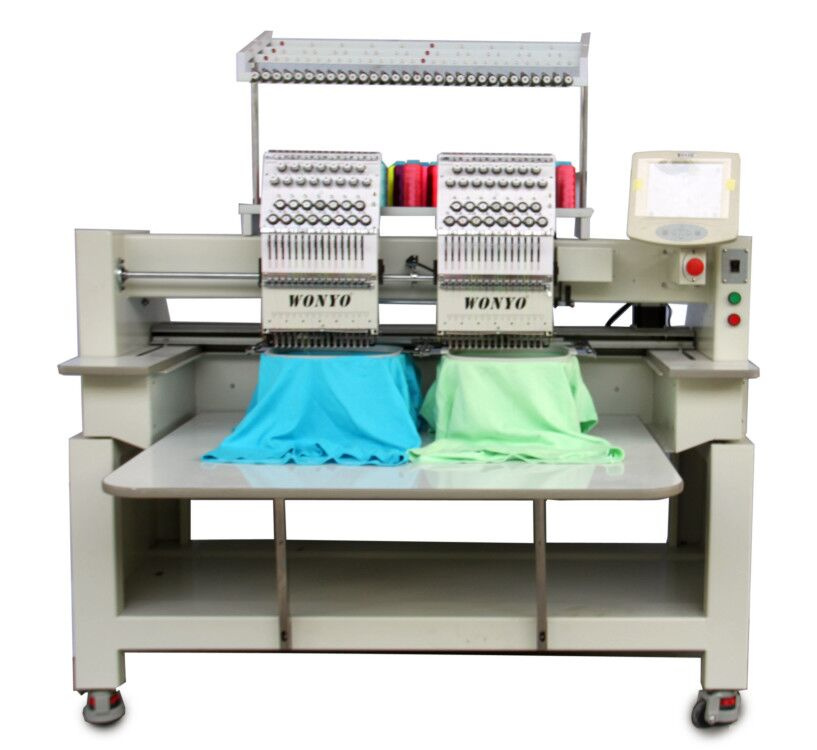

China cheap 2 Heads Cap Embroidery Machine with Topwisdom spare parts.WONYO newest 2 heads embroidery machine with 10 inch touch color screen.Embroidery belt import Italy quality brand belt,Rotory hook from japan.And needles from garmeny.
| Main parameters |
| Function | cap embroidery, t shirt embroidery, flat embroidery... |
| Model# | 902C/1202C |
| Speed | 1000-1200 stitches per minute |
| Main Motor | Panasonic Servo Motor |
| XY Motor | Stepper motor |
| Digitizing software | Dahao |
| Embroidery Design format | DST, DSB |
| Control Board | Topwisdom, 8''/10" LCD touch screen |
| Language | English, French, Spanish, Portuguese, Arabic... total 12 languages |
| Voltage | AC110-220V, adaptable for any volatge |
| Power | 50-60HZ |
I. Main features of the embroidery machine.1. Suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 RPM
5.270° Wide cap frame unit
6.8" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 20, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering
II. Full coler control panel1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available
III.Frames/hoops1 Sash Frame: 244cm x 48cm
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
IV.Cap attachment of each head1pc cap driver,
1pc cap hoop station,
4pcs cap hoops
V.The Main Parts of Embroidery machine 2 heads1. Japan Rotary Hook
2. Japan Bobbin case
3. Italy Belt
4. Japan NSK bearing
5. Japan Cherry Gear
6.Japan Nemicon Encoder
7.German Needles
Other parts included: Extended table top for Flat embroidery,
Standing table with Wheels ,
operation Manual,
Tool Kit,
8 GB USB driver,
Bobbin Winder And so on
Other Free gifts :1) woonden case &vacuum package,
2) free digitziing software,
3) a whole set free easy damaged spare parts for your future replacement ,
4) 50 free designs for testing your machine
| N | HEAD | EMBROIDERY SPACE(L*W)
| HEAD
INTERVAL | LENGTH(mm) | WIDTH(mm) | HEIGHT(mm) | WEIGHT(kg) |
6\9\12\15
| 2
| 400*450
| 400
| 1530
| 1270
| 1500
| 450kgs |
