Prod Model: |
WY1201CS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
24 Months |
Main Motor: |
Panasonic Servo Motor |
Xy Motor: |
Stepper Motor |
Rail: |
Linear Rail |
Belt: |
Italy Brand Belt |
Bobbin Core: |
Aluminum Bobbin Core |
Embroidery Size: |
360*510/360*1200mm |
Control Panel: |
7 Inch Dahao/Topwisdom LCD Screen with 12 Language |
Needles: |
Groz-Beckert Needles |
Knitting Product Type: |
Hat |
Knitting Style: |
Flat |
Knitting Method: |
Single |
Computerized: |
Computerized |
Certification: |
ISO9001: 2000 |
Condition: |
New |
Type: |
Embroidery Machine |
Knitting Machine Cut: |
Wy1201CS/Wy1501CS |
Product Description

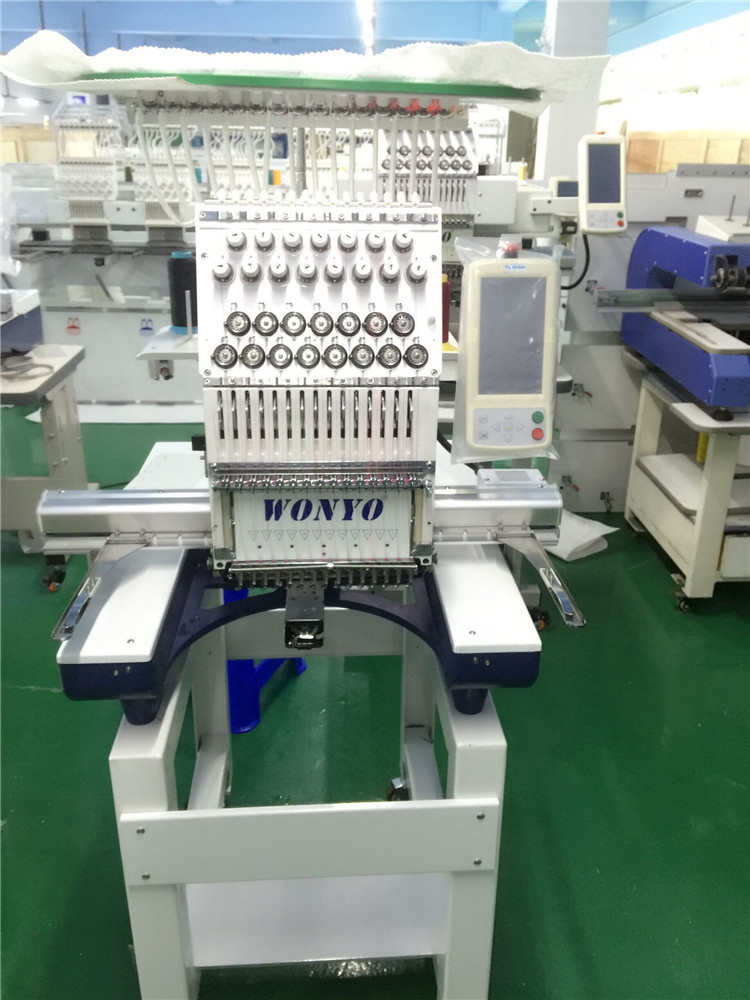

China Sewing and Embroidery Machine Single Head for Small Business in Uganda
I. Specifications:Model | WY1201CS/WY1501CS |
Head number | 0 mm |
Needle number | 12/15 colors |
Max Speed (rpm) | 1200 rpm |
Stitch Storage | 20,000,000 Stitches |
Pattern Storage | 200 PCS |
Dimension(mm) | 830*840*950 mm |
Functions | Cap & T-shirt/Garment & flat & towel & pillow & dress & 3d |
Optional device | sequin; cording; bead; boring; shoes/bags |
II. FEATURESA. Brand named WONYO
B. Automatic thread trimmer
C. Maximum speed 1200 SPM
D. 270 degree Wide cap frame unit
E. Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Preview design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V-250V available
M. Built-in bobbin winder free
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
R. Working area 510*(x) 360(y) mm, or 510*1200mm
S. Main board integrated into control panel protecting from dust or external force.

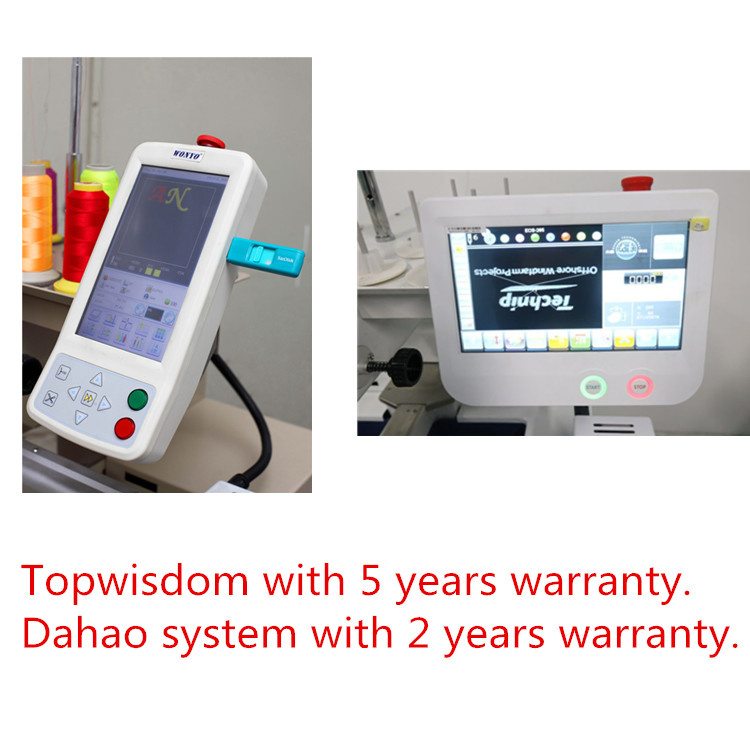

7" Colorful touch screen
III. Compact control panal
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. 12 languages available like English, French, Spanish etc.
E. Frame-moving keys, Manual Trimming
F. DOT key to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles
K. Lay-out of keys on panel is user-friendly.
L. Built-in Network
M. control system can be updated easily
IV. Accessories(1) Hoops/frames included A. 2sets x Shirt Front Round Hoop 9 cm (3.5")B. 2sets x Shirt Front Round Hoop 12 cm (4.7")C. 2sets x Shirt Front Round Hoop 15 cm (5.9") D. 2sets x Shirt Front Round Hoop 19 cm (7.5") E. 2sets x Jacket Back Square Hoop 30 x 30 cm (12" x 12")F. 1 X Sash Frame 56 X 38 cm (22" X 15") (2) Cap attachment IncludedA. 2pcs x cap ring per headB. 1set x hoop station + cap driver (3) Other accessories includedA. 1set x Machine TableB. 1set x Operation manualC. 1box x Tool kit and spare parts
