Class N Benchtop High Pressure Steam Autoclave Sterilizer Machine
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CLASS N-AAS-23L |
| Function: |
Laboratory Instruments & Consumables Sterilization |
| Sterilization Level: |
Class N (Non Vacuum) |
| Controlled Unit: |
Microprocessor Controlling All Operational Cycle |
| Sterilization Temperature: |
121°c~134°c |
| Sterilization Tray: |
Two Layers |
| Printer & Record: |
Be Optional |
| Failure: |
Alarm & Display Detailed Error Code |
| Double Door Locking Device: |
Yes |
| Electronic Circuit Safety System: |
Yes |
| Pressure Safety Valve: |
Yes |
| Theory: |
Pressure Steam |
| Type: |
Pressure Steam Sterilization Equipments |
| Certification: |
ISO13485 |
| LCD Display: |
With LCD Display |
| Ultra High Temperature Alarm: |
Ultra High Temperature Alarm |
| Sterilization Information Recording And Printing: |
Sterilization Information Recording and Printing |
| Material: |
Stainless Steel |
| Electric Tension: |
AC220V 50Hz 2.1kw |
Product Description

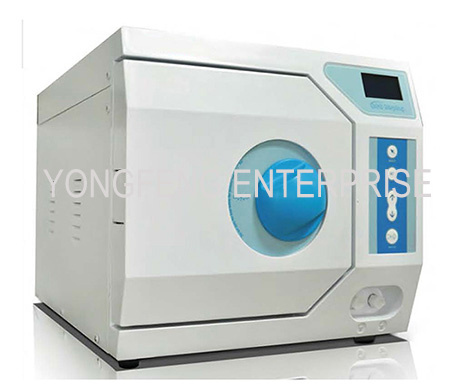

23 Liter Class N Benchtop High Pressure Steam Autoclave Sterilizer Machine
Full Automatic LCD Display
General Descriptions
18 and 23 liter benchtop autoclaves are available as class N and class B. The B class autoclave meets the European standard EN13060. These autoclaves are ideal for busy dental, medical, veterinarian, beauty and laboratory purposes.
Performance specifications
♦ Fully automatic benchtop autoclave with pre set programs. Selectable programs are available for different kind of loads.
♦ Liquid sterilization program is also optional.
♦ Choice of language settings are including: English, Spanish, German and Chinese.
♦ Stainless steel grade # 304 chamber, safe, reliable and wear well.
♦ Easily accessible water tank.
♦ In built independent rapid steam generator ensures quick sterilization cycles.
♦ It operates automatically with 134ºC and 121ºC sterilization temperatures.
♦ With large LCD screen, displaying Sterilization Cycle Progress i.e. temperature, pressure, time, process alert and instrument conditions. Friendly user interface.
♦ Fail alarm indicates cycle failure and detail error code.
Multiple Security Protective Devices
♦ Double door protection system prevents the cycle from starting if the door is not correctly locked. This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.
♦ Pressure safety valve prevents over pressure in the chamber and steam generator.
♦ The power is automatically cut off if a short circuit or electrical fault occurs.
♦ Able to detect and identify the exact cause of any problems, and to issue a specific error code to the operator.
♦ Water level main switch in the main tank controlling the min and max water level.
Technical Data
Model | CLASS N-AAS-8L | CLASS N-AAS-16L | CLASS N-AAS-18L | CLASS N-AAS-23L |
Volume | 8L | 16L | 18L | 23L |
Chamber Size | Φ 170× 320mm | Φ 230× 360mm | Φ 247× 350mm | Φ 247× 450mm |
Power | 1400W | 1900W | 2100W | 2100W |
Net Weight | 30Kgs | 43Kgs | 45Kgs | 48Kgs |
Documentation
1.External printer is optional
2. USB port: it is used for connecting a USB stick, all sterilization data are automatically written in the USB stick and can be read directly in any PC and stored electronically.
3.Internal memory: the last 20 cycles can be automatically stored in the autoclave system, which can be print out at any time.
Optional
1.Printer
2.USB port and USB stick
3.Double door locking device
4.Independent drying program
