CNG Mobile Refuell Station
| Price: |
US $ 31000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C |
| Prod Model: |
CNG filling station |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
870X400X1750 |
| Certification: |
ISO9001: 2000, OIML, Atex, IFSF |
Product Description
1,product presentation
This mobile stations is composed of two container group, one compressor group, the other is a high pressure gas (CNG) transportsemitrailer container group. Compressor container is composed of compressor, gas discharge machine , the gas bomb group, gas sales machine, etc. This CNG gas station include all functions of fixed gas station and also has the superiority of flexibility and less investment, quick effect, convenient aerated, wide applicable scope.
Host compressor is hydraulic piston compressor type, driven by the hydraulic cylinder piston compressor components, different from the traditional mechanical compressor. Such agencies can effectively improve the economic benefit of running (energy saving: motor only 37 kw), and reduce the manufacturing cost, reduce wear traditional compressor, greatly improving the service life of the compressor.
Discharge gas and gas storage storehouse is a connection part between the trailer supercharging system and CNG . Through the pipe,the discharge gasmachine link the compressor and CNG trailer gas bomb group together . the door of CNG trailer open when the system is working.
Supercharging system warehouse wall is builded by rock wool, flame retardant fiber cloth, porous plate noise insulation structure design, the lining of the overall thickness is 70 mm. Supercharging system warehouse internal fixation of hydraulic pressure system, set up four open doors on both sides there is walking channel, it is advantageous for the equipment use and maintenance.
Control and rest warehouse there have installed control cabinet and the rest sofa, on the wall there is a window. can observe thepressurization equipment through the window . Control warehouse wall set fire protection materials, increase the security of the system. Control system installed in a riot control cabinet, electric equipment adopt explosion-proof equipment, can fully meet the requirements of CNG stations.

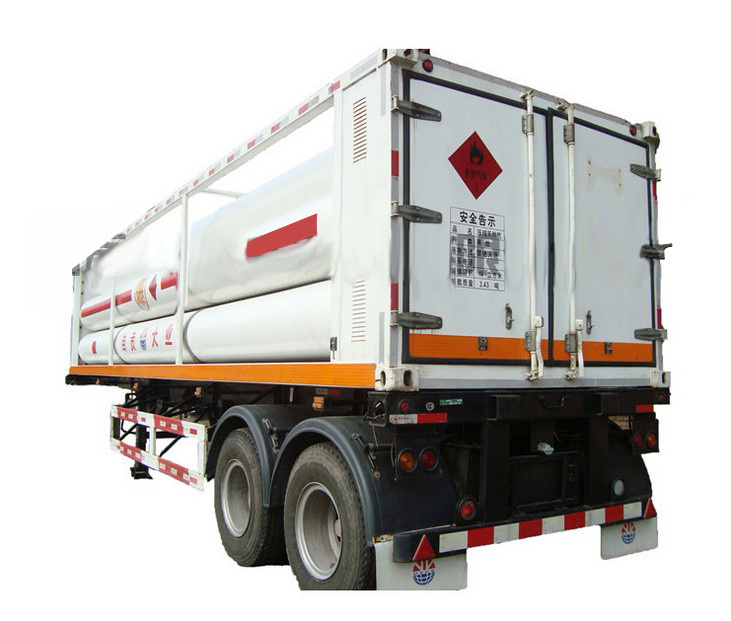

High pressure gas (CNG) transport semi-trailer is essential equipment of mobile stations, is a gas source of mobile stations. And all being back and forth between the mother CNG station and small CNG station transport compressed natural gas. Generally a mobile stations equipped with at least two sets of high pressure gas (CNG) transport semi-trailer.
CNG filling time is about 3-6 minutes, 20 MPA inflation pressure. Taxi as 80L cylinders can be filled 16 Nm3 gas takes three minutes, when use two sets dispenser , one hour can aerated about 40 taxis, thus CNG station an hour can refuel 640 nm3 gas.usually the bus contain 4 - 5 cylinders (320 - 400 L), one can fill 64 - 80 nm3 gas, 5 - 6 minutes (bus generally 35 nm3 gas consumption per 100 km), an hour can aerate for 10 bus ,so that, thisstation an hour can fill 800 nm3 / h of natural gas. So this mobile CNG stations daily can refuel for roughly 400 taxi or 100 bus .
LT-CNG charge post/discharge post
* Ambient Temperature: -45oC~55 oC
* Power: AC220V± 20% ((50± 1Hz))
* Flow rate: 4800 m3 /h(standard state)
* Mass flowmeter accuracy: ± 0.5%
* Metering accuracy: ± 1.0%
* Working pressure: 20MPa
* Density preset range: 0.5000-0.9999kg/m3
* Unit price range: 0~9999
* Single range: 1~9900.00
* Accumulative range: 0~9999999999.99
* Electronic Calibration.
* Printer(option).
* Fueling times limit function.
* Stop fueling by integer sale.
* Can set the decimal point for the display, so can be used in many country with different currency rate.
* Leaves the communication ports, so it canCommunicate with the gas station management system.
* Installation dimensions: 870× 400× 1750
|
NO. |
moRTel |
air RTemanRT
NM3/h
|
inlet pressure
Mpa |
RTischarge pressure
Mpa
|
rotate speeRT
rpm
|
MOTOR
POWER KW
|
control moRTe
|
1
|
RT-8/2-250
|
1200
|
0.2 |
25
|
740
|
280
|
PLC
|
2
|
RT-6/3-250
|
1200
|
0.3 |
25
|
740
|
280
|
PLC
|
3
|
RT-6.6/3-250
|
1500
|
0.3 |
25
|
740
|
315
|
PLC
|
4
|
RT-5.5/4-250
|
1400
|
0.4 |
25
|
740
|
280
|
PLC
|
5
|
RT-4/5-250
|
1300
|
0.5 |
25
|
740
|
250
|
PLC
|
6
|
RT-4.3/6-250
|
1550
|
0.6 |
25
|
740
|
280
|
PLC
|
7
|
RT-4.4/7-250
|
1800
|
0.7 |
25
|
740
|
315
|
PLC
|
8
|
RT-3.5/8-250
|
1600
|
0.8 |
25
|
740
|
250
|
PLC
|
9
|
RT-3/9-250
|
1500
|
0.9 |
25
|
740
|
250
|
PLC
|
10
|
RT-3.6/10-250
|
2100
|
1.0 |
25
|
740
|
315
|
PLC
|
11
|
RT-3.3/11-250
|
2000
|
1.1 |
25
|
740
|
315
|
PLC
|
12
|
RT-2.5/12-250
|
1700
|
1.2 |
25
|
740
|
280
|
PLC
|
13
|
RT-2.5/15-250
|
2100
|
1.5 |
25
|
740
|
280
|
PLC
|
14
|
RT-2.3/18-250
|
2200
|
1.8 |
25
|
740
|
315
|
PLC
|
15
|
RT-2.1/20-250
|
2300
|
2.0 |
25
|
740
|
280
|
PLC
|
16
|
RT-2.2/24-250
|
2900
|
2.4 |
25
|
740
|
315
|
PLC
|
17
|
RT-1.5/35-250
|
2600
|
3.5 |
25
|
740
|
250
|
PLC
|
18
|
RT-1.3/40-250
|
2700
|
4.0 |
25
|
740
|
280
|
PLC
|
