| Price: | US $ 5300/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | DW-L1610A |
|---|---|

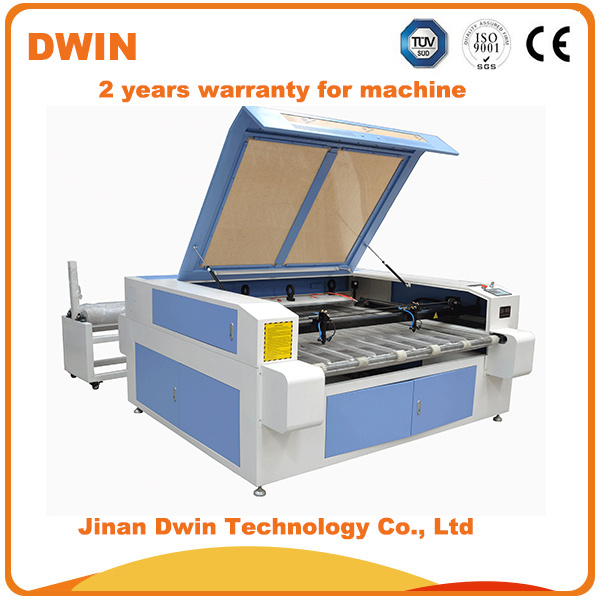

| Name: | Auto Feeding Laser Cutting Machine |
| Certification: | Ce, ISO, FDA |
| Laser Power: | 80W, 100W, 150W, 260W |
| Cutting Thickness: | 0-35mm |
| Cutting Area: | 1600*1000mm/1400*1000mm or Customized |
| Resetting Positioning Accuracy: | 0.01mm |
| Motor: | Servo or Stepper as Your Option |
| Table: | Honey Nest or Blade Table |

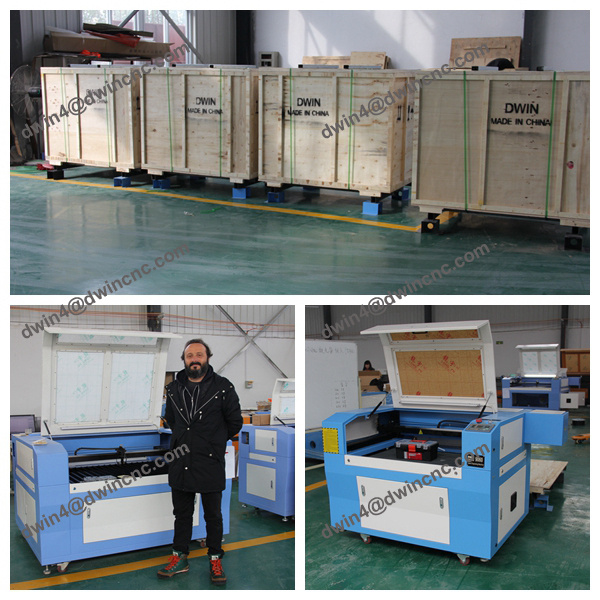

| Machine Package: | Veneer Case |
| Laser Tube: | Reci/Yongli/Efr etc |
Characteristics:
1. Fast curvilinear cutting function: it can cut via any curve fast continuous cutting, the laser heads moving in beautiful arc just evoke your imagination of top grade racing car.
2. To fully support design software, such as CAD, Coreldraw, Photoshop, friendly man-machine interface, live close to the industry needs.
3. Multi-document function: SC series equipment can store as many as 256 working documents, in the case of without the computer, the user can select files in the engraving machine, the mass production of 256 different products.
4. All-optical isolation system with high speed differential input and output circuit design, long distance transmission signal without distortion, strong anti-jamming capability, system has realized the no.12 working state output, state 16-way input, to dock with the user production site easily.
5. Large-format laser cutting incision smooth fine, meet the blanking, machining the whole piece of cloth.
Machine Parameter
| No. | Description | Machine parameter |
| 1. | Machine model | DW-L1610A |
| 2. | Laser medium | Co2 gas |
| 3. | Working area | 1600*1000mm |
| 4. | Working table | B type mesh belt |
| 5. | Laser power | 80W/100W/130W(optional) |
| 6. | Power Supply | 220V/50Hz/60Hz |
| 7. | Min line width | ≤0.15mm |
| 8. | Positon accuracy | ±0.05mm |
| 9. | Repetition accuracy | 0.02mm |
| 10. | Cutting speed | 700mm/s |
| 11. | Guide rail | Hiwin from Taiwan |

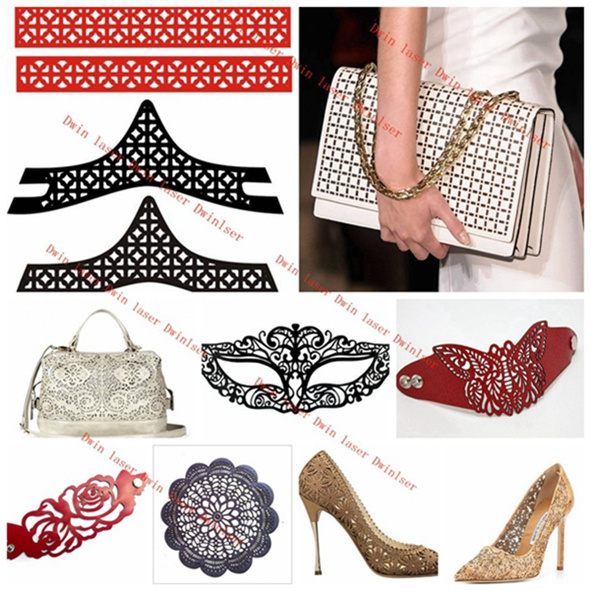

Applicable materials
genuine leather, artificial leather, soft leather, decorative leather, packaging leather. Etc all kinds of leather, leather materials, pure cotton, real silk, all kinds of chemical fiber, cowboy, and so on. All kinds of textile materials or non woven material.
Typical case: clothing. Footwear, toy, luggage, wild camp, car seat cut, such as the car chair affixed cloth embroidery, special shaped trademarks, airbags, such as laser cutting, garment leather carve patterns or designs woodwork hollow cut.
