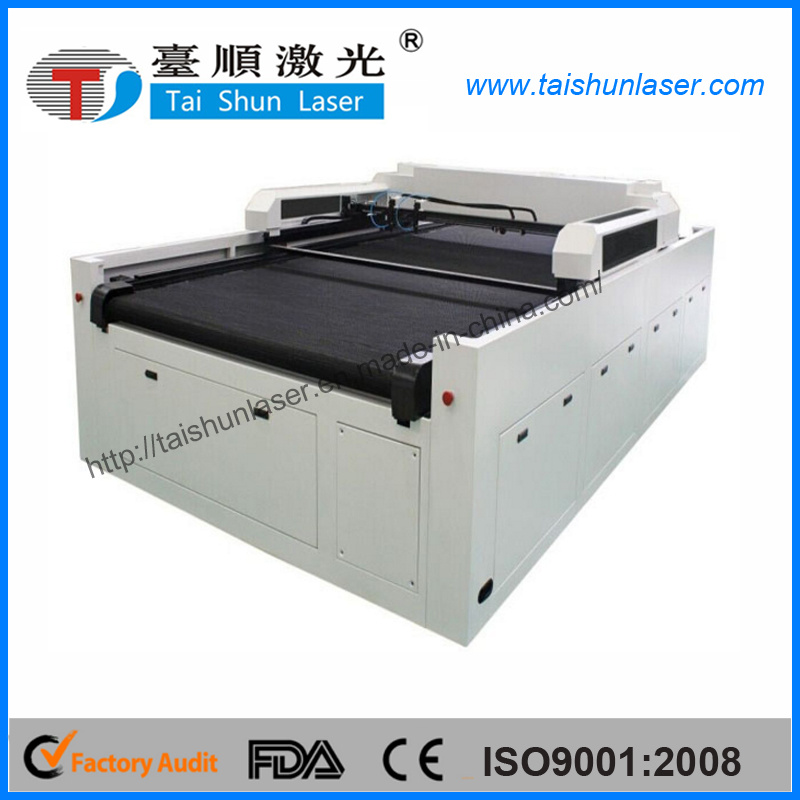

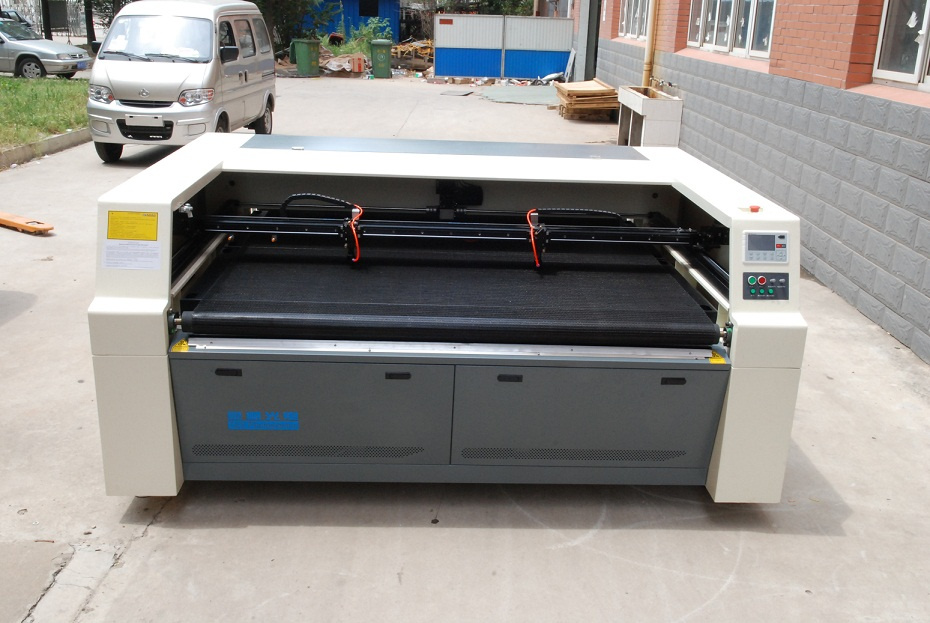

CO2 Laser Cutting Machine for Silicone Circuit Board

Prod Model:	TSYQ180100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laser Type:	CO2
Application Area:	Car Accessories, Shoe, Home Textiles, Garments
Application Material:	Fabric, Silicone PVC, Non-Woven, Leather
Power Supply:	AC220V+-5%50Hz
Graphic Format Supported:	Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp
Cutting Area:	1800mmx1000mm
Output Power:	60W
Cutting Speed:	Adjustable
Working Table:	Honeycomb Working Table
Guarantee:	One Year Free Maintenance

Product Description

Feature:
1.Humanized and most modernized design of appearance reflects caring idea of Tai Shun Design department

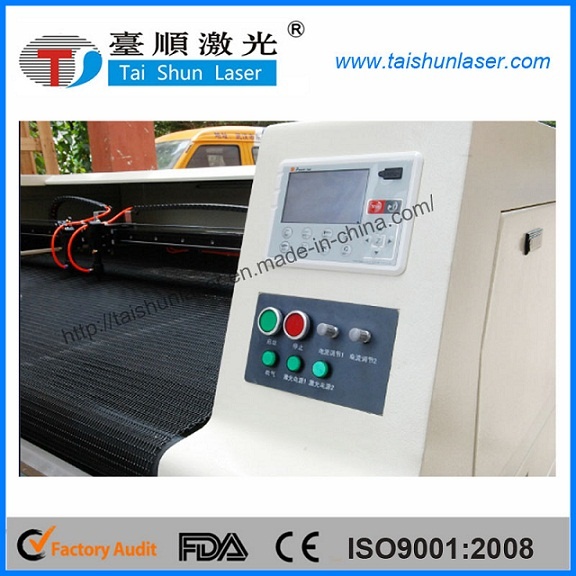

2.Advanced DSP control system and special motion control ship make the machines cut curve continuously
and rapidly,the selection function of the shortest path makes efficiency higher.

3.All machines are configurated with U-disk offline control system,so it is more simple and easier to operate.

4.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.

5 Strong steel frame structure body makes the engraving process stable with no moving or deformation

6,Honeycomb working table with negative pressure adsorption function can cut long size fabric continuously and to impress you, thus the fabrics still kept flatly and smoothly.

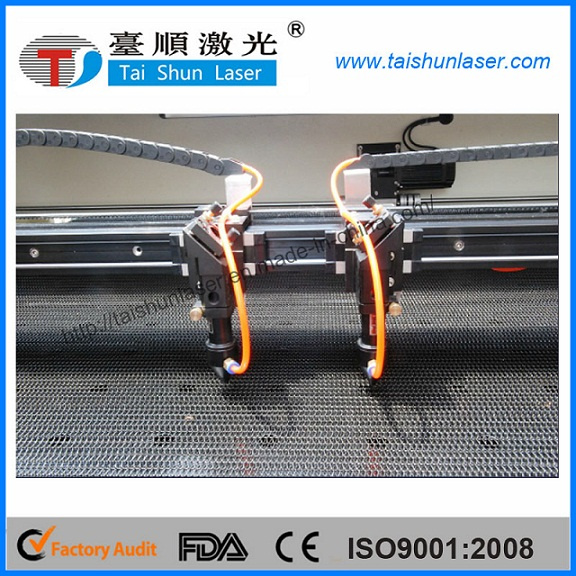

7,The following-up fume extractor system is going with laser head to save power consumption and good fume chasing effect.

8  The stepper motor guarantees cutting and engraving smooth.

9  Singapore mirrors and lens, guarantee the powerful cutting strength and correct work.

Main boday shipped:

1). 1 × 60watts Co2 Laser tube (Installed in the machine).

2). 4 × Reflecting Mirrors + 2× Focusing Lens (Installed in the machine).

3). 1× 3000W Industrial Water Chiller

4). 1× conveyor working table OR 1× Honeycomb table

5). 1× Air Compressor + 2× Exhaust blower

6). 1× USB cable (Connecting PC and Laser)

7). 1× Manual (User-friendly User's Manual, Guiding video & Demo video.)

8). 1× Power cable(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world)

9). 1× Tool box

Technic parameter:

Model	TSC160300LD	TSC210300LD	TSC320600	TS160100LD	TSHY180100LD	TSHY180140	TSZD9050	TSZD15090
Working Area	1600mmx3000mm	2100x3000mm	3200x6000mm	1600x1000	1800x1000mm	1800x1400mm	900x500mm	1500x900mm
Laser power	80w	80w	80w	80wx2	80wx2	80w	60W	60W
Cutting Depth	Rubber 0-25mm
Engraving speed	0-1000mm/s adjustable
Cutting speed	0-600mm/s adjustable
Worktable	Fiex or conveyor or honeycomb work table
Resetting Positioning Accuracy	≤±0.01mm
Graphic format supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF,AI etc.
Software supported	Coreldraw, Photoshop, AutoCAD
Motor type	Stepper Motor
Cooling  System	Water pumb/Water chiller
Laser tube lifetime	EFR/SPT/SP laser tube :3500h      Reci laser tube:10000h
Power supply	220V±10% 50HZ or 110V±10% 60HZ
Main configuration	1x Laser tube
	1set x Reflector and lens
	1xWater chiller  1x air compressor  1x exhaust fan ,1x water pipe
	1x USB cable      1xcommunication cable    1x U disk
Optional  Devices	Rotary device :engraving Cylinder, Pen ,Glass Cup
	Red dot pointer, Auto Focus system
	Auto-feeding system
	Water chiller system
Consumable Parts	Laser Tube 80w/100w/130w ,reflectors and lens

Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.

  FAQ:
Q1.What's the guarantee for the product quality?
 We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.

Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.

Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months

Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.

Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing

Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.

Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.

Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.

Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.

Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.

Why choose us:
1.Supported by the government of Wuhan City
2.Has its own R & D center, update for technology
3.We are the manufacturer, our price are the most competitive!
4.With 20 years history on researching and producing all kinds of laser machines
5.Our company welcomes AGENTS all over the world

After sale services:
1.One year guarantee period for product quality.(man made damaged is negotiable).
2.Free design of fixtures as customers required.
3.Free training for machines installation and operation of the staffs.
4.Free samples marking of customer provided.
