Computerized Chain Stitch Multi-Needle Quilting/Sewing Machine for Mattress
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description

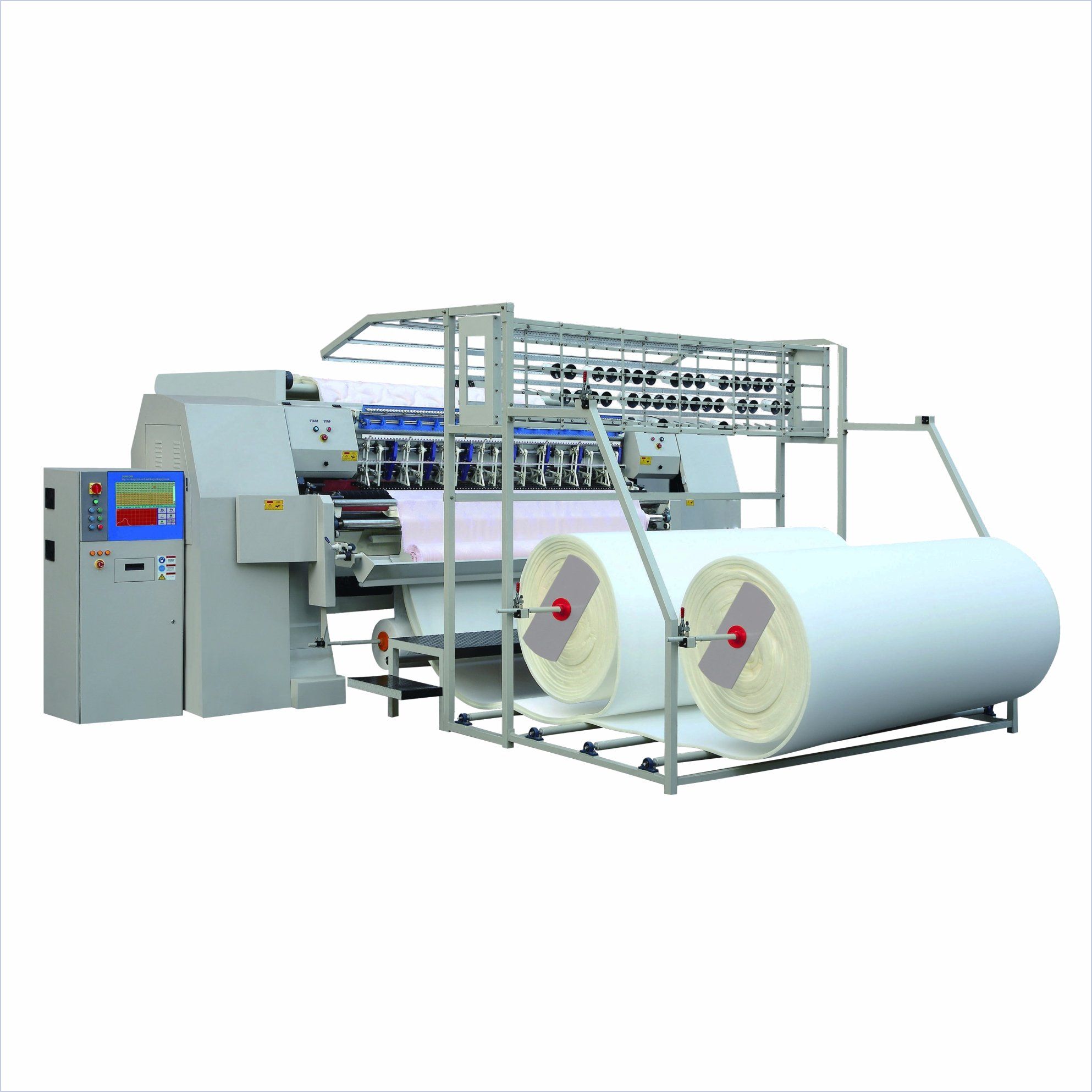

Computerized Chain Stitch Multi-Needle Quilting Machine (HY-W-JH)
HY-W-JH High Speed Computerized Chain Stitch Multi-needle Quilting Machine is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.
Technical Characteristics:
1. Needle bar and the press plate connected by cam-free double-swinging device, firm structure, reliable performance, without using lubrication oil.
2. Multi-span and independent patterns(360° And 180° Patterns are available)
3. Automatic pause in the case that the upper thread or the bottom thread breaks.
4. Automatic needle-lifting and CNC speed adjustment.
5. No need to adjust the press plate's position when the thickness of quilting materials varies.
6. Available features such as high rigidity, high speed of running, low noise.
7. New edition of CNC control system version 4.0, easy for learning.
8. CAD drawing method to ensure the precision of pattern and facilitate the operation.
9. Strong functions of pattern-combining and multi-span quilting to enable you to quilt different sizes.
10. Running state detecting and indicating in order to show how the machine works.
11. CE certificate.
12. Production management function, easy for checking the production cost.
13. Big touch screen.
14. USB interface.
Technical Specification:| Dimension (L*W*H) | 4940× 1200× 2020mm |
| Width of quilting | 2450mm |
| Space between needle rows | 50.8, 76.2, 127(5" ) 76.2, 76.2, 152.4(6" ) |
| Space between needles | 25.4mm |
| X-axis movement distance | 410mm |
| Thickness of quilting | ≤ 80mm (for all patterns) |
| Length of step | 3-8mm |
| Speed between production | 60-230m/Hour |
| Model of needle | 24/180 23/160 22/140 21/130 |
| Speed of main shaft | 200-990RPM |
| Powe | 7KW |
| Voltage | 380V /220V 50HZ/60HZ |
| Machine weight | 4800KG |

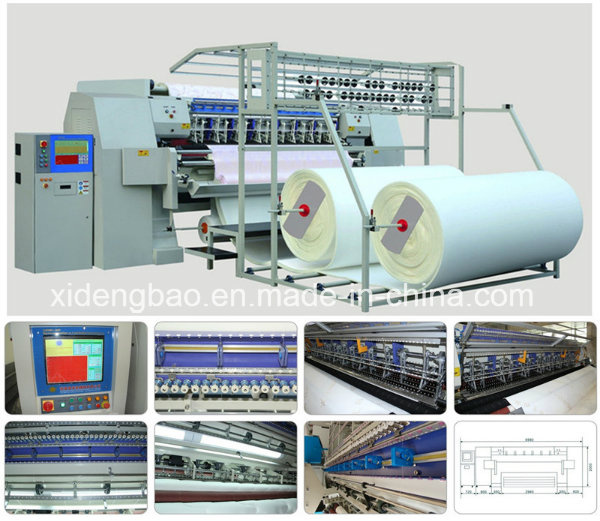

Product Pictures:
After-sale Service:
Company Exhibition:
