Container Foil Insulation Liner Woven Cloth Foil Container Lining
| Price: |
US $ 180/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal |
Name: Container Foil Insulation Liner Woven Cloth Foil Container lining
Description

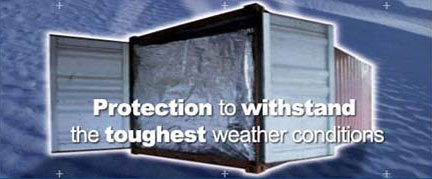

Container liner is a product designed to protect moisture and temperature sensitive goods
during transportation, this liner work as a moisture and temperature barrier by creating
an environment that significantly reduces temperature fluctuates thus preventing heat
damage by temperature spike and moisture damage due to condensation.
TDS| Name | Double Sided Aluminum Foil Woven |
| Appearance | Silver/customized |
| Structure | Aluminum foil/Woven/Aluminum foil |
| Roll Width(cm) | 100 to 150m |
| Roll Length(m) | 20m 30m 40m 50m 100m 200m |
| Grammage | 115gsm/ 140gsm (40g) |
| Water vapor Transmission | 0.015gsm KPA |
| Emissivity | 0.03-0.04COEF |
| Reflectivity | 96%-97% |
| Tensile strength(MD) | 200N/25mm |
| Tensile strength(TD) | 250N/25mm |
| Bursting Strength | 650N |
| Treatment | FR/UV/Perforated avaiable |
| Temperature resistance | 4hours no decladding -60°C/180°C |
Container Liner Size: | 20'GP | 6*2.35*2.35m |
| 40'GP | 12*2.35*2.35m |
| 40'HQ | 12*2.35*2.7m |
Who uses?
Wine
food and beverage
automotive
plastics
Chemicals
computing and electronics
Why use it?
Woven reflective Liner is effective, strong, durable, light weight, low cost
Heat insulation
Moisture proof
Thermal insulation
Vapor transmission
easy to install and value for money
significantly reduces temperature and moisture fluctuates during transportation
How it works ?
Without the proper protection of the ATL, cargo inside a container can be exposed to dangerous heat
penetrating in three ways: conduction, radiation and convection. Conduction occurs when the cargo makes
direct contact with the container walls. Radiation, or radiant heat, penetrates through the container wall
from the outside via infrared radiation whilst convection is the hot air circulating throughout the container.
How to install ?
1- Unpack the liner and roll it out
2- Lift the liner into the container and tie the lashes up to the eyes in the back of the container
3- Punch holes in the brim exactly where the container eyes are , with the Valuego 'hole puncher'
4- Put the carabiners through the holes and connect them with the container eyes
5- Load your precious cargo while the front end of the container liner is rolled up
6- When loaded, roll the front end of the container liner down and close the environment in which your
products will be shipped in, with the Valuego zipper

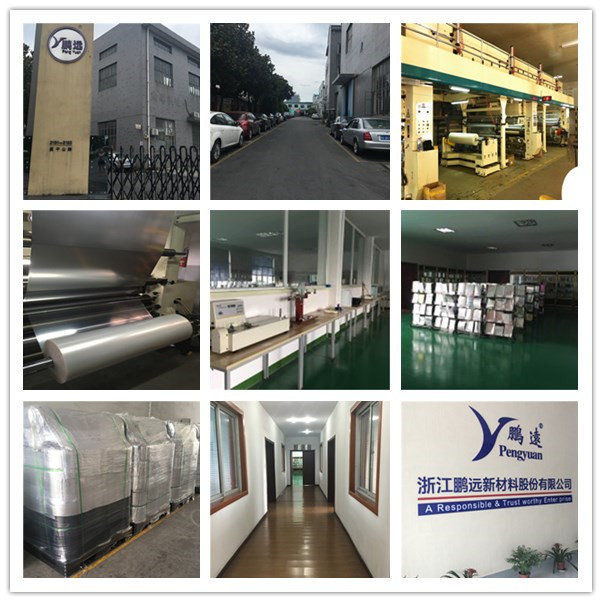

Company Image
| Prod Model: |
ZJPY1-37 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Woven: |
Polyethylene |
| Aluminium Foil: |
7micron |
| Size: |
20'gp, 40'gp, 40'hq |
| Material Weight: |
140G/M2 |
| Diameter: |
10-50mm |
| Apparent Density: |
12~96kg/m³ |
| Surface Treatment: |
Glazed Tiles |
| Usage: |
Exterior Tiles |
| Color: |
Silver |
| Material: |
Aluminum Foil |
| Refractoriness: |
-40 - 80 Degree |
Zhejiang Pengyuan New Material Co., Ltd. is located in Hangzhou, Zhejiang province, which is known as "paradise on earth". Founded in 2004, it takes advantages of superiority in intellectual resources, technology and economy of Yangtze River Delta. Our company is an all-round manufacturing enterprise with building thermal insulation material, medical packaging material and products, food packaging material and products, specialty paper, woven fabrics and products, import and export trading.
Zhejiang Pengyuan has 3 subsidiaries:
Hangzhou Pengbo Packaging Material Co., Ltd.
Hangzhou Pengshuo Import and Export Co., Ltd,
Changzhou Lianke Chuangjia composited material Co., Ltd
Zhejiang Pengyuan New Material Co., Ltd is listed into the National Torch Plan Industrialization Projects, Zhejiang Science and Technology Enterprise, the AAA Grade Enterprise. Complete industrial chain gives us advantages in effective Corp management, product quality controlling and new product development. Our company strictly controls the quality in accordance with the ISO9001: 2008 and the ISO14001: 2004 standard. As an enterprise intends to become a multinational corporation of high technology and set up a famous international brand, we set up a R&D Center together with Zhejiang University to develop new skills and products. We've already got 27 utility model patents, 1 invention patent. "PENGYUAN" is becoming a famous brand. Our company has 5 advanced production lines of lamination. Our annual output is more than 10000 tons and the yearly turnover is over 40 millions US dollars. Our main products include
Metalized Film
Radiant Barrier(Alu Foil/MPET Woven)
Poly Foam Foil Thermal Insulation
Bubble Foil/MPET Heat Insulation Materials
FSK Insulation Aluminum Foil Adhesive Tape
Composite Reflective Material
Packaging Material
Fire-Retardant Insulation Material
Zhejiang Pengyuan New Material Co., Ltd will insist in providing high quality products and best service to all the customers. We wish to develop long term stable cooperative business relations with clients from different circles.
FAQ:
1. Are you a trading company or manufacturer?
We are a manufacturer with an independent export company.
2. Traceability
Each order we have record and we keep the documents in our archives to check.
3. Customer complaints solution
QUALITY complaint:
Before bulk production, we will send the sample to our customer. If our customer say the sample is ok, we will arrange the bulk production. We promise to produce good quality products.
Delivery time delay:
We will arrange the most urgent order to produce at the first time to satisfy our customers' request.
