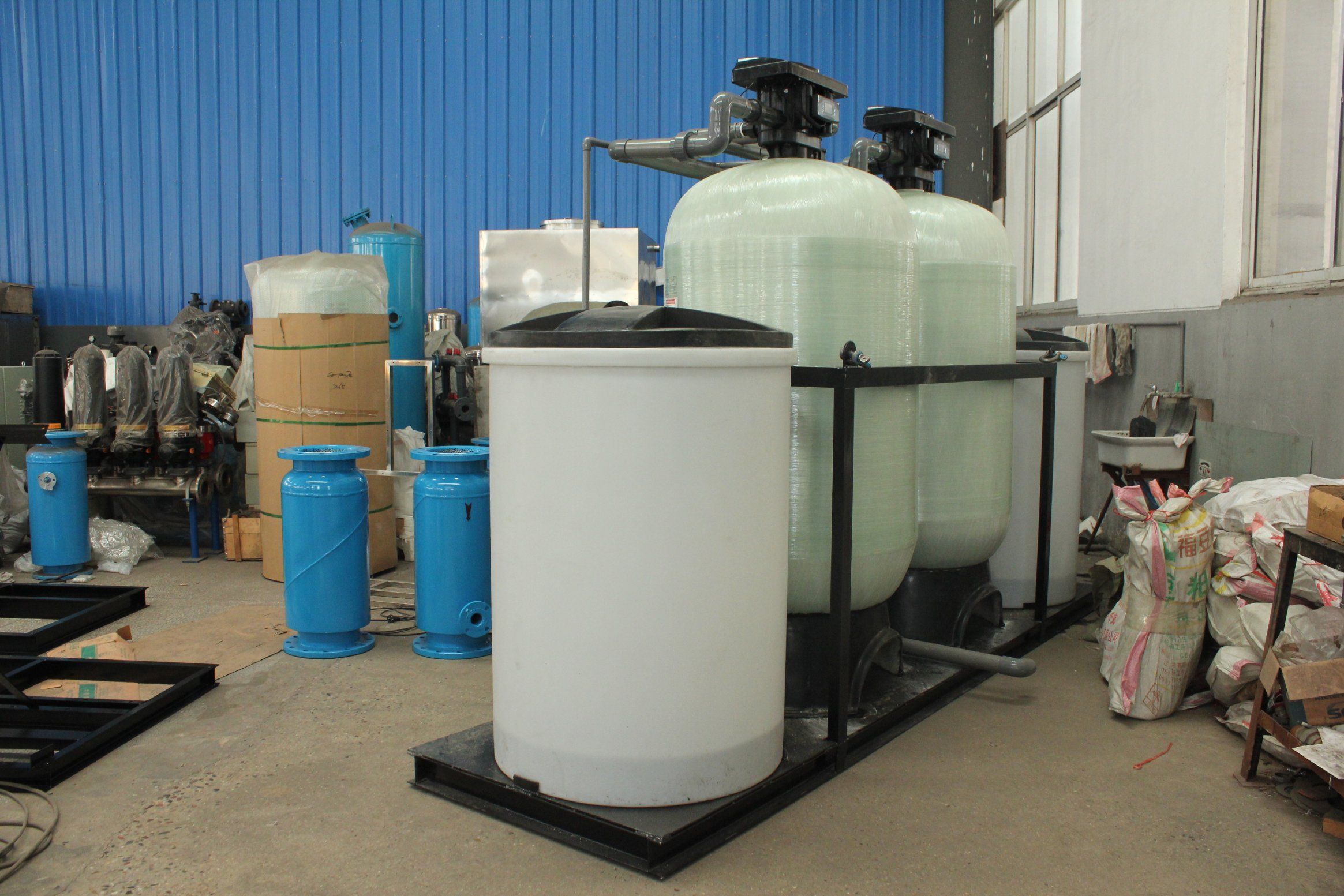

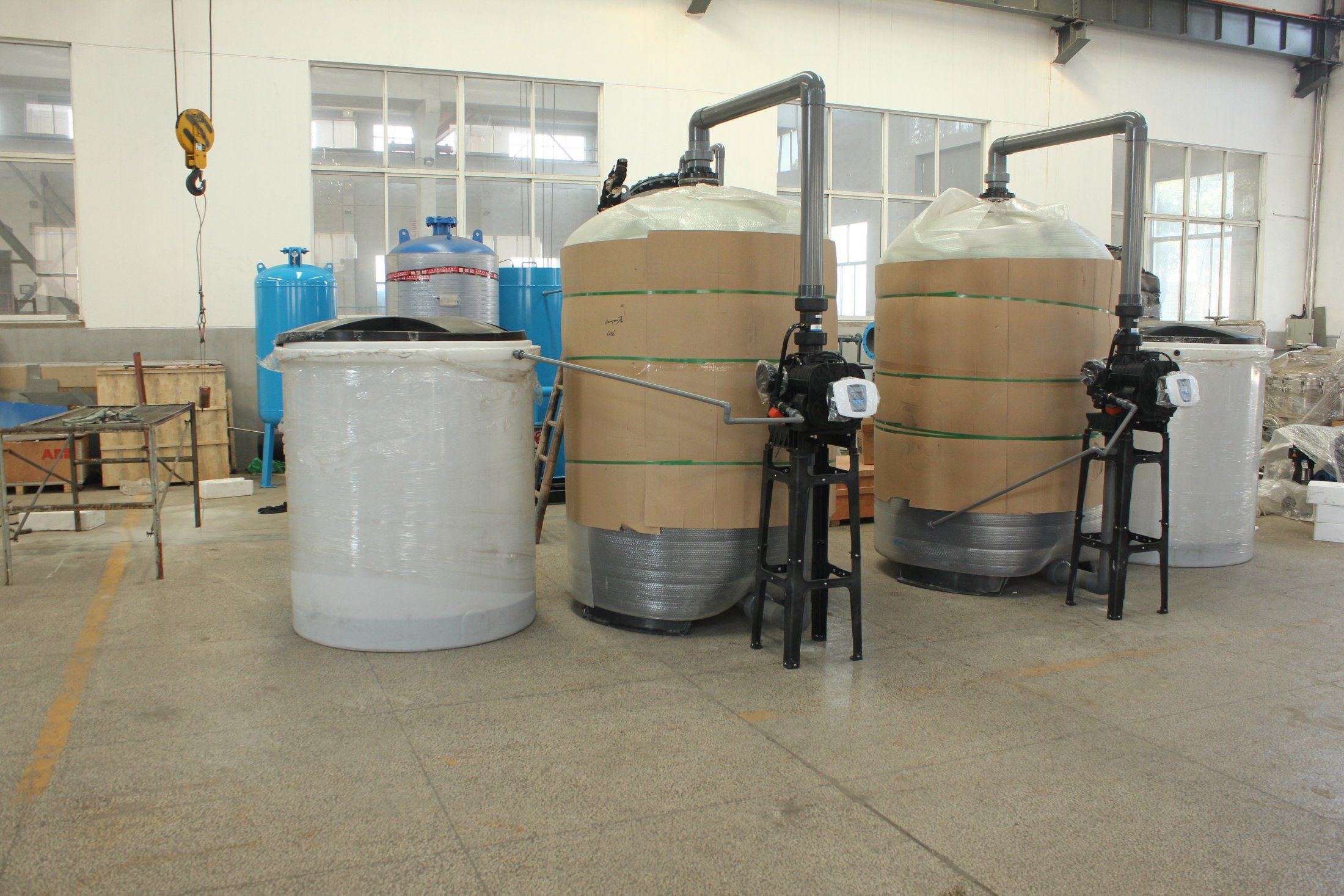

Cooling Water Make-up Automatic Water Softener

Prod Model:	YL-II-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control Mode:	Flow Rate Type, Time Type
Resin:	001×7 Strong Acidic Cation-Exchange
Working Ambient Temperature:	5-50centigrade
Relative Humidity:	Less Than 95%(25centigrade)
Hardness Of Raw Water:	Less Than 8mmol/L
Hardness Of Effluent:	Less Than 0.03mmol/L
Inlet Water Pressure:	0.2 to 0.4MPa
Free Chlorine:	Less Than 0.3mg/L
Suspended Solid:	Less Than 0.5mg/L
Iron Content:	Less Than 0.3mg/L
Composition:	Water Treatment Equipment
Process:	Thermal Processing
Processing Material:	Resin

Product Description

Cooling water make-up Automatic water softener



Advantages :
? Easy to install and operate.
? Produces clear ,soft and non - scale forming water.
? Low operating costs.
? Incorporates high-capacity polystyrene bead type cation exchange resin which is remarkably stable and has a long life.
Applications :
? Boiler feed.
? Textile processing.
? Beverage production.
? Cooling water make-up.
? Hospitals, hotels, laundries & air-conditioning plants.
Specifications :
? One Mild Steel/FRP pressure vessels provided with an inlet distribution, an outlet collecting system and a brine distributor. Mild Steel vessels is  painted externally with a protective coat of red oxide and internally with anti-corrosive bituminous paint
? One set of control valves, with all piping to inlet and outlet terminals.
? One combined salt tank/brine measuring tank, provided with brine suction piping with adjustable indicating clamps, hydraulic ejector and  control valves.
? One orifice board for indicating wash and rinse flow rates (to be fitted in the drains sump.)
? One charge of softener cat ion exchange resin with supporting under bed.
? One hardness test kit for testing the softened water.




Benefits of Water Softener:
Provides a continuous supply of soft water for your entire house
Reduces soap residue on hair and skin
Leaves clothes brighter and soft to the touch
Makes household cleaning easier and less expensive
Prevents hard water spots on glassware, dishes and utensils
Reduces soap scum and scaling on faucets, sinks and tubs
Reduces water heating bills
Increases the lifespan of water-using appliances

What do water softeners do?
Industrial water softeners are specific ion exchangers that are designed to remove ions which are positively charged.
Softeners mainly remove calcium (Ca2+) and magnesium (Mg2+) ions. Calcium and magnesium are often referred to as "hardness minerals". Softeners are sometimes even applied to remove iron.
The softening devices are able to remove up to five milligrams per liter (5 mg/L) of dissolved iron and can operate automatic, semi-automatic, or manual. Each type is rated on the amount of hardness it can remove before regeneration is necessary. Commercial water softeners collect hardness minerals within its conditioning tank and from time to time flushes them away to drain.
When an ion exchanger is applied for water softening, it will replace the calcium and magnesium ions in the water with other ions, for instance sodium or potassium. The exchanger ions are added to the ion exchanger reservoir as sodium and potassium salts (NaCl and KCl).







How long does a water softener last?
A good water softener system will last many years. Water softeners that were supplied in the 1980's may still work, and many need little maintenance, besides filling them with salt occasionally.
How often should one add salt to a softener?
Salt is usually added to the reservoir during regeneration of the softener. The more often a softener is regenerated, the more often salt needs to be added. Usually water softeners are checked twice a month and to guarantee a satisfactory production of soft water, the salt level should be kept at least half-full at all times.


Technical parameters:


Category	Model	Recommended water yield (M³/h)	Tank size Diameter *Height(mm)	Salt box (L)	Amount of resin(KG)
Dual-valve and dual-tank (simultaneous operation and respective regeneration)	YL-II-36	24-36	900×1900	800	1040
	YL-II-50	36-50	1000×2200	1000	1440
	YL-II-70	50-70	1200×2400	1500	2000
	YL-II-100	70-100	1500×2500	2000	3200
Dual-valve and dual-tank(One for use and the other for standby)	YL-II-1	1	250×1400	60	80
	YL-II-2	2	300×1400	100	120
	YL-II-3	3	350×1400	100	160
	YL-II-4	4	400×1650	200	240
	YL-II-5	5	500×1750	300	360
	YL-II-6	6	600×1900	350	480
	YL-II-10	8-10	750×1900	500	720
	YL-II-18	12-18	900×1900	800	1040
	YL-II-25	18-25	1000×2200	1000	1440
	YL-II-35	25-35	1200×2400	1500	2000
	YL-II-50	35-50	1500×2500	2000	3200
