Prod Model: |
TL(R) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Using: |
Industry |
Working Pressure: |
Low Pressure Pump |
Position Of Pump Shaft: |
Horizontal Pump |
Impeller Number: |
Single-Stage Pump |
Influent Type Of Impeller: |
Single Suction Pump |
Product Description
Shijiazhuang ShiZun Pump Industry Sales Co., Ltd specialized in
centrifugal slurry pump in China.
Production Overview:
The pump restricting parts adopt the advanced flow simulation technology
to guarantee the reliable pump design and the high operating efficiency.
The anti-corrosion & anti wear metal and rubber materials which are
specifically developed for FGD pumps have been proved by the practice that,
they can ensure the long life pump operation.
Through adjusting the bearing components to change the impeller position
in the pump chamber all-time high efficient operation of the pump can be
achieved. The pump is characterized by the back knock down structure
which is simple and advanced.
3) It is easy to maintain and repair and it is on need dismantling inlet and
outlet water pipes. The containerized mechanical seal specially used for the
desulphurization process is adopted and its operation is reliable.
Strcture features

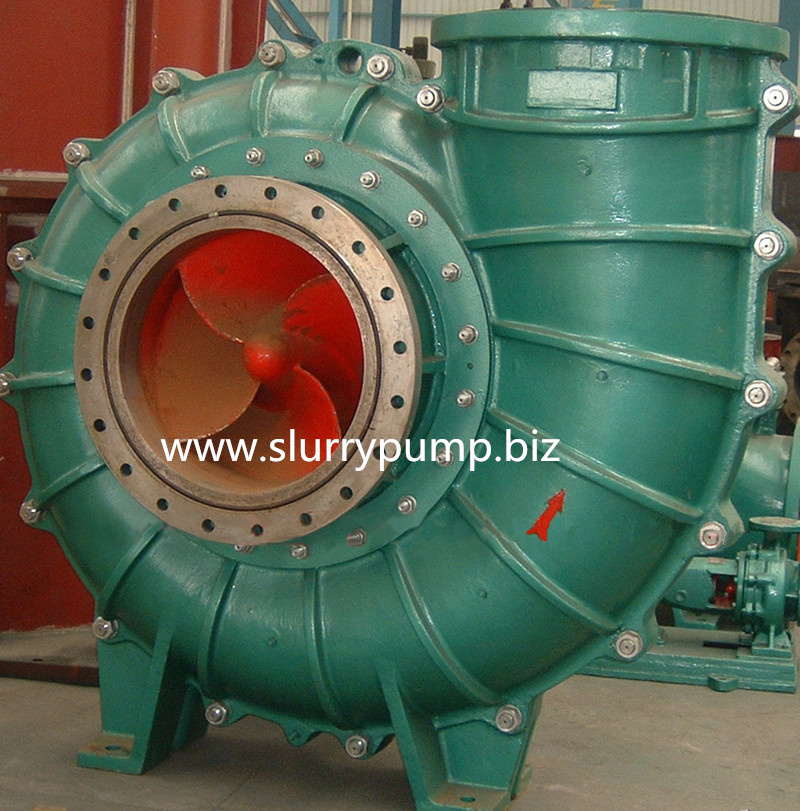

Series of TL FGD pump is a single stage, single suction horizontal centrifugal
pump. It is mainly used as the circulating pump for absorbent tower in FGD
appliances. The pump can be used to handle slurry with smoke in absorption tower of electric power station, that is thermal power plant FGD
(Flue Gas Desulfurization) Project.
It has such features: Wide range capacity, high efficiency, better energy saving.This series of pump is matched by tight structure X bracket which can save
much space. Meanwhile our company develops many kinds of materials
targeted on the pump for FGD.
Product detail:
Wide application scope
Long life span
Anti-abrasive & anticorrosive
No blockage
TL desulfurization pump is carefully designed high effective new generation
desulfurization pump, widely used as large scale serosity circulating, lime
slurry transportation, plaster slurry ejection, collection etc.
TL desulfurization pump adopt horizontal single stage, single suction and
bracket structure.
Working condition:
Serosity pH: 2.5 ~ 13
Density of chlorin ion ≤ 60000 ppm
Density of weight ≤ 60%
Media temperature ≤ 120° C
DT (TL) desulfurization pump
Capacity: 4m3/h ~10200m3/h
Head: 4.4m ~70.8m
Power: 0.55kw ~ 800kw
Performance range of series of TL(R) FGD pump
Application:
1.chemical industry: convey a variety of slurries, such as phosphoric acid, dilute acid, mother liquor, fluosilicic acid containing silica gel and alkaline etc
2) non-ferrous metal smelting industry: convey various of hydrometallurgical acid liquid ; corrosive slurry, and slurry electrolyte etc.
3) water treatment industry: pure water, high pure water, sewage, sea water.
4) in iron and steel mill: pickling system position of sulfuric acid or hydrochloric acid ;
