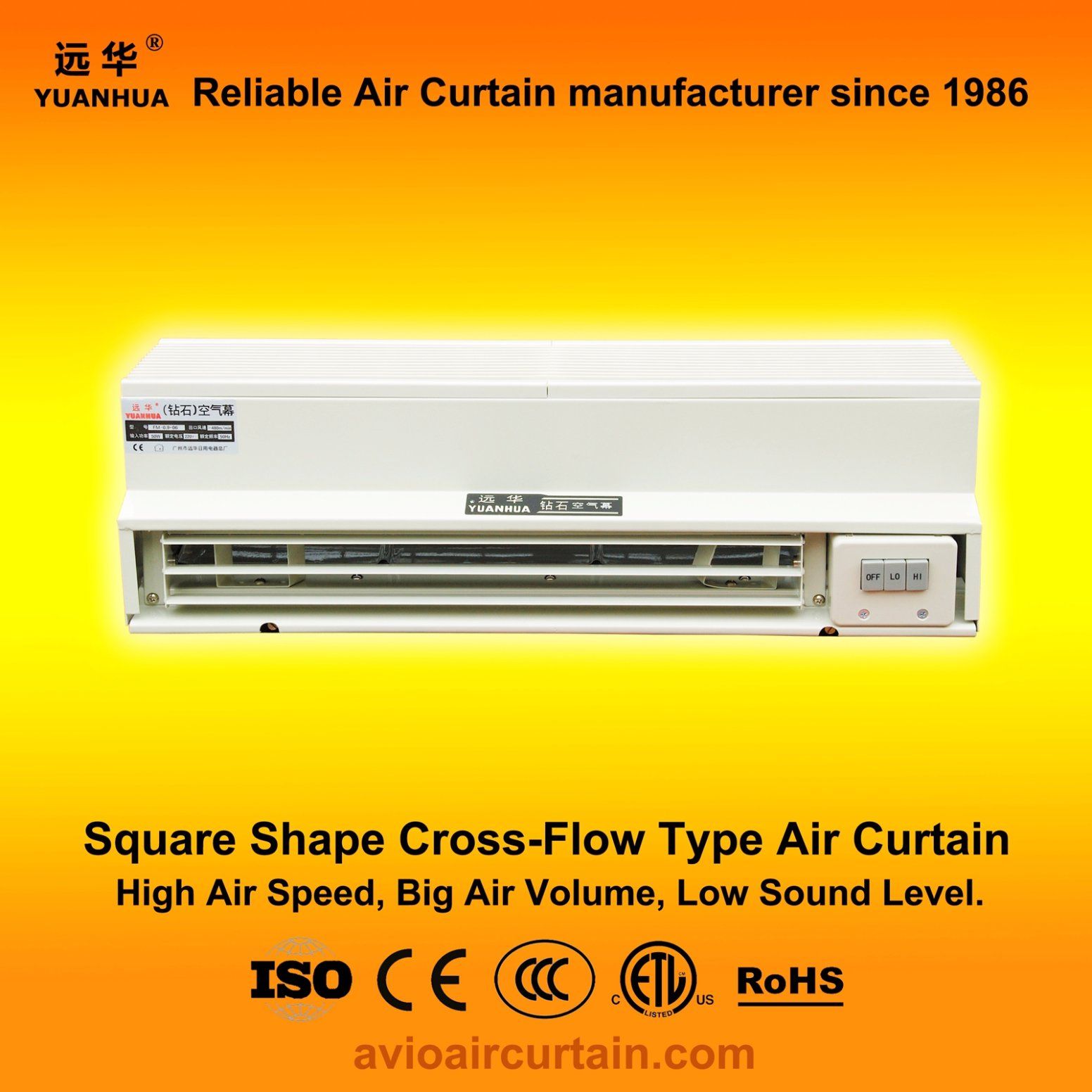

Cross-flow type air curtain (also called air door, air curtain door, door air curtain) of high air speed, big air volume and low noise level with keyboard control or remote control.
Model: FM-0.9-06
Type: Cross-flow
Control: keyboard or remote control
Length: 600mm
Blower Diameter: 90mm
Rated Voltage: 220-240v
Rated Frequency: 50/60Hz
Input Power: 50w
Air Speed: >8m/s (1600fpm)
Air Volume: >570m3/h (336cfm)
Sound Level: <52dB
Height Validity: <2m
Gross Weight: 8.5kgs
Net Weight: 7.5kgs
Case: powder-coated steel
Dimensions: 600*176*175mm
Packing Size: 675*220*230mm
Container Loading: 855pcs/20ft, 1785pcs/40ft
Related Models:
| Type | Model | Length(mm) | Blower Dia(mm) | Height Validity(m) | Air Speed(m/s) |
| New-Designed Air Curtain | FM-1.25-09N | 900 | 125 | 2.6 | 13 |
| New-Designed Air Curtain | FM-1.25-12N | 1200 | 125 | 2.6 | 13 |
| New-Designed Air Curtain | FM-1.25-15N | 1500 | 125 | 2.6 | 13 |
| | | | | | |
| Arc shape Air Curtain | FM-1.25-06B | 600 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-09B | 900 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-12B | 1200 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.25-15B | 1500 | 125 | 2.6 | 13 |
| Arc shape Air Curtain | FM-1.5-06B | 600 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-09B | 900 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-12B | 1200 | 150 | 5 | 15 |
| Arc shape Air Curtain | FM-1.5-15B | 1500 | 150 | 5 | 15 |
| | | | | | |
| Square shape Air Curtain | FM-0.9-06 | 600 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-0.9-09 | 900 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-0.9-12 | 1200 | 90 | 2 | 8 |
| Square shape Air Curtain | FM-1.25-06 | 600 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-09 | 900 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-12 | 1200 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.25-15 | 1500 | 125 | 2.6 | 13 |
| Square shape Air Curtain | FM-1.5-06 | 600 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-09 | 900 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-12 | 1200 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-15 | 1500 | 150 | 5 | 15 |
| Square shape Air Curtain | FM-1.5-09 plus | 900 | 150 | 5 | 18.5 |
| Square shape Air Curtain | FM-1.5-12 plus | 1200 | 150 | 5 | 18.5 |
| Square shape Air Curtain | FM-1.5-15 plus | 1500 | 150 | 5 | 18.5 |
| | | | | | |
| Centrifugal Air Curtain | FM-1.25-09L | 900 | 125 | 3.5 | 19 |
| Centrifugal Air Curtain | FM-1.25-12L | 1200 | 125 | 3.5 | 19 |
| Centrifugal Air Curtain | FM-1.25-15L | 1500 | 125 | 3.5 | 19 |
| | | | | | |
| Heated Air Curtain | FM-1.25-09BD | 900 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-12BD | 1200 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.25-15BD | 1500 | 125 | 2.3 | 8 |
| Heated Air Curtain | FM-1.5-09B-3D | 900 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-12B-3D | 1200 | 150 | 2.5 | 10 |
| Heated Air Curtain | FM-1.5-15B-3D | 1500 | 150 | 2.5 | 10 |
