| Prod Model: |
chemshun ceramics |
| Item: |
Alumina Tile |
| Alumina Content: |
92%,95% |
| Size: |
Customoized |
| Color: |
White |
| Shape: |
Plain, Weldable, Curved, Trapezoidal, Dimple |
| Firing Temperature: |
1550~1680degree Centigrade |
| Application Fields: |
Chute, Hopper, Cyclone, Protective System, Fan |
| Export Markets: |
Global |
Product Description
Wear resistant alumina ceramic weldable tile
Alumina ceramic weld-on tile
Alumina ceramic tile with ceramic plug and steel ferrule
Advantages:----Excellent abrasion resistance (Scuff resistance), its theoretic wear resistance is 170times of chrome steel and 260 times of manganese steel materials
----Good corrosion resistance (Anticorrosion)
----Easy application (Quick installation)
----long working life.
----Good impact resistance.
----Good thermal shock resistance. Smooth surface and good adherence resistance
>>> Ceramic tile liner sizes | Alumina ceramic tile popular Sizes (Length*width*thickness ) |
| 100*100*20mm (4"x4"x3/4") |
| 150*100*13mm (6"x4"x1/2") |
| 150*100*15mm (6"x4"x5/8") |
| 150*100*20mm (6"x4"x3/4") |
| 150*100*25mm (6"x4"x1") |
| 150*100*50mm (6"x4"x2") |
| 150*50*25mm (6"x4"x1") |
| 100*75*25mm (4"x3"x1") |
| 120*80*20mm |
| 228*114*25mm |
| 114*114*25mm |
More sizes and customized size acceptable.
Chemshun ceramics afford the relative weldable steel cone and ceramic rod. |
Advantages:Low wear loss and long working life.
Good impact resistance.
Good corrosion resistant
Good thermal shock resistance.
Smooth surface and good adherence resistance.
Quick installation and good service after sale.
Complicated shape and various size designed according to customers' demands.

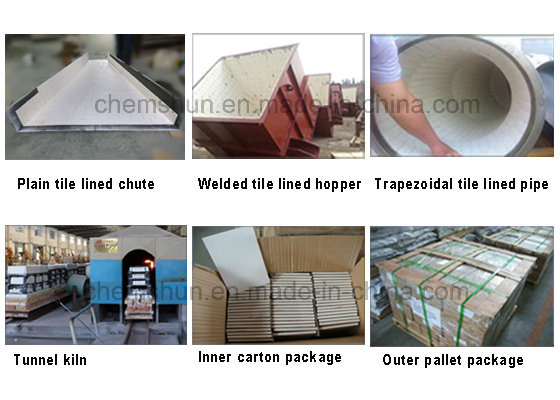

Application:-As alumina ceramic wear-resisting lining of coal-electing equipment on coal industry
-Cements industries;
-As wear resistant alumina ceramic lining of fall funnel, lining of wear-resisting pipe and bender,
-As wear resistant alumina ceramic liner of material tranfer pipe and chute, etc, on steel industry.
-As wear ceramic liner for l thansfer equipment;
-As Alumina ceramic wear plates Inside and outside surface of powder separating equipment on iron and steel works;
-Ceramics, mines and other grinding equipment lining;
-Parts of equipment hermal and power plants;
-Grinding systems Mixer Application areas
-Separator systems chain conveyor
-Cyclones diffusor
-sinter slurry ducts
-Hooper High temperature cyclones
-Ventilator housing salt plants
Alumina ceramic tile property :
Al2O3 | SiO2 | CaO | MgO | Na2O |
| 92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
Physical properties:
Specific gravity (g/cc) | >3.60 |
| Apparent porosity (%) | 0 |
| Flexural Strength (20 degree centigrade, Mpa) | 334 |
| Compressive strength (20degree centigrade, Mpa) | 1770 |
| Rockwell hardness (kg/mm 2 ) | 918 |
| Vickers hardness (hv) | >750 |
| Moh's hardness (scale) | ≥9 |
| Thermal Expansion (20-800degree centigrade, x10-6/degree centigrade) | 8.30 |
| Crystal Size (μm) | 1.3~3.0 |
Pingxiang Chemshun ceramics Co., Ltd is a manufacturer of 95% & 92% Al2O3 alumina and ZTA (Zirconia toughness Alumina) wear resistant ceramic liner products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:
1) 95% Al2O3 Alumina, 92%Al2O3 alumina, ZTA, abrasion wear resistant ceramic liner / linings and high quality grinding beads and grinding balls.
Chemshun manufacturing wear resistance Ceramic liner including: Alumina ceramic plain tile, ceramic weldable plate, alumina pipe liner, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc.
2)Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.
Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. In 2016year we establish a new producing line special for 99.5%Al2O3 and 99% Alumina balls.
Has strong research and production capability, with an annual production capacity of 5000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
