Prod Model: |
SDMNR |
Type: |
Permanent Magnets |
Composition: |
NdFeB Magnets |
Certification: |
ISO9001:2008, ISO/Ts16949:2009, RoHS |
Other Coating: |
Ni, Ni-Cu-Ni, Zn(Cr3+), Tin, Epoxy, Ni-AG, Ni-Au |
Delivery Detail: |
7 Days After Order Confirmed |
Export Markets: |
Global |
OEM Service: |
Yes |
Application: |
Generator |
Shape: |
Ring |
Coating: |
Zinc |
Grade: |
N35 |
Product Description

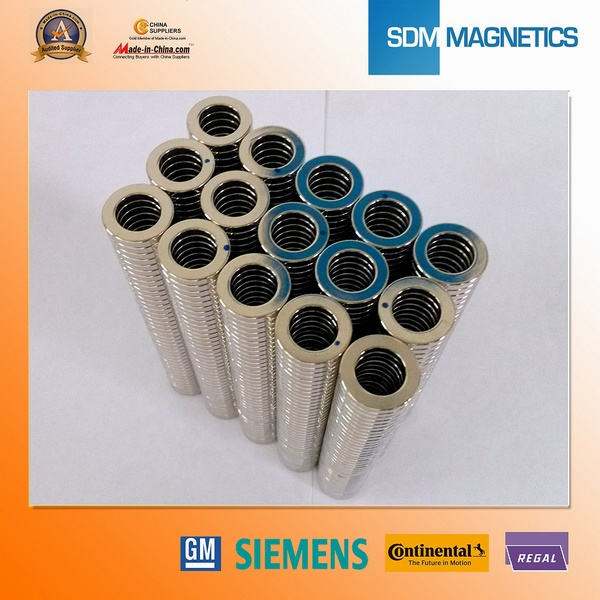

Large Size Certificated Ring Neodymium Magnet
NdFeB magnet offer the strongest magnetic power today. They are particularly suitable for high volume production in a wide variety of shape and size. Precise dimensional control is achieved in machining processes.
1. Applications: Motors, Generators, Sensors, Speakers, Earphones and other musical instruments, Magnetic therapy devices, Magnetic Chuck, Magnetic bearings and couplings, NdFeB Pot Magnet and other magnetic applications.
2. Grade: N35-N52, N35M-N50M, N35H-N48H, N35SH-N45SH, N28UH-N42UH, N28EH-N40EH, N28AH-N38AH.
3. Shape: Arc, Customized Design.
4. Coating: Ni, Ni-Cu-Ni, Zn(Cr3+), Tin, Epoxy, Ni-Ag, Ni-Au, Passivation, Parylene, etc.
5. Size: Customized size per your requirements.
6. Certification: ISO9001: 2008, ISO/TS16949: 2009 and RoHS.
/ Sintered NdFeB Magnet |
Grade | | | | | | | |
Residual Induction (Br) | Coercive Force (Hcb) | Intrinsic Coercive Force (Hcj) | Max Energy Product (BH)max | Temp. Coefficient Tk | Max Working Temp. | Curie Temp. |
|
T | kGs | kA/m | kOe | kA/m | kOe | kJ/m³ | MGOe | %/ºC(Br) | %/ºC(Hcj) | ºC | ºC |
N35 | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥955 | ≥12 | 263-287 | 33-36 | -0.12 | -0.70 | 80 | 310 |
N38 | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥955 | ≥12 | 287-310 | 36-39 | -0.12 | -0.70 | 80 | 310 |
N40 | 1.25-1.28 | 12.5-12.8 | ≥907 | ≥11.4 | ≥955 | ≥12 | 302-326 | 38-41 | -0.12 | -0.70 | 80 | 310 |
N42 | 1.28-1.32 | 12.8-13.2 | ≥915 | ≥11.5 | ≥955 | ≥12 | 318-342 | 40-43 | -0.12 | -0.70 | 80 | 310 |
N45 | 1.32-1.38 | 13.2-13.8 | ≥923 | ≥11.6 | ≥955 | ≥12 | 342-366 | 43-46 | -0.12 | -0.70 | 80 | 310 |
N48 | 1.38-1.42 | 13.8-14.2 | ≥923 | ≥11.6 | ≥955 | ≥12 | 366-390 | 46-49 | -0.12 | -0.70 | 80 | 310 |
N50 | 1.40-1.45 | 14.0-14.5 | ≥796 | ≥10.0 | ≥876 | ≥11 | 382-406 | 48-51 | -0.12 | -0.70 | 60 | 310 |
N52 | 1.43-1.48 | 14.3-14.8 | ≥796 | ≥10.0 | ≥876 | ≥11 | 398-422 | 50-53 | -0.12 | -0.70 | 60 | 310 |
N35M | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1114 | ≥14 | 263-287 | 33-36 | -0.12 | -0.70 | 100 | 310 |
N38M | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1114 | ≥14 | 287-310 | 36-39 | -0.12 | -0.70 | 100 | 310 |
N40M | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1114 | ≥14 | 302-326 | 38-41 | -0.12 | -0.70 | 100 | 310 |
N42M | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1114 | ≥14 | 318-342 | 40-43 | -0.12 | -0.70 | 100 | 310 |
N45M | 1.32-1.38 | 13.2-13.8 | ≥995 | ≥12.5 | ≥1114 | ≥14 | 342-366 | 43-46 | -0.12 | -0.70 | 100 | 310 |
N48M | 1.37-1.43 | 13.7-14.3 | ≥1027 | ≥12.9 | ≥1114 | ≥14 | 366-390 | 46-49 | -0.12 | -0.70 | 100 | 310 |
N50M | 1.40-1.45 | 14.0-14.5 | ≥1033 | ≥13 | ≥1114 | ≥14 | 382-406 | 48-51 | -0.12 | -0.70 | 100 | 310 |
N35H | 1.17-1.22 | 11.7-12.2 | ≥868 | ≥10.9 | ≥1353 | ≥17 | 263-287 | 33-36 | -0.12 | -0.70 | 120 | 310 |
N38H | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥1353 | ≥17 | 287-310 | 36-39 | -0.12 | -0.70 | 120 | 310 |
N40H | 1.25-1.28 | 12.5-12.8 | ≥923 | ≥11.6 | ≥1353 | ≥17 | 302-326 | 38-41 | -0.12 | -0.70 | 120 | 310 |
N42H | 1.28-1.32 | 12.8-13.2 | ≥955 | ≥12.0 | ≥1353 | ≥17 | 318-342 | 40-43 | -0.12 | -0.70 | 120 | 310 |
N45H | 1.32-1.36 | 13.2-13.6 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 342-366 | 43-46 | -0.12 | -0.70 | 120 | 310 |
N48H | 1.37-1.43 | 13.7-14.3 | ≥995 | ≥12.5 | ≥1353 | ≥17 | 366-390 | 46-49 | -0.12 | -0.70 | 120 | 310 |
N35SH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-287 | 33-36 | -0.11 | -0.65 | 150 | 320 |
N38SH | 1.22-1.25 | 12.2-12.5 | ≥907 | ≥11.4 | ≥1592 | ≥20 | 287-310 | 36-39 | -0.11 | -0.65 | 150 | 320 |
N40SH | 1.25-1.28 | 12.5-12.8 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-326 | 38-41 | -0.11 | -0.65 | 150 | 320 |
N42SH | 1.28-1.32 | 12.8-13.2 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 318-342 | 40-43 | -0.11 | -0.65 | 150 | 320 |
N45SH | 1.32-1.38 | 13.2-13.8 | ≥1003 | ≥12.6 | ≥1592 | ≥20 | 342-366 | 43-46 | -0.11 | -0.65 | 150 | 320 |
N28UH | 1.04-1.08 | 10.4-10.8 | ≥764 | ≥9.6 | ≥1990 | ≥25 | 207-231 | 26-29 | -0.11 | -0.60 | 180 | 330 |
N30UH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥1990 | ≥25 | 223-247 | 28-31 | -0.11 | -0.60 | 180 | 330 |
N33UH | 1.13-1.17 | 11.3-11.7 | ≥852 | ≥10.7 | ≥1990 | ≥25 | 247-271 | 31-34 | -0.11 | -0.60 | 180 | 330 |
N35UH | 1.17-1.22 | 11.7-12.2 | ≥860 | ≥10.8 | ≥1990 | ≥25 | 263-287 | 33-36 | -0.11 | -0.60 | 180 | 330 |
N38UH | 1.22-1.25 | 12.2-12.5 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 287-310 | 36-39 | -0.11 | -0.60 | 180 | 330 |
N40UH | 1.25-1.28 | 12.5-12.8 | ≥899 | ≥11.3 | ≥1990 | ≥25 | 302-326 | 38-41 | -0.11 | -0.60 | 180 | 330 |
N42UH | 1.28-1.32 | 12.8-13.2 | ≥899 | ≥11.3 | ≥1990 | ≥25 | 318-342 | 40-43 | -0.11 | -0.60 | 180 | 330 |
N28EH | 1.04-1.08 | 10.4-10.8 | ≥780 | ≥9.8 | ≥2388 | ≥30 | 207-231 | 26-29 | -0.11 | -0.55 | 200 | 330 |
N30EH | 1.08-1.13 | 10.8-11.3 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-247 | 28-31 | -0.11 | -0.55 | 200 | 330 |
N33EH | 1.13-1.17 | 11.3-11.7 | ≥836 | ≥10.5 | ≥2388 | ≥30 | 247-271 | 31-34 | -0.11 | -0.55 | 200 | 330 |
N35EH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-287 | 33-36 | -0.11 | -0.55 | 200 | 330 |
N38EH | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥2388 | ≥30 | 287-310 | 36-39 | -0.11 | -0.55 | 200 | 330 |
N40EH | 1.25-1.28 | 12.5-12.8 | ≥899 | ≥11.3 | ≥2388 | ≥30 | 302-326 | 38-41 | -0.11 | -0.55 | 200 | 330 |
N28AH | 1.04-1.08 | 10.4-10.8 | ≥787 | ≥9.9 | ≥2624 | ≥33 | 207-231 | 26-29 | -0.10 | -0.50 | 230 | 350 |
N30AH | 1.08-1.13 | 10.8-11.3 | ≥819 | ≥10.3 | ≥2624 | ≥33 | 223-247 | 28-31 | -0.10 | -0.50 | 230 | 350 |
N33AH | 1.13-1.17 | 11.3-11.7 | ≥843 | ≥10.6 | ≥2624 | ≥33 | 247-271 | 31-34 | -0.10 | -0.50 | 230 | 350 |
N35AH | 1.17-1.22 | 11.7-12.2 | ≥876 | ≥11.0 | ≥2624 | ≥33 | 263-287 | 33-36 | -0.10 | -0.50 | 230 | 350 |
N38AH | 1.22-1.25 | 12.2-12.5 | ≥899 | ≥11.3 | ≥2624 | ≥33 | 287-310 | 36-39 | -0.10 | -0.50 | 230 | 350 |
*. | | | | | | | | | |
*The above-mentioned data of magnetic properties and physical properties are given at room temperature. | | | | | |
*\. | |
*The max working temperature of magnet is changeable due to length-diameter ratio, coating thickness and another environment factors. | |
SDM Magnetics Co., Ltd. is a leading Chinese manufacturer of high performance permanent magnets and magnetic assemblies with ISO9001: 2008, ISO/TS 16949 and ISO14001 certificates. SDM serves a variety of markets from consumer electronics, industrial automation, automotive, green energy, household appliances, medical, aerospace and telecommunications. SDM's magnets are used in motors, speakers, generators, sensors, compressors, MRI, magnetic chucks and separators etc.
To meet the more and more demanding markets, SDM has been concentrating on manufacturing technologies for quality stability and cost reduction. Since 2010 the company has been supplying magnets to General Motors' OEM with 0 PPM. With Dysprosium infiltration technology, we are able to offer competitive prices for high grade Neodymium magnets. The company has also built up a strategic cooperation with China's No. 1 rare earth miner CHINALCO, which gives us strong and safe backup for rare earth raw materials.
SDM Magnetics now manufactures a comprehensive range of magnetic products including:
Neodymium Iron Boron
Bonded Magnet
Samarium Cobalt
AlNiCo (Aluminum Nickel Cobalt)
Magnetic Assemblies
Over the last ten years SDM export 85% of its products to American, European, Asian and African countries. With such wide range of magnetic material options, our professional technicians are available to help solve your magnetic needs and choose the most cost effective material for you.
