| Price: | US $ 125-135/Square Meter |
|---|---|
| Min Order: | 50/Square Meter |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | AMGS-001 |
|---|---|
| Size: | Customized |
| Color: | Powder Coated White/Dark Grey or Customized |
| Hardware: | Kinlong Brand |
| Material: | Aluminum Alloy |
| Open Style: | Sliding |
| Frame Material: | Aluminum Alloy |
| Style: | European |
| Opening Pattern: | Horizontal |
| Function: | Invisible |
| Surface Finishing: | Finished |
| Security Rating: | A |
| Screen Netting Material: | Stainless Steel |

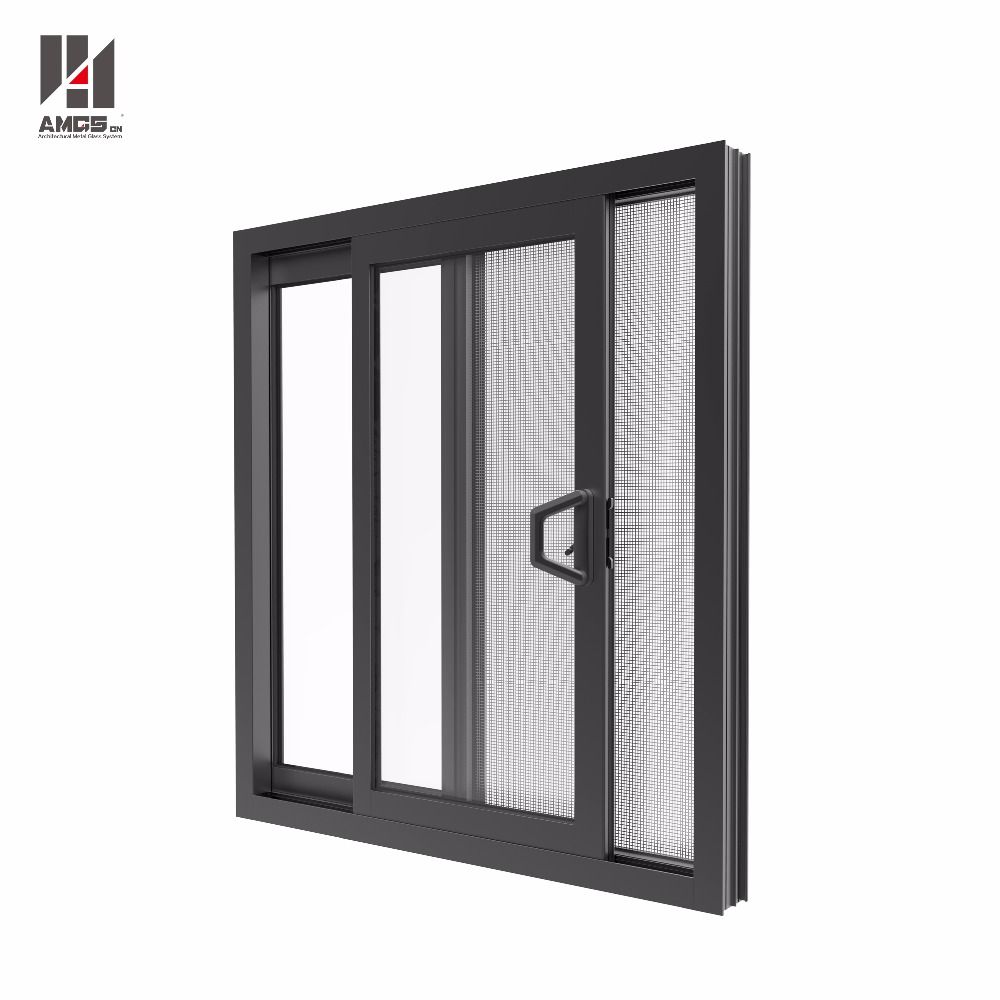

Aluminum sliding window
1. Profile brand: FENGLU Aluminum
2. Color: powder coated white or dark grey, any other color is available
3. Profile Finish: Powder coating
4. Fly net is available
5. Window grill: available
6. Hardware: China famous brand, with chainwinder
7.Glazing gasket: EPDM or silicon
8. Open style: sliding window
9. Size: width range: 500mm-900mm, height range: 600mm-1500mm
2) Good air-tightness, water-tightness, sound and heat insulation.
3) Good wind-resistance, widely used for windy/storm areas.
4) Durable, no deformation, no crack after long-time usage.
| Items | Aluminum sliding window |
| Profile thickness | 1.4mm |
| Frame width | 100mm |
| Frame face width | 33mm |
| Sash face width | 68mm |
| Glazing options | Type lOW-E/Reflective/Tempered/Floated/Coated Single glazing 4/5/6/8/10/12/15/19mm etc Double glazing Clear, Laminated, Low-E, Tempered 5mm+12A+5mm, 6mm+12A+6mm,5mm+0.76PVC+5mm, 6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc. |
| Aluminum color options | Anodized black,Anodized light champagne,Wooden grain, Electrophoresis silver, powder coating white/grey,etc. |
| Glass color options | Light grey,Light blue,Dark green,Dark blue,Light green,Clear glass, Bronze, Ford blue |
| Accessories | Handle,Hinge,Ball lock,square lock Rubber strip for sealing,System Retaining Washer |
| Performance parameter | 1.Wind pressure performance 5.0kpa GB/T7106-2008/9 Class 2.Air permeability 0.5m3/(h.m) GB/T7107-2008/8 Class 3.Rain water permeability 700Pa GB/T7108-2008/6 Class 4.Air noise performance 45dB GB/T8485-2008/6 Class 5.Insulation performance1.1W/(m2.k)GB/T8484-2008/10 Class 6.Shading performance of SC 0.2 GB/T2680-2008/7 Class |
| Material: Plastic film, Foam, Carton, Wooden box | ||
| 20FT | Door(1.8mx2.2m) | Window(1.2mx1.2m) |
| 90pcs | 200pcs | |
| 40FT | 200pcs | 420pcs |
| 40HQ | 250pcs | 530pcs |
