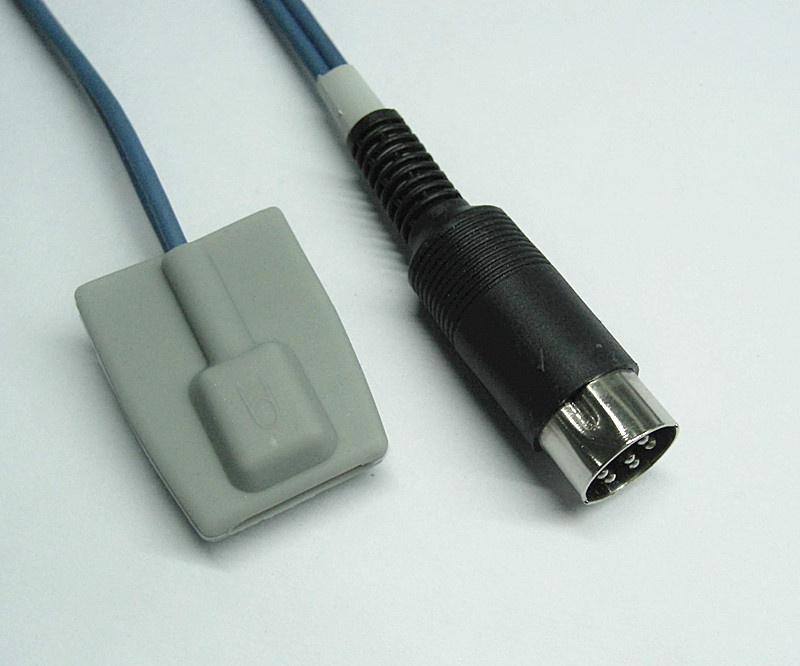

Datascope Rou 8pin Pediatric Soft Tip SpO2 Sensor
| Price: |
US $ 7-12/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union |
Compatible Monitor: Datascope Accusat, Accutor 3/4 SAT, Passport,
Accutor Plus 0020-00-071-01.
A. The analysis of Spo2 sensor
1. What's Spo2 sensor/probe
Spo2 probe is used to those who need special applications, such as: multi-parameter monitor, oximetry, etc. these kinds of medical monitoring equipments. It is includes disposable and reusable two types products, disposable is only for a single patient use of product, reusable can be used multiple times by special signs and sales of products.
2. Structure
Blood oxygen probe mainly instrument connector (i.e., the main plug), the patient cable, photoelectric sensors, including radio and television sensor was part of the direct contact with the human body, all of the photoelectric sensor made from a mix of soft silicone and photocell
3. Detailed definition
Instrument connector: the connector that connected the main line with the instrument, for short is the main plug.
The cable: Actually refers to multi-core cable, connect the main plug and sensor together.
Photoelectric sensor: The monitoring terminal, through which collect the patient physiological signal, thus transmitted to the monitoring instrument.
B. All types of Datascope Spo2 sensor
1. Datascope adult finger clip spo2 sensor(Enventic Clip Shell), Round 8Pin, Color=grey or blue.
2. Datascope adult finger clip spo2 sensor(DS-100A Clip Shell), Round 8Pin,Color=grey or blue.
3. Datascope adult finger clip spo2 sensor(Dolphin Clip Shell), Round 8Pin, Color=grey or blue.
4. Datascope pediatric finger clip spo2 sensor, Round 8Pin, Color=grey or blue.
5. Datascope adult soft tip spo2 sensor, Round 8Pin, Color=grey or blue.
6. Datascope pediatric soft tip spo2 sensor, Round 8Pin, Color=grey or blue.
7. Datascope neonatal wrap spo2 sensor, Round 8Pin, Color=grey or blue.
8. Datascope neonatal "Y" wrap spo2 sensor, Round 8Pin, Color=grey or blue.
9. Datascope adult ear clip spo2 sensor, Round 8Pin, Color=grey or blue.
10. Datascope infant soft tip spo2 sensor, Round 8Pin, Color=grey or blue.
11. Datascope neonatal soft tip spo2 sensor, Round 8Pin, Color=grey or blue.
C. Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.
D. Products Information| character: reusable |
| material: plastic |
| products packing: 130mm*180mm |
| transport package: carton |
| colour: blue and grey |
| length: 1 metre and 3 metre |
| HS No.: 9018909000 |
| LED&PD chip: Chinese, Korean and USA |
| type: pediatric soft tip |
| connector: Round 8Pin |
| compatible model : All Datascope brand |
E. Products Description
1. Enriroment Temperature: 5°C-40°C;
2. Relative humidity: ≤80%;
3. Air press: 86kPa-106kPa;
4. Work supply voltage: d.c.5V, allowed +5%, -10% relative tolerance;
5. Spo2 test range:should be around 70%-100%;
6. Spo2 test accurancy:70%-100% Tolerance allowed :±3%;
7. Pulse test range:should be 30bpm-245bpm;
8. Pulse test accuracy: ±6bpm;
9. The surface temperature of the skin part which touch with sensor's LED;
10. After 8 hours continue used on certain part, the surface temperature of the skin part which touch with sensor's LED should not over 41 °C.
F. Products Specifications
1. Ambient temperature: 0 to 40°C(32 to 104°F);
2. Relative humidity: 0% to 80%;
3. Hyperbaric pressure: 86kPa-106kPa;
4. Materials: Quality TPU jacket cable, Medical PVC strain relief;
5. Gold and plated pins and Nylon plug.
G. Products use working environment requirements
1. Environmental humidity: 5 °C to 40 °C;
2. Relative humidity: 80% or less;
3. Atmospheric pressure: 700 hpa ~ 1060 hpa;
4. Power 5 v;
5. Tolerance and 10%.
H. Products Advantages
1. Appearance sizes strictly conform to the requirements of design drawings, little variation in permissible range.
2. Wire appearance round and heavy with smooth, uniform color, shell surface without damage, scratches, deformation defects ;All kinds of plug surface smooth level off, without burr, without obvious mechanical injury, damage, deformation, metal without rust marks.
3. Wire and plug, plug and instrument socket contact no loose fastening.
4. All marks, text symbols, clear and correct exactly same as customer's request.
5. Wire conduction performance is good, there is no short circuit, dislocation and the phenomenon of poor contact.
6. Blood oxygen probe use for suitable oxygen instrument and the person with normal vital signs to make a measurement, bleeding oxygen saturation and heart rate data can be accurately read, blood oxygen saturation data should be 97% or more, or heart rate range between 50 ~ 120 times/min.
I. Products packing&transport&storage
1. Each Spo2 sensor cable attaches labels on the line, reel to circular coil, fasten it, and then into the transparent self-styled plastic bags.
2. In general, put the packet products in outer packing boxes, and outside the plastic bag plus a bubble bag to prevent damaging product under pressure, outer packing is a carton.
3. Packaged products use the general transportation is available, transport process should be avoided in the sun, rain, weight, mechanical vibration, and prevent harmful chemicals.
4. Packaged product should be stored in - 10 ºC to 50 ºC, relative humidity less than 95%, no corrosive materials, well-ventilated place.
J. Products' Period of Validity| All Ranges of Our Products | Warranty Period |
| Reusable Spo2 Sensor | 12 Months |
| Disposable Spo2 Sensor | 3 Months |
| Spo2 Extension Cable | 12 Months |
| ECG&EKG Cable | 12 Months |
| Reusable NIBP Cuffs& Airhose Tube | 6 Months |
| Disposable NIBP Cuffs | 3 Months |
| Temperature probe | 6 Months |
| IBP Cable | 12 Months |
| Connectors | 12 Months |
K. Company's News
1. CMEF: National Exhibition and Convention Center (Shanghai) from15th to 18th May, 2015.
Our booth is at Hall 6.1 - N25.
2. CMEF: National Exhibition and Convention Center (Wuhan) from 18th to 21st October, 2015.
Our booth is at Hall A3 - G02.
3. CMEF: National Exhibition and Convention Center (Shanghai) from 17th to 20 April, 2016.
Our booth is at Hall 6.1 - K26.
4. CMEF: National Exhibition and Convention Center (Shenzhen) from Oct.29th to Nov.1st, 2016.
Our booth is at Hall 4-D17-1.
5. CMEF: National Exhibition and Convention Center (Shanghai) from 15th to 18th May, 2017.
Our booth is at Hall 6.1 - J15.
6. CMEF: National Exhibition and Convention Center (Kunming) from Oct.29th to Nov.1st, 2017.
Our booth is at 3F, Hall 12, 12M25.
L. Condition&Terms
1) T/T 100% payment in advance; EXW.
2) Packing: Separate package, then in outer box.
3) Delivery lead time: 15 days upon receipt of payment.
4) Method of shipment: By air (via DHL, UPS, TNT, FedEX...); By sea.
5) Please kindly confirm the goods and then send us feedback.
6) If you have any problems, please do not hesitate to contact us in two days.
7.This is sales Ada He, my mobile number is 0086-13410565337(24H Hot-line service)!
| Prod Model: |
HD004 |
| Packing: |
Separate Package, Then in Outer Box |
| LED&Pd Chip: |
Chinese, Korea and USA |
| Colour: |
Grey and Blue |
| People: |
Neonate, Child and Adult |
| Connector: |
8pin |
| Feature: |
Reusable |
| Material: |
Plastic |
| Certification: |
ISO13485 |
| Disinfection: |
Without Disinfection |
| Power Type: |
Electric |
| Group: |
Children |
| Application: |
Medical Monitor |
Best goods and service from Huiertai! Caring Health, Unremitting improvement, making mutualism friends!
Our company have ten years experience for supplying different kinds of products. We are a professional manufacturer of medical cables and connectors equivalent to LEMO, Fischer...As medical accessories---SpO2 sensor, SpO2 adapter cable, ECG cable, EKG cable, IBP cable and NIBP cuff together with NIBP cuff airhose tube, Temperature probe, Medical spare part and OEM, ODM service.
As an ISO13485 registered and CE certificated company, Huiertai is one of the leading manufacturer of medical cables & accessories over the world. Our products are based on the latest international standard production and widely used in monitoring, oximetry, ECG, Holter ECG, compatible with kindly of Brand.

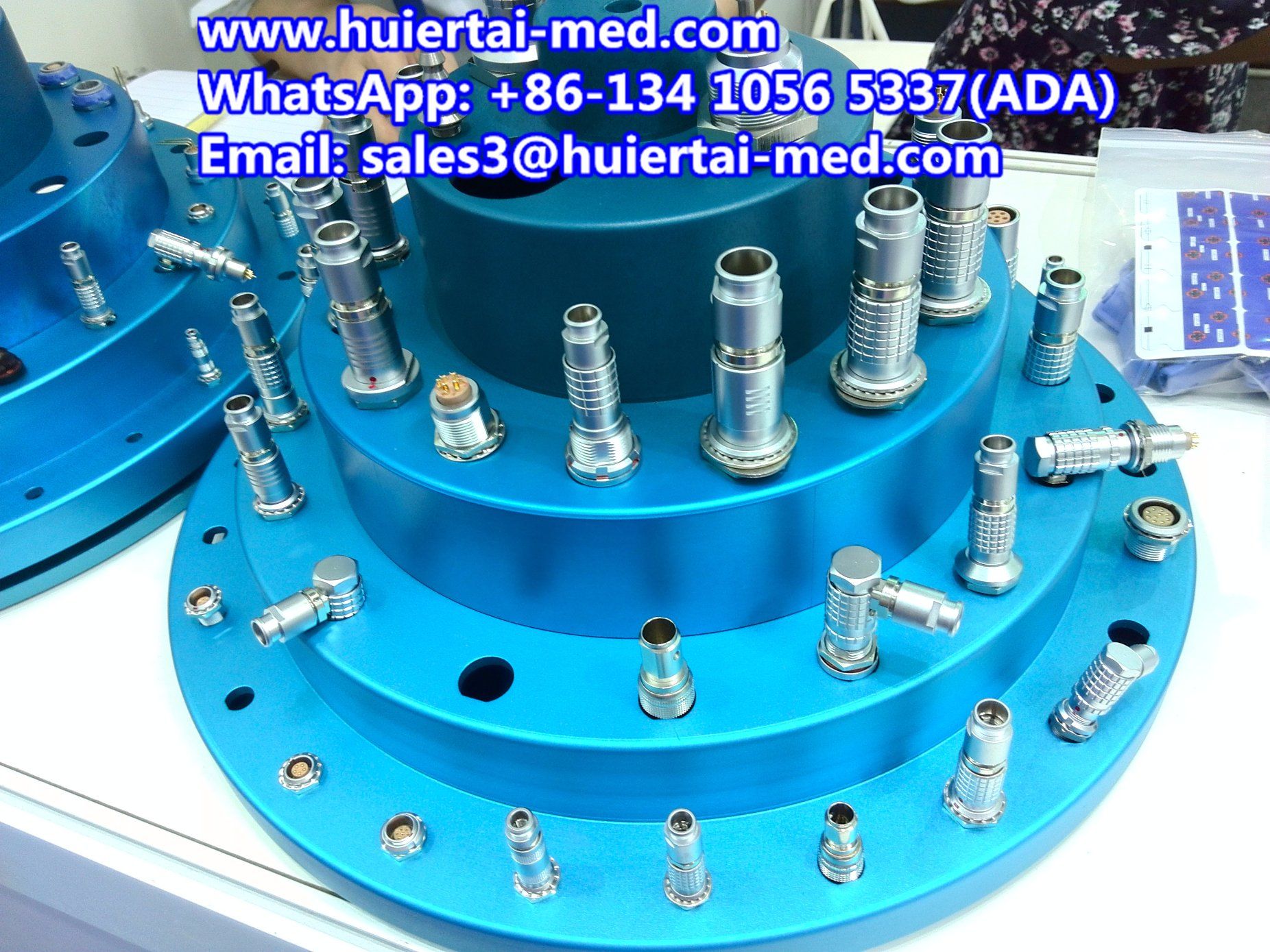

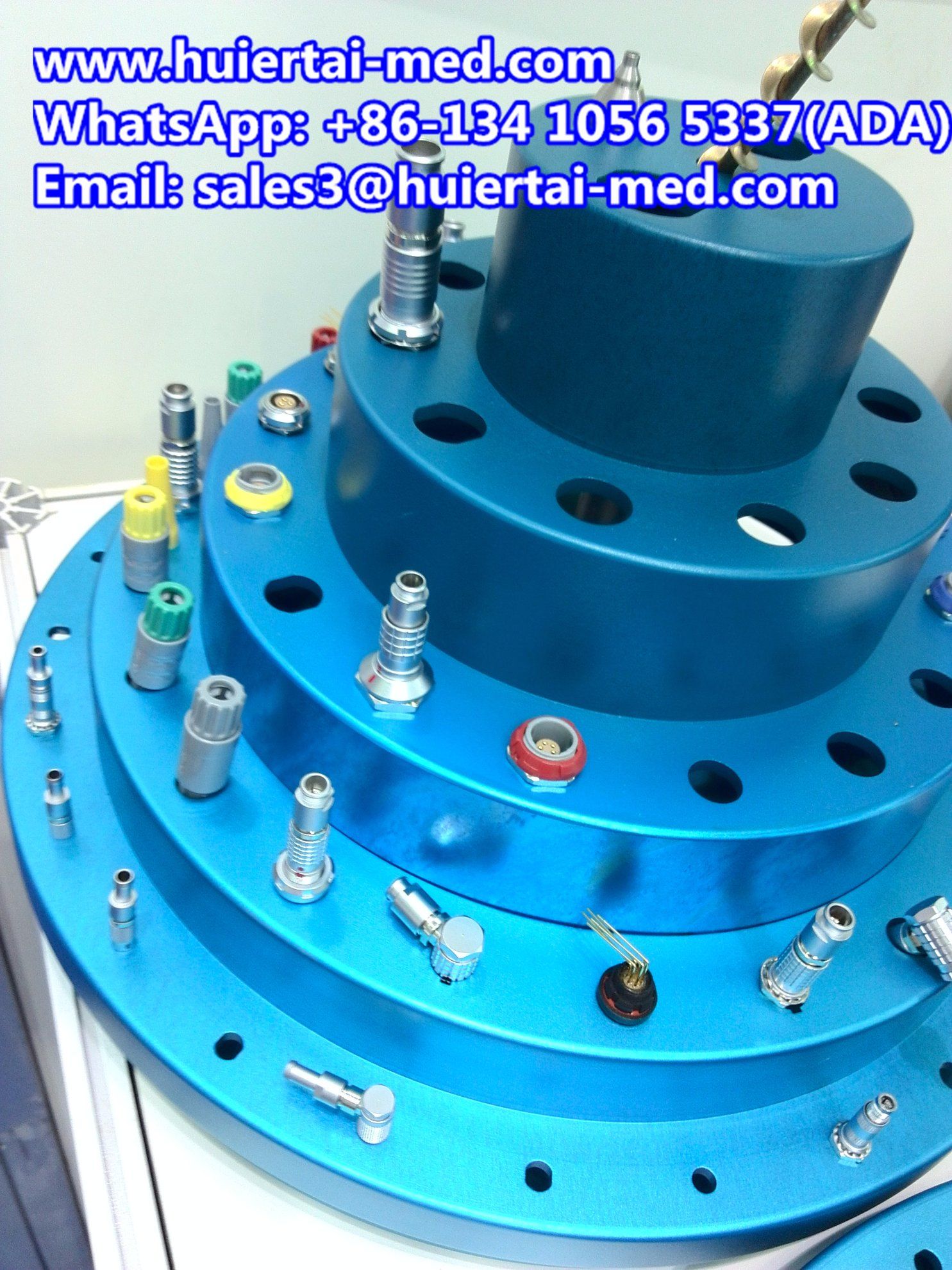

For connectors, we have THE BEST machines, and we are THE ONLY ONE manufacturer who use imported CNC lathes of the same profession in China. Our CNC lathes are imported from Taiwan and Japan. This makes us can manufacture connectors in one time, no secondary process, which ensures the good quality of our connectors.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Besides good quality, we still have many advantages: Stably and Excellent Quanlity; Competitive price; Full range of products; Professional Technology; Thoughtful service and Experience sales group!
Let's cooperate to make fruitful success for both of us!
