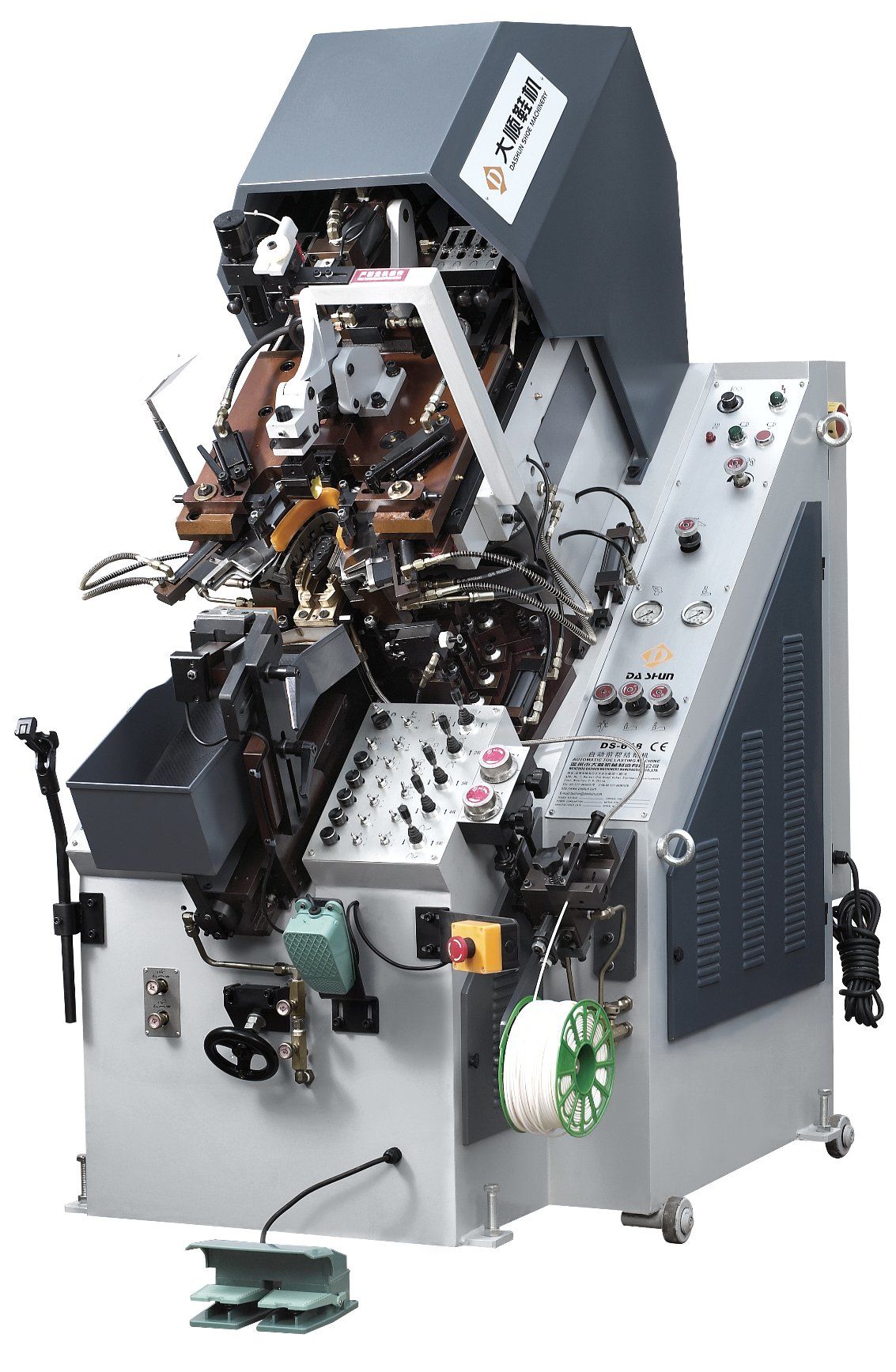

Dashun brand ds618 automatic toe lasting machine
Automatic, toe lasting machine, shoe machine, shoemaking machine
Characteristics
Ds-618 automatic toe lasting machine is a clamping shoe vamp with nine
Claws molding machine, designed for shoe sole molding.
Make use of this machine to manufacture your products, which can meet the
Demand of attaching shoe vamp with the shoe
Last smoothly. The machine is featured with convenient operation, high efficiency,
Steady quality,
Easy maintenance, and suit for manufacturing the children shoes, sports shoes,
Lady shoes, men
Shoes, riding boot, gentlemen shoes and other special work shoes,
Mountaineering shoes and so on.
(1) main features:
A. Universal tightening band and specially-designed wiper ensure shoe vamp attaching shoe last
Equably without any shagginess after lasting.
B. Pressure head device adopts adjustable two-sections pressure,
Which make the working piece during wiper tightening and final pressing reach the
Best impression.
C. Independence nice claws is adjustable, which can be suit for any shape shoes
Toe part tightening
D. Each claw has function of automatic cogging-down. Operator can select some
Claws to be cogged down according with shoe vamp tightness degree.
E. Wiper with function of adjustable speed and inching motion is convenient for
Adjustment that controlled vamp tightening.
F. Auxiliary wiper structure cooperating with nice claws of toe part make the vamp
Attaching shoes last tightly.
G. Cross projection lamp can help laying toe part of shoe last in the right position.
H. Opening or closing of turnplate of right and left claws is adjustable and
Independence, which can manufacture the right and left shoe separately.
I. Rotating of second claw is independence and adjustable, which is more
Quick and convenient for replacing shoe last.
J. Adjustable inner and outer brace table can move upward or downward, which is
Convenient for manufacturing shoes with any size.
Maintenance notice:
In order to adjust conveniently, please fill sliding part of heel device with oil one
Time a week.
Oil pipe and joint should be locked tightly to avoid oil leaking. Keep oil pipes from
Rubbing each
Other to avoid pipe damage. Make sure that the oil pipe is replaced in the without
Pressure condition. ( the value of pressure gauge should be zero)
Replace the hydraulic oil in oil box about 1500 hours after original using of this new machine or after heavy repairing. After that time, replace oil every 2500 hours to
3000 hours.
Clean oil filter when the new machine or the replacing oil has been used for 500
Hours, or the noise emitted from oil pump increases. When replacing new oil,
Please fully clean oil box. Fill new hydraulic oil,
Whose min. Level should be beyond the oil filter level about 30mm, max. Level
Should be 30mm lower than box upper cover. Keep the electric parts clean at any time. Clean machine after stopping use every day, by the way check and tight
Screw if it is needed. Stop motor if the machine isn't used, excepting warm the
Machine in morning. Every sliding parts and the parts with lubricant oil filling hole,
Should be filled with oil one time a week. Every one to six months check nitrogen
Gas pressure in the accumulator. If it is lower than 10kg/cm2, please add nitrogen gas ( make sure to use nitrogen gas, any other kind of gas is prohibited in order to
Avoid dangerous).
Caution:
In order to prolong working life and get the best working performance, please use
High quality hydraulic oil. There are so many kinds of hydraulic oil in every country.
So our company commends following brand oil for reference: No 46 antifriction
Hydraulic oil with brand of china petroleum, shell oil, mobil, england bp and so on.
Motor Power: 1.5KW
Voltage: 380V
Frequency: 50Hz
Package Weight :1260kgs
Package Dimension: 182x112x221(cm) |
