| Prod Model: |
HD-B602-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accessory: |
One Set of Tension Fixtures |
| Warranty: |
One Year |
| Delivery Time: |
15 Days After Receive The Deposit |
| Resolution: |
1/100,000 |
| Accuracy: |
±0.5% |
| Test Speed: |
20-300mm/Min (Adjustable ) |
| Motor: |
AC Motor |
| Elongation Accuracy: |
0.001mm |
| Max. Stroke: |
750mm (Excluding Fixtures) |
| Display Device: |
Microcomputer |
| Type: |
Tensile Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
200kg |
Product Description

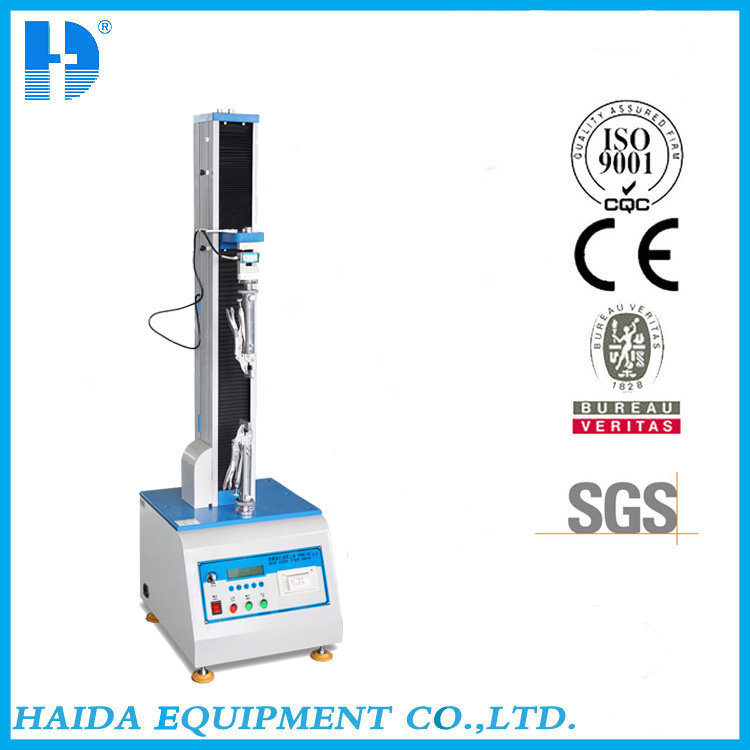

Desktop Universal Zipper Tensile Strength Testing Equipment
Product Description
This series of Desktop Universal Tensile Test Strength Apparatus is widely used in wires & cables, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on,
Feature:
Tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Main Parameters of Desktop Universal Tensile Test Strength Apparatus:Standard Features | Item | Description |
| Max. Force | 200 kg (2KN) |
| Load cell | China brand load cell |
| Control system | Controller with LED |
| Printing | Built-in Printer |
| Motor | Adjustable-speed motor, ball screw rod |
| Force reading | KG/N/LB |
| Stoke | 900mm including fixture |
| Load cell Resolution | 1/100,000 |
| Load Precision | ≤1% |
| Test speed | 50~300mm/min (adjustable byrotary knob) |
| Data display | Max. break force |
| Safety features | Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat |
Applications
This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps for paper, tape, film, etc.
Features of Desktop Universal Tensile Test Strength Apparatus:1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
2. Control system: Microcomputer
3. Displacement resolution: 0.001mm

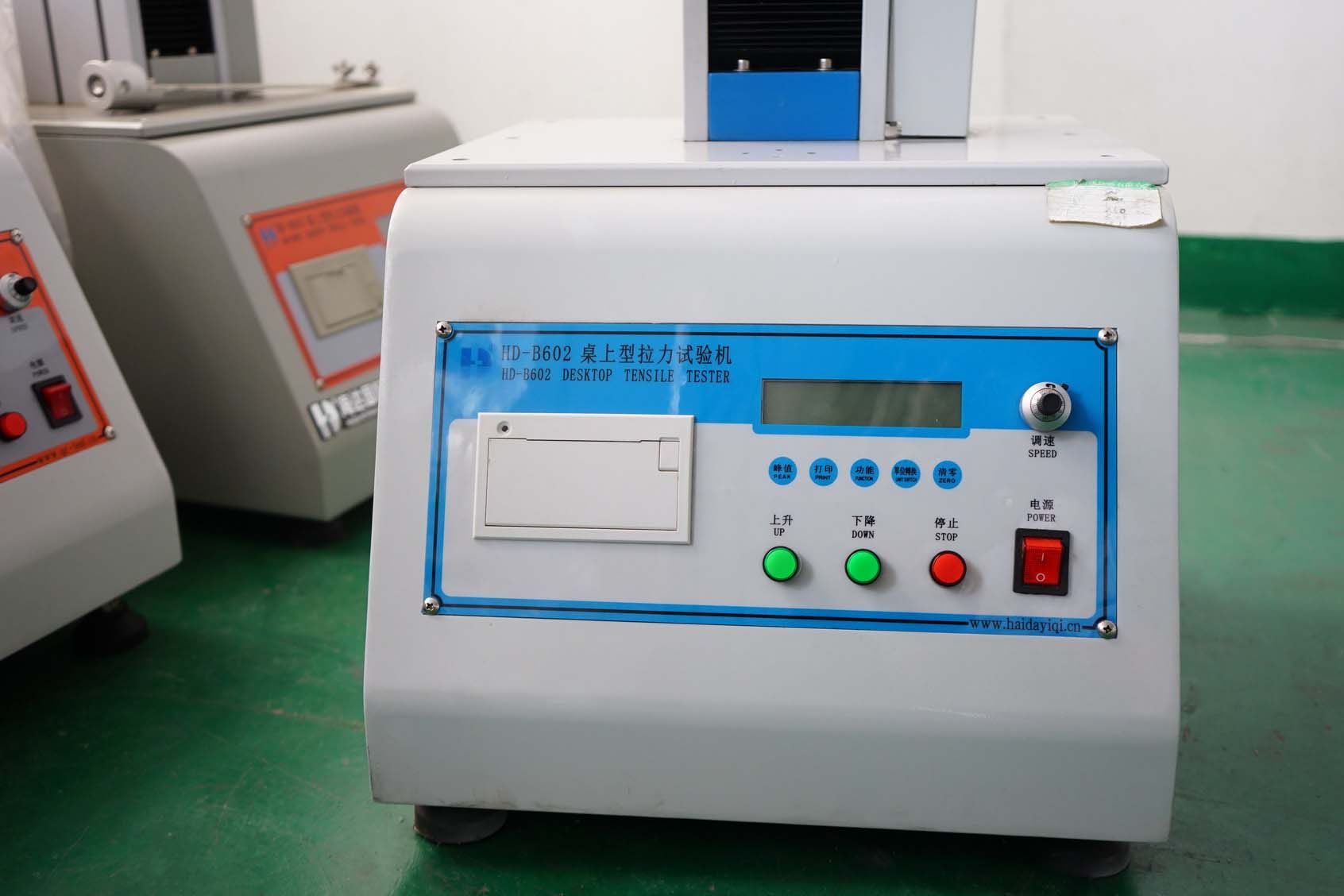

4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.Desktop Universal Tensile Test Strength Apparatus view:
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con. Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
