Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CIF,CIP |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Item No. | STC-SD05 | Voltage | 110V/220V |
Temperature range | 0-399 °C | Time range | 0-999Sec |
Power | 2200w | 2800w | 3500w |
Weight | 27kg | 32kg | 38kg |
Packing size | 74*48*44cm | 83*61*44cm | 81*71*45cm |
Working size | 38*38cm | 40*50cm | 40*60cm |

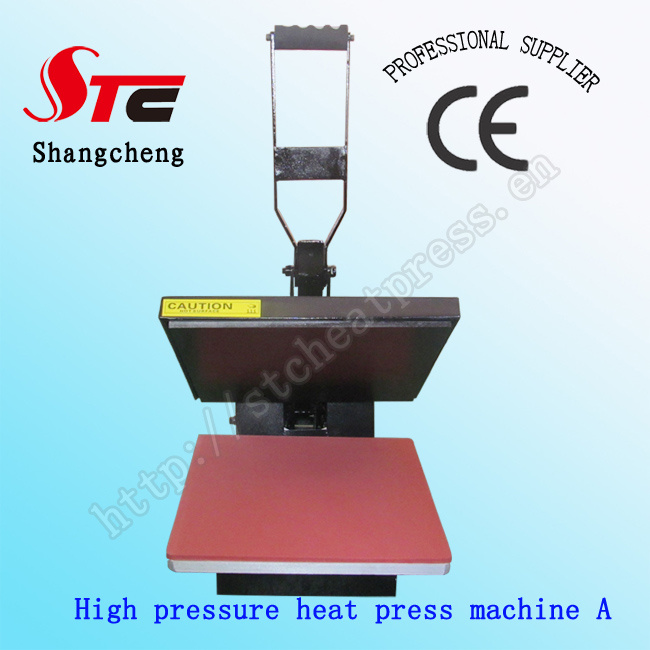

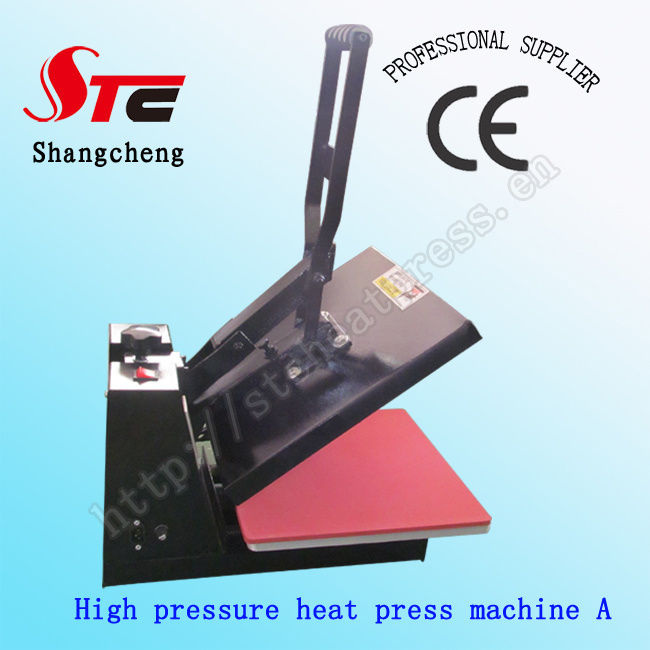

PRODUCT DISPLAY:
1. Digital time and temperature control,and signal indicator after process complete.simply operation
2.The heated thread and heated board in whole, safe, durable ,thermostat distribute uniformity;
3. Based on kinesiology design, equality pressure,The pressure can be adjusted freely according to you need.very convenient.
4. Adopt TEFLON & high temperature fabric as anti-adhesive clad layer for heating plate,prevent the clothes
burned yellow, easy to clean,can be
replaced,without loss can work permanently.
5.Fix high temperature resistant froth silica pad on the work table ,it can bear maximum 350ºC without any distortion,more smooth,good heat transfer effect.
6. Energy saving machine,easy to use.
READ BEFORE OPERATING:
Operation procedures
please note:Users should operate the machine with ground wire connected for safety!
1.Check the voltage before using it.Then turn on the power supply!
2.Plug in,turn on the power switch of machine,the power indicator lightened.
3.Set the thermostat to the temperature needed (Normally 120-200ºC),set the timer to the needed.(Normally 5~20Second).
4.Place the clothes to the main plate,cover the printing paper(please note the right surface of the paper).Press the handle down until reach terminal.
5.When the time come down to over,the buzzer alarms,pull the handle back.
6.If it is cold-ripping of the transfer paper,please use blackboard wiper to rub against the whole transfer paper,wait for 5-10 seconds,then rip off the transfer paper.If it is the hot-ripping of the transfer paper,you can rip off immediately after printing.
Temperature & Time | |||||
Materials | Temperature | Time | |||
Sublimation heat press printing | 200-220°C | 25s | |||
Plastic sheet heat press printing | 160-180°C | 8-10s | |||
Foaming material heat press printing | 140-160°C | 5-8s | |||
rhinestone heat press printing | 180°C | 10-12s |
Please note : successful print requires right time,temperature and pressure,the thickness of the clothes material,even the type of printing paper,all will affect the performance of printing.Any kind of sublimation paper need test before mass production.
HEAT PRINTING DEFFECT SHOW:
WARRANTY:
You can rest assured ,we offer good after-sale service: The machine enjoy one year warranty,life-long maintenance service and Life-long on-line technical support , and provide free parts when problems occur within one year not including shipping cost.we also offer good quality: All the machine of our factory have been approved by CE.
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal.
30%deposit,70% the balance will be paid before shipping.
Delivery Detail:
7 days after you confirming order.
PACKAGING:
SHIPPING:
If you order little quantities(below 100KG),you could use DHL,TNT,UPS or other air express company to delivery your goods, delivery time usually 3-4working days, they will send the products your ordered to your address.
If you order large quantities, you'd better choose sea delivery.
1,If you have your own shipping agent, then we will contact with them and make sure the shipping details for you .
2, In case of you don't have your own shipping agent, don't worry, we will ask our shipping agent to do all the things for you.
3, After we ship the machine, we will give you the documents right now.
4. you need to go to your nearest seaport to take your goods, delivery time usually 30-40days. For more details, please contact with us.
MAINTENANCE:
1.Pressure:If the pressure is not enough or too large,please adjustable pressure nut,(+)direction of increasing pressure;(-)direction of a reduction of stress.
2.Time:When the time is over,the buzzer does not work or out of order,check the contact of the sensitive switch at the tail of the machine.If it is not proper,adjust it to proper position.
3.Temperature:If the machine has been started for several minutes,there is no heating from heating plate,check the circuit.
4.The machine adopt eccentric bearing,the pressure is not allowed to be adjusted too large,in case cause damage to bearing.
5.If any quality problem please contact our company.
About Our Factory:
CONTACT INFORMATION:
Chinese website2: http://stcby.taobao.com
Eagle Wealth Enterprise Limited
Dongguan STC Machinery Equipment Co.,Ltd
Address: Jinsha East Road,The Fourth Industrial Zone,Xiagang,Chang'an Town, Dongguan City,Guangdong Province,China
Prod Model: | STC-SD05 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Condition: | New |
Certification: | CE Certificate |
Supply Ability: | 1000 Set/Sets Per Month 1000 |
Plate Type: | T Shirt Printing Machine |
Model Numbe: | Stc-SD05 |
Automatic Grade: | Manual |
After-Sales Service Provided: | Overseas Service Center Available |
Place Of Origin: | Guangdong, China (Mainland) |
Brand Name: | Stc |
Usage: | Fabric, T-Shirt, Mouse Mad, Jackets, etc. |
Type: | Ink Jet |
Structure: | Platen Press |
Plate: | Lithography Printing |
Color & Page: | Multi-Colour Printing Press |
Printing Speed: | 6.7CPI |
