| Price: | US $ 5-30/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | PF-861 Yellow |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: | Bolliya |
| Coating: | PVDF, PE, Feve |
| Width: | 1220mm 1500mm 1575mm 1750mm |
| Length: | 2440mm 4880mm 5000mm 5800mm |
| Thickness: | 2mm 3mm 4mm 5mm 6mm 10mm |
| Aluminium Skin: | 0.2mm 0.3mm 0.4mm 0.5mm |
| Surface Finishing: | Coating |
| Panel Thickness: | 4mm |
| Aluminum Thickness: | 0.5mm |
| Function: | Anti-Bacterial |
| Usage: | Advertising |
| Certification: | ISO |
| Coating thickness | ECCA-T1[1995]Comply with customer standard | Kynar 500, 70%+ FC resin 28um + | ||
| Gloss Deviation | ECCA-T2[1995]30 (60 °) +/- 5 E | Gloss | 10% | |
| Colours Deviation | ECCA-T3[1995]ΔΕ≤0.8(CIE - L a b - system) | ΔE | 0.4-0.5 | |
| Pencil hardness | ECCA-T4[1995] ≥H | 2H | ||
| Impact resistance test | ECCA-T5[1995] 1 kg of weight falls from specified heigh | No detainting no cracking | ||
| T-Bending | ECCA-T7[1996] 0T Without severe cracks | 1T | ||
| Coating adhesive | Not lower than class 1 | Not lower than class 0 | ||
| MEK-test | ECCA-T11[1999] | Over 200 | ||
| Acid Resistance | 70% HNO3 30mins | ΔE< 5% | ||
| Boiling test | Bended sheets 1.0T after 5 minutes in boiling water | Without cracks | ||
| Tensile Strenght | 155-180(MPa) | ≥155 | ||
| Yield strength | ≥130MPa) | ≥130 | ||
| Elongation | ≥3% | ≥3% | ||
| This test resulte is randomly tested by internal QC department and result in average datebase. | ||||
Painting: Kynar 500 PVDF resin with quality dying material only from PPG or Beckers.
2-3 coating system as one of PPG's authorized coater in China
Color remain bright and vivid after long time duration even under server weathering considtion.
Why Kynar 500 PVDF coating? The one and only resin human could find can survive server neveda desert environment. PPG is the oldest PVDF resion supplier in the world, and they are famous for colorful and durability of dying materials. Choosing Bolliya aluminum composite panel means the everlasting of your building.
Color: More than 30 standard colors and customerized colors available. Strict ΔE control.
ΔE means the color coherence control in same or different batch, eash the pressue on client's stocking plan or supplying line.

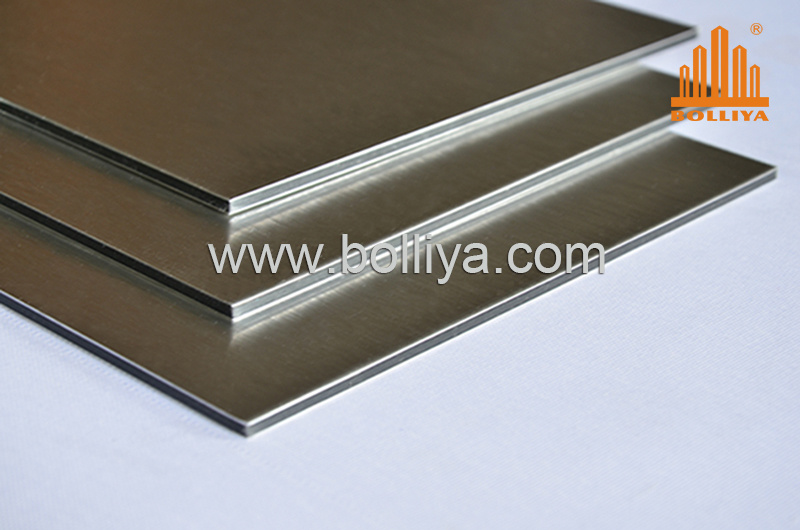

Core: PE flexible core or FR core

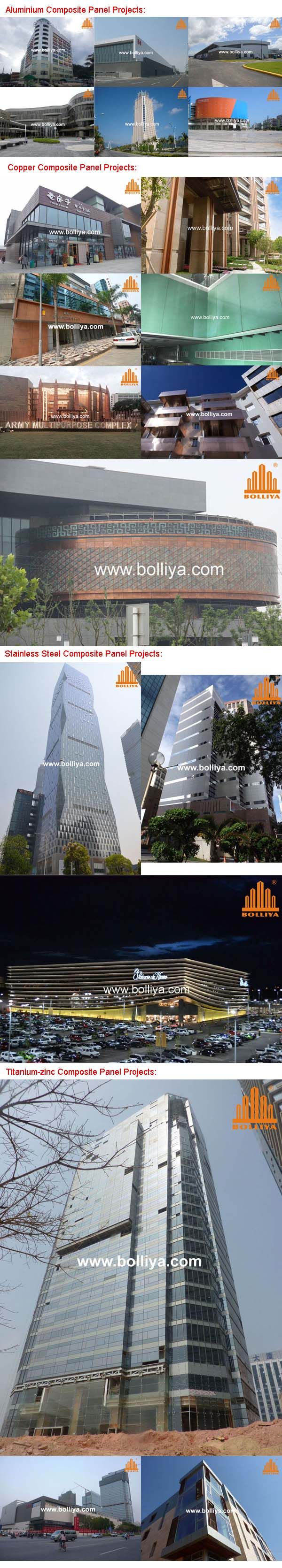

BOLLIYA Product Ranges and typical project references:

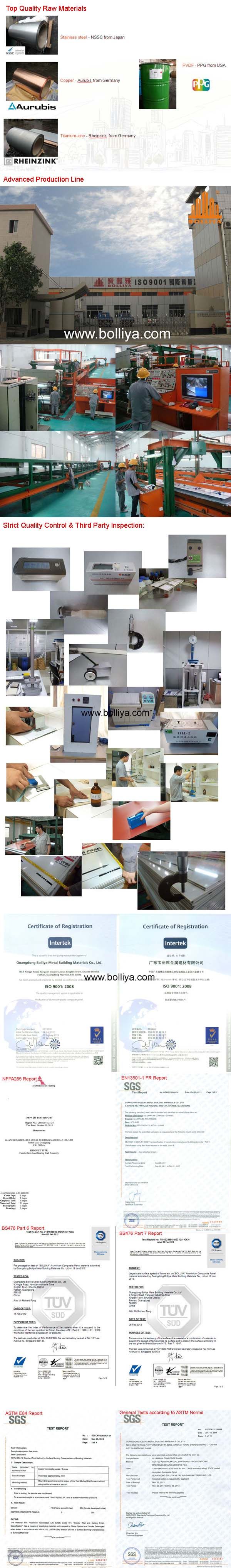

How does one piece of satisfactory composite panel be made? Composite Metal Material simple in looks but sophiscated to make.
1, It takes quality raw-materials:
Core Material:
We need pure, flexible, rigid and silky core material to support the top and back metals. Quality LDPE and FR material are our major choice. 100% LDPE Non-toxic, Rigid and Flexible. B1 Standard FR core (EN13501-1 certified) is another option
2, It takes superior coating and lamination technology:
Bolliya coating line is 160m in length, 3 coat-2 baking system, Line speed, 30 meter/min. It features in efficiency and accurate. Top 1 in Southern China.
Bolliya Lamination line is the one of the few lines in China use direclty lamiantion techonology, hereby we guarantee the speed, paneling effect, accuracy and the vastly avoid the chance of delamination. It also give us possibility to produce new metal panels.
It also features in:
1, Fast in Speed. 5-6 times of traditional Lamination line.
2, Smooth working and superb paneling effect.
3, Special Metals Composite.
4, FR composites.
5, Energy Saving and environmentally-friendly.
3. It takes international management and QC system:
ISO9001 is our basic way to rule the run of whole company, and we also introduce ISO14001 to tribute more green to the world.

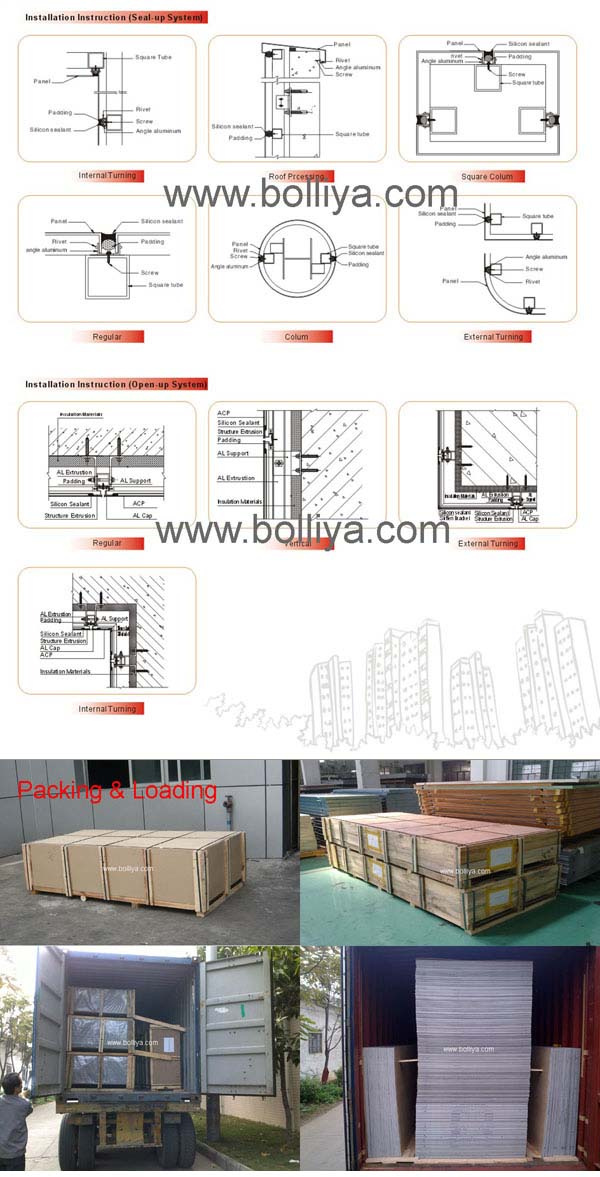

Installation Instruction, packing and loading:
