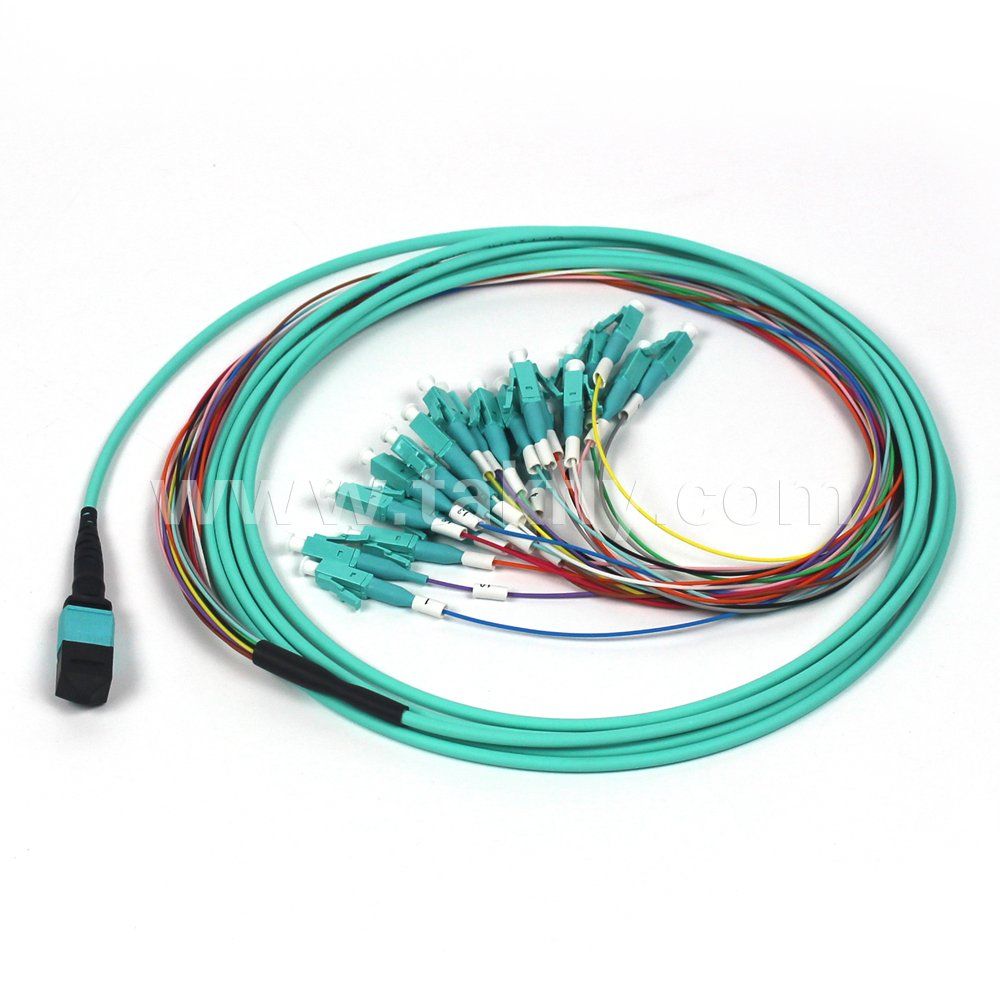

Direct Harness MTP-LC 24cores Fan-out Patch Cord
Description:
MTP/MPO hybrid transitions are terminated with MTP/MPO connector on one end & Standard LC, FC, SC, ST, MTRJ, MU connectors on other end to meet a variety of fiber cabling requirements. Such patch cords are widely used to interconnect with the current installed base of transmitters, receivers and patch panels.
Applications:
Used for interconnection or cross connection in local fiber transmission links, data centers, backbone, CATV networks, various kinds of testing and self-control system.
Features:
Factory pre-terminated, eliminates the need for field terminations or splices, reduce installation time & save on-site labor cost
8 or 12 fibers for option
SM 9/125, MM 50/125 or 62.5/125, MM 10Gig fiber cable available
Full range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available
PC, UPC or APC end-face polishing for all discrete connectors
Customized length, staggering, connector type, breakout style(0.9mm or 2.0mm), and labeling
100% factory tested with complete test results
Pulling eye available for connecter protection, easy and quick installation
Competitive Advantage:
Work team with over 10 years experience of fiber optic patch cord producing
UL and RoSH certified cables and connectors used
Quick delivery time to support customer to win more business
More cable types, jacket color, fan-out, labeling available
OEM service available
| Single-mode (APC) | Multimode(50/125,62.5/125 or 10Gig) |
| Insertion Loss |
| Standard Models, Typical | 0.35dB | 0.35dB |
| Standard Models, Max | 0.7dB | 0.7dB |
| Low-Loss Models, Typical | 0.25dB | _ |
| Low-loss Models, Max | 0.5dB | _ |
| Return Loss, Min | 45dB | _ |
| Durability, ≤0.3dB Change | 500 mating cycles |
| Vibration, ≤0.3dB Change | 10 to 55 Hz |
| Temperature, Storage | -40C to +80C |
| Temperature Cycling, ≤0.3dB Change | -40C to +80C |
| Thermal Aging, ≤0.3dB Change | 14 days @ +85C |
| Humidity, ≤0.3dB Change | 95% Rh @ +60C |
