| Prod Model: |
chock block CB25, CB40,CB50,CB65,CB90,CB100,CB150 |
| Type: |
Alloy Steel Bar |
| Standard: |
ASTM |
| Surface Treatment: |
Polished |
| Special Use: |
Wear Resistant Steel |
| Composition: |
Domite |
| Technique: |
Cast |
| Application: |
Wear Protection |
Product Description
Hyster Material Technology Co., Ltd., mainly manufacture and export bi-metallic wear blocks/bars(15/3CrMo, 700BHN-63HRC) overlay wear plates, Ni-hard wear liners, Tungsten carbide wear parts, Shredder hammer tips, knife edges and precision casting parts for Mining, Quarrying, Cement, Concrete, Sugar, Re-cycling and other heavy industries for more than 20 years. We can also provide professional wear solutions for your application.
Typical Products: Chocky wear bars and Wear buttons, Bucket attachments, Wear liners/plates, Standard wear bars, Shredder/Grander hammer tips, Overlay wear plates, Skid bars, Knife edges, Crusher parts, Precision castings and other wear parts etc.

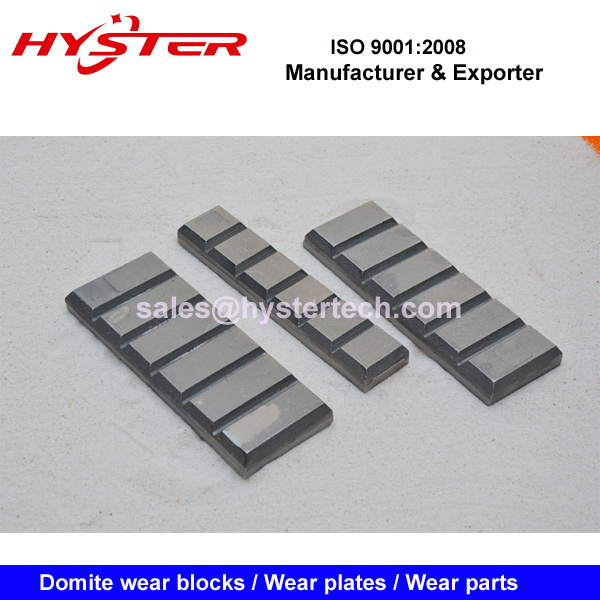

Chocky BarsThe unique, formable design of Hyster-Wear chocky bars are available in various lengths, grades and sizes and can also be customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.
They are easy to use and install. They can be bent, cut and formed to suit different surfaces.
The standard thickness of chocky bars is 23 mm, standard length is 240 mm, width could be from 25mm from 150mm. We can also produce according to your special requests.

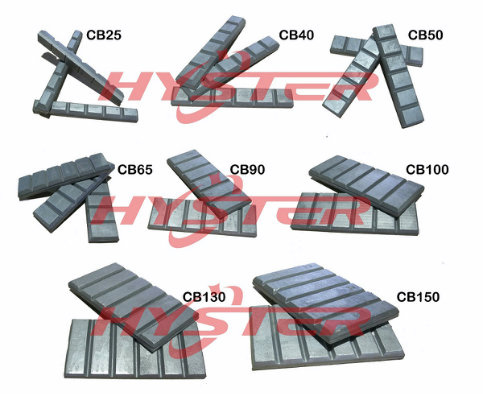

| Item No. | Size(mm) | N.W.(kg) |
| CB 25 | 240X25X23 | 0.9 |
| CB 40 | 240X40X23 | 1.5 |
| CB 50 | 240X50X23 | 1.9 |
| CB 65 | 240X65X23 | 2.5 |
| CB 90 | 240X90X23 | 3.5 |
| CB100 | 240X100X23 | 3.9 |
| CB 130 | 240X130X23 | 5.4 |
A. Material:
Wear portion is Domite, white iron(high chrome carbide). ASTM A532 15/3CrMo.
Impact portion is mild steel.
B. Chemical: C 2.5-3.5; Cr 15-18; Mo 0.5-2.5
C. Mechanical Property:
1) Tensile Strength 630Mpa Min.
2) Shearing Strength 250Mpa Min.
3) Hardness 63 HRC'

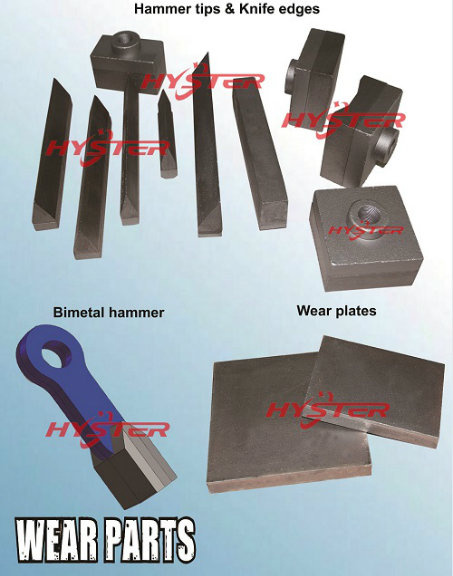

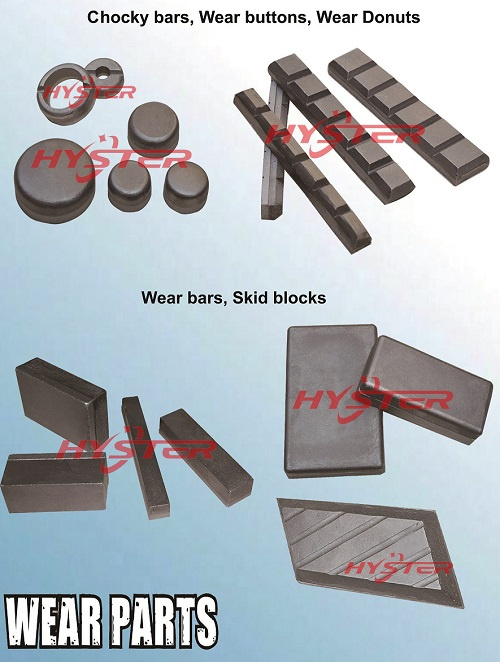

Following are our laminated wear blocks:Laminated wear blocks---the most common types are: 1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150) 2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 ) 3) Shaped wear bars 4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196) 5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm) 6) Bi-metallic wear plates 7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm) 8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm) 9) Wafer strips, WS25, WS40, WS50, WS65;
10) Elbow wear blocks
11) Other sizes and shapes
12) Multi-function gradient cutter tooth

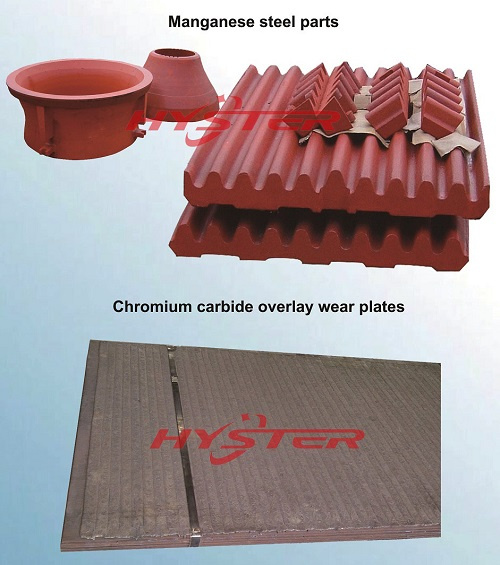

13) Rockbox liners 14) Micro-ledgesOverlay wear plates: standard sheet size 1500x3000mm, thickness 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+10(20mm), 12+12(24mm), 12+17(29mm).
RFQ:
Q: Are you trading company or manufacturer ?
A: We are ISO9001:2008 Certificated factory, real manufacturer, not trade company.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. or it is 15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% in advance,balance against copy of B/L, payable via T/T.
If you have another question, pls feel free to contact us as below:
Hunan Hyster Material Technology Co., Ltd., formerly name is hyper casting parts Co., Ltd., is an independent international supply, design and engineering company, in operation since 1995, we specializes in high quality of wear products.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
Some of our products and services:
--Wear plates, wear liners
--Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery
With strict management system and strong technical base, Hyster Corporation is committed to provide high-quality products and services for the fields of Mine and Mining, Quarrying, Electrical power, Cement, Sugar, Aviation, Marine, Railway, Engineering plant and Petroleum machinery industries.
Quality is very important to the development of Hyster Corporation. The company strictly operates according to ISO9001: 2000 quality management system. Over 95% products have been sold to Australia, Canada, South Africa, Brazil, America, Chile, Indonesia, Argentina, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.
Moreover, breaking out of the traditional practice that only provide OEM products, our company has created the new sales concept whose main points are providing solutions, terminal products and customer services, which enables us to better fulfill customer specifications in a positive manner.
Please contact us directly with any questions or inquiries!
