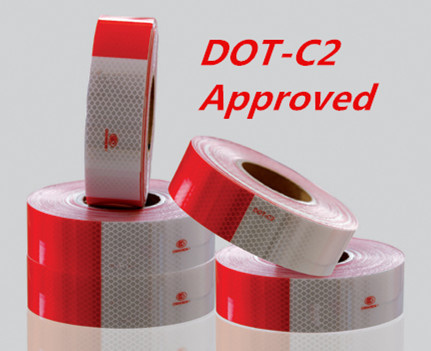

CTP-100 Vehicle Conspicuity Reflective Tape
CTP-100 Conspicuity Retro-reflective tape is approved by DOT-C2, made of High Intensity Prismatic Grade. This tape is highly reflective, weatherproof, self-adhesive film with excellent resistance of corrosion and solvent.
Technical data:
| 1.Surface Film: PMMA |
| 2.Type of Adhesive: Pressure-Sensitive Type |
| 3.Liner: PE film |
| 4.Thickness of Film:0.075mm, |
| Thickness of Glue: 0.05mm. |
| Thickness of Capsule and Base: 0.06mm |
| Total thickness of product: 0.45mm |
| 5.Operating temperature: 20 -28ºC |
| 6.Working temperature: -20ºC --- 80ºC |
| 7.Durability:10years |
8.Coefficient of Retro-reflection:
| Observation Angle | Entrance Angle | Values Coefficient of Luminous Intensity |
| WHITE | YELLOW | RED | GREEN | BLUE |
| 0.2° | -4° | 685 | 506 | 133 | 132 | 65 |
| 15° | 668 | 498 | 105 | 128 | 61 |
| 30° | 459 | 289 | 90 | 69 | 50 |
| 0.33° | -4° | 492 | 485 | 124 | 128 | 53 |
| 15° | 540 | 431 | 108 | 119 | 49 |
| 30° | 340 | 197 | 60 | 63 | 11 |
9. Application:
Trucks, trailers,school bus and other vehicles required.
10.Package:
Standard size: 5cm*50y/roll
Inner packing: poly bag,shrinkable wrap or color box
Outer packing:export carton
Box Dimension: 43cm*22cm*31cm
Delivery: 10-15 days after payment
JINHUA HIGHVIZ IMP. & EXP. Co., Ltd is a leading manufacturer and exporter engaged in the research, development and production of reflective products and safety products in China. Our products mainly include:
(1) Reflective Materials for PPE: Reflective fabric, reflective tape, flame retardant reflective tape, elastic reflective fabric, colorized reflective fabric, reflective transfer film, PVC reflective tape, reflective piping, reflective webbing, reflective armbands, reflective toys, etc.
(2) Reflective Materials for Road Safety: Prismatic Reflective Vinyl, High Intensity Grade Reflective Vinyl, Engineering Grade Reflective Vinyl, Digital Printable Reflective Vinyl, Photoluminescent Film, DOT-C2 Conspicuity Reflective tape.
(3) Protective Uniforms: Reflective Safety Vest, High Visibility Jacket, Industrial Rainwear.
(4) Personal Protective Equipments
(5) Road Safety Equipments
With year's experience and continuous innovation, our quality confirms with many international strict standard such as ISO9000, EN20471, ANSI/ISEA-107, EN469, EN533, NFPA1971, OKE TEX-100, DOT-C2, EN12899, ASTM D4956.
HIGHVIZ has exported safety products to more than 50 countries worldwide. We will continue to keep high quality, offer better services and creating greater safety value for workmen all over the world.
