Product Description

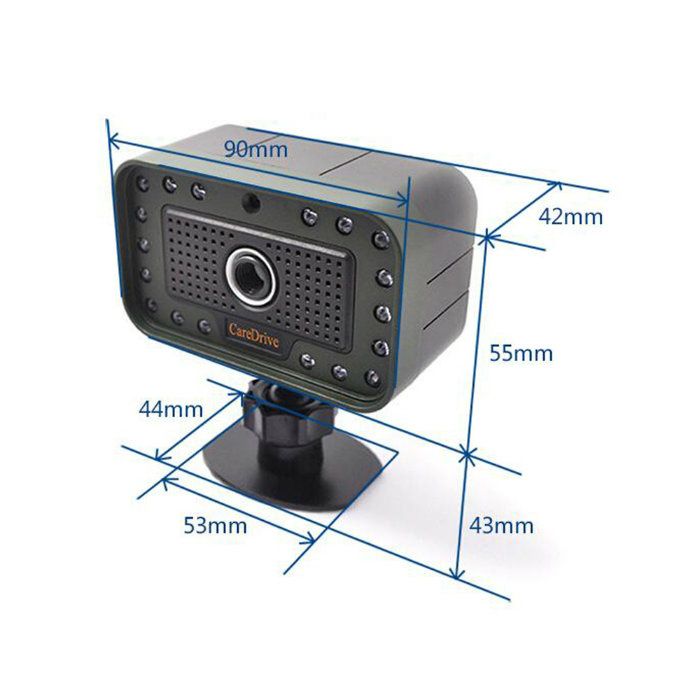

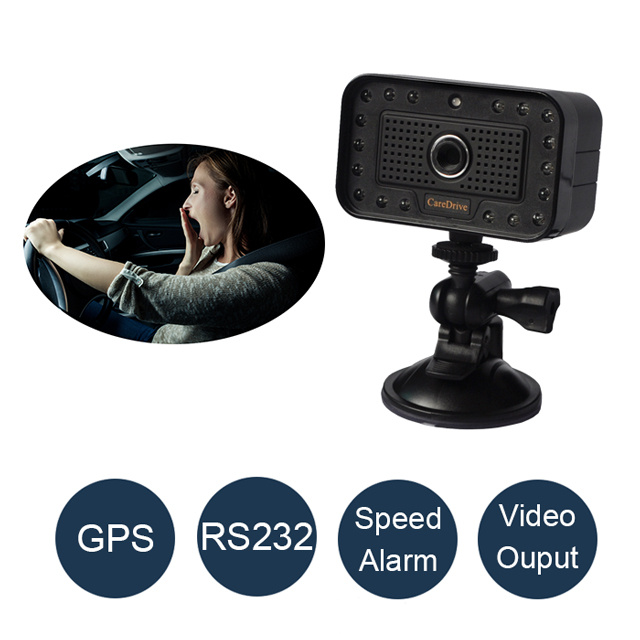

Brief Introduction of Driver Fatigue Monitor MR688:
Driver Fatigue Monitor MR688 is a driver and vehicle safety product which can accurately predict and warn driver's sleeping during the driving to protect driver's life and avoid the damage to the vehicle. It can also connect with GPS system and send the fatigue information to the fleet management center for mangers to make better management strategies in accordance with the driver's performance and save more cost for the enterprises. We started this product with military, and now lots of military, mining and government's vehicles are using our product MR688.
Product Function:
| Function | Standard Version | Professional Version | RS232 Version |
| Sensitivity | Adjustable | Adjustable | Adjustable |
| Volume | Adjustable | Adjustable | Adjustable |
| Over Speed Alarm | No | Yes | Yes |
| Low Speed No Alarm | No | Yes | Yes |
| Alarm Image Output | No | No | Yes |
| Signal Interface | No output | Level output | RS232 |
| Video Output | No | Optional | Optional |
Product Parameter:
| Product Name | Driver Fatigue Monitor |
| Product Model | MR688 |
| Patent No. | 201029044149.4 |
| Software Copyright No. | 2009R11L098079 |
| Core Technology | Face recognition and pupil detection technology |
| Operating Voltage | DC 12V/24V |
| Minimum Operating Voltage | 9V |
| Maximum Operating Voltage | 32V |
| Working Current | 12V power, about 100mA
24V power, about 60mA |
| Working Temperature | -10ºC ~ + 50ºC |
| Storage Temperature | -45ºC ~ + 80ºC |
| Detection Distance | 60-90cm |
Product Features:
1. early warning for fatigue and distraction driving status
2. non contact detection
3. suit for all vehicles
4. work around all day, under any weather
5. can be used with glasses and sunglasses
6. distinguish real doze or fake sleep, effectively reduce false warning.
7. easy to be installed and used.
Product Function:
1. in time driver fatigue warning alarm
2. distraction driving (look around) warning alarm
3. overspeeding driving warning alarm
4. integrate with fleet management system
5. output alert signals or images or videos to fleet management system
Working Principle:
Detect pupil's changing characteristics, analyse eyes' fatigue condition
Installation of Driver Fatigue Monitor:
Sit in the normal driving position.
If the green light is on or twinkling, indicating that the driver has been detected in opening eyes.
If the green light is still on or flashing when the driver moves a little distance from left to right and down to up, indicating that the installation location is more reasonable.
Flashing Green light is normal while driver open eyes, especially for the driver rimmed spectacles.
If there is some shielding, the green light will be flashing.
Integration of Driver Fatigue Monitor:
1. Connect with Vibration Cushion
When driver fatigue monitor mr688 outputs warning alarm, vibration cushion will shake to warn the driver to pay high attention to the road at the same time.
2. Connect with Vehicle Management System
Driver fatigue monitor MR688 can output warning signals or images to AVL system to monitor driver's real time status and realize a better fleet management.
Packaging & Shipping
Packaging:1pc packed in one color box, 20sets packed in one 7-ply carton box.
Our Services
Accepted Payment Method:
30% deposit in advance, 70% balance before shipping
T/T: generally for bulk orders
Paypal and Western Union: for sample orders
L/C: for order amount over US$50,000 only
Other Services:
A. accept OEM and ODM
B. customize logo and package
C. provide various flexible solutions
D. in time technical support and after sales service
E. fast delivery time
F. long quality warranty
G. MOQ: 1pc
Company Information
Brief Introduction:
Since established in 2000, Hao Nai Industrial Co., Ltd devotes to guide the vehicle industry revolution through computer vision technology. Hao Nai's sophisticated technology brings advanced and safe driving experience to drivers, and provides the world leading vehicle safety management solution for commercial fleet. Hao Nai continues to draw into talents and innovative technology, we cooperate with Beijing Tsinghua University and South China University of Technology and established the vehicle active safety R&D center. Now Hao Nai owns independent R&D center and experienced R&D team, the core technicians have years of development experience on vehicle intelligent electronics and visual technology. In accordance with the demands of the marketplace, Hao Nai have independently developed multiple versions of driver fatigue monitor and anti-collision warning system, which are compatible with different types of vehicles. The well-know brand "CareDrive" under Hao Nai has been a high-end brands in worldwide road safety field. After years of effort, CareDrive products have been successfully sold to 150 countries, we have won the trust and support from many well-known customers in different professional field of the world.
FAQ
1. Is the infrared light harmful to my eyes and body?
No at all, the average light outlet power is less than 0.2W, and mostly died down when spreading in a 30°angle and meter distance, less than 1/10 of indoor nature light, just because the infrared light can't been seen when mixed with other lights, you don't aware the existing.
2. I'm worry about too many noisy alarms.
Don't worry, the device have 4 level sensitivities, the lowest level mainly alarm for the real sleeping, looking around need 3-4 seconds to trigger the alarm, nobody will do it so long when driving on the highway.
3. If I must drive under fatigue status, is this unit useful?
Yes, some trunk drivers always drive under fatigue status, some people used to dozy when driving in on the highway, or if you have sleepless night but must drive today. MR688 will detect the fatigue driving, giving out alarms in the instant of dozing off to wake you up.
4. Is it difficult to install?
No, it's very easy, just stick the main unit in front of the driver, and connect power from cigarette socket, no need any engineer or garage!
5.Can it connection to the vehicle power supply?
For professional applications such as vehicles team etc. ,MR688 has a cable for direct connection to the vehicle power supply.
6. Will it influent my sight? Did I need to look at it?
No, it's much smaller than a GPS navigator, and no need you to stare at it, just leave it alone after you have adjusted the angle toward your eyes.
7. What's your advantage comparing to the other driver fatigue alarm system?
There are 3 kinds of fatigue alarm system on the market:
Nap zipper, it judges the fatigue status only from the driver's nod. But more people don't nod at all when driving sleep. And some people used to nod when taking or singing. So the accuracy is very low.
Lane Departure Warning system, this system have restrict. If there is no line on the road, it's no use at all. As we know, there is too much road without any line, or only 1 line in the middle, or the line is broken, all of those will influent the accuracy.
In the Straight, when the Lane abnormal, the driver may be have sleep too long to can not be wake up.
Collision Prevention, this kind of products always use image, millimeter waves or laser light to calculate distance between your car and front/back car.
But the driver's reaction time is different, when driver awake and Sleepy. It shall be more alarm when driver awake, or alarm too late when driver in sleepy.
Image detect will be influenced by light and raining weather. Millimeter is too huge size and low accuracy. Laser light will Hurt the other driver's eyes.
And all of those products are detecting the behavior of fatigue, but some of drivers will keep driving in straight line and same speed after dozed off 10-20 seconds, it's very dangerous if there is any overtake, obstacles or passengers. Our product MR688, waking up the driver in the doze off instant, much more efficient than those products.
8. Why the device don't alarm when I closed my eyes?
There are 3 reasons:
First, the device need to recognize the driver's face in the first 10-20 seconds after powered on, it can't be triggered in this period.
Second, the device is smart, if you have big body movement, or speaking, or turned you head, it will recognize that you are in sober status and wouldn't give our alarms until 5-7 seconds.
Third, you are too near, far, low or high, means you are not in center of the camera's shot area, please adjust your seat and the direction ball.
On the other hand, if you have no movement, speaking, driving in a high speak, and your eyelid is lower and lower, it will give out alarms in 2 seconds as long as your eye closed or pupil can't be detected.
