Prod Model: |
RF-331 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mesh: |
3-400 |
Woven Type: |
Dutch Woven |
Material 1: |
Stainless Steel Wire304 316 |
Mesh1: |
12/64mesh to 314/2235m |
Material: |
SUS304 |
Hole Shape: |
Square |
Application: |
Filter |
Type: |
Stainless Steel Dutch Wire Mesh |
Material Type: |
Stainless Steel Wire |
Weave Technique: |
Twill Dutch Weave |
Wire Mesh Width: |
2m |
Technique: |
Woven |
Nickels: |
8% |
Certification: |
SGS |
Product Description
Hot Sales Stainless Steel Weave Filter Wire Cloth
Brief Introduction
1,With 25 year of experience in domestic trade and the growth of foreign trade experience,we prefer LONG-TERM CORPORATION WITH YOU!
2,Main Product Lists(superior quality stainless steel 302,304,316,316L wire),
1)Dutch Weave Filter Cloth(Plain weave) Filter fineness from 320micron to 35micron,Mesh from 8x60 to 80x400.
2)Dutch Weave Filter Cloth(Twill weave)Filter fineness from 119micron to 3micron,Mesh from 20x250 to 400x2800.
3)Reverse Dutch Weave Filter Mesh(Twill weave),Mesh from 63x18 to 720x140,Width from 8cm to 130cm.
4)Reverse Dutch Weave Filter Mesh Belt(Twill weave),Mesh from 45x15 to 360x40.Width from 8cm to 130cm.
5)Stainless Steel Mesh,Mesh from 1x1 to 270x270(Plain weave) and from 300x300 to 635x635(Twill weave),Wire diameter from 0.02mm to 2.03mm
Description of Product |
Name of the Goods | Dutch Weave Filter Cloth |
Mesh | 200x600 |
Filter Fineness | 23micron |
Effective Area | -% |
Wire Diameter | 0.07x0.05mm |
Weight | 0.52kg/sq.m |
Width | 1m |
Length | 30m |
Application | Petroleum, chemical industry, food industry filter |
Product Name | type | specification | Dutch Weave Filter Cloth | DXRDW | plain dutch weave,twilled dutch weave,reverse dutch weave |
Product Content: Woven Filter Wire Mesh is also known as filter wire cloth ,micron wire cloth,wire cloth filter screens, micron filtration cloth, micronic mesh, wire filter mesh, micron mesh, filter wire mesh, filtering mesh, filter screen, micron filtering mesh, filtration screen, and micronic wire cloth,dutch weave mesh,hollander wire cloth,hollander wire mesh,hollander filter cloth. Typical Weaving Patterns for Woven Filter Wire Cloth products: Plain Dutch Weave,Twilled Dutch Weave,Reverse Dutch Weave General Use: Woven Filter Wire Cloth is mainly used in filtering and screening in airspace, particle separation and sifting fuel filters, hydraulic fluid filters, gas diffusers oil and chemicals. | | | | | | Woven wire mesh is usually made with four typical weaving patterns, that is Plain Weave, Twill Weave, Plain Dutch Weave and Twilled Dutch Weave,Reverse Dutch Weave. | Plain dutch weave | Twilled dutch weave | Reverse dutch weave | | | |
| | |
| Specification List of Dutch Woven Wire Cloth: | Table -1 Plain Dutch Weave Wire Cloth | | No. | Wire Dia. warp×weft (mm) | Reference Aperture (um) | Effective Section Rate% | Weight (kg/sq.m) | Mesh/Inch (warp×weft) | PDW28 | 0.71x0.63 | 315 | 14.2 | 5.42 | 7 x 44 | PDW29 | 0.56×0.40 | 211 | 16 | 3.89 | 12×64 | PDW30 | 0.45×0.35 | 192 | 15.9 | 3.26 | 12×76 | PDW31 | 0.45×0.28 | 249 | 29.2 | 2.57 | 10×90 | PDW32 | 0.63x0.45 | 300 | 20.4 | 4.04 | 8 x 62 | PDW40 | 0.50x0.335 | 250 | 21.5 | 3.16 | 10 x 79 | PDW45 | 0.45x0.315 | 275 | 27.3 | 2.73 | 8 x 85 | PDW48 | 0.45x0.315 | 212 | 20.6 | 2.86 | 12 x 89 | PDW49 | 0.50×0.30 | 198 | 20.3 | 2.85 | 14×88 | PDW55 | 0.40x0.28 | 180 | 20.1 | 2.56 | 14 x 100 | PDW56 | 0.0.35×0.25 | 177 | 22.2 | 2.28 | 14×110 | PDW60 | 0.40x0.28 | 160 | 17.6 | 2.64 | 16 x 100 | PDW65 | 0.28×0.224 | 145 | 19.2 | 1.97 | 16×120 | PDW68 | 0.35x0.25 | 160 | 23 | 2.14 | 17 x 125 | PDW70 | 0.35x0.25 | 140 | 16.7 | 2.37 | 18 x 112 | PDW76 | 0.315x0.20 | 133 | 21.5 | 1.97 | 20 x 140 | PDW80 | 0.35 x 0.25 | 125 | 15.3 | 2.47 | 20 x110 | PDW85 | 0.25×0.16 | 130 | 28.9 | 1.56 | 20×160 | PDW90 | 0.315x0.224 | 112 | 15.7 | 2.13 | 22 x 120 | PDW95 | 0.35×0.25 | 97 | 11.3 | 2.6 | 24 x 110 | PDW100 | 0.28x0.20 | 100 | 14.6 | 1.92 | 25 x 140 | PDW120 | 0.25x0.18 | 80 | 13.6 | 2.64 | 30 x 150 | PDW140 | 0.224x0.16 | 71 | 12.7 | 1.58 | 35 x 175 | PDW160 | 0.20x0.14 | 60 | 12.5 | 1.4 | 40 x 200 | PDW180 | 0.16x0.112 | 56 | 15 | 1.09 | 45 x 250 | PDW200 | 0.14x0.10 | 50 | 14.6 | 0.96 | 50 x 250 | PDW210 | 0.16×0.09 | 55 | 20 | 0.98 | 50×280 | PDW240 | 0.14x0.10 | 39 | 11.2 | 1.03 | 60 x 270 | PDW260 | 0.125x0.09 | 36 | 10.8 | 0.9 | 67 x 310 | PDW280I | 0.112x0.08 | 36 | 12.7 | 0.79 | 70 x 350 | PDW280II | 0.112x0.071 | 40 | 16.2 | 0.72 | 70 x 390 | PDW300 | 0.125×0.063 | 32 | 16.6 | 0.77 | 80×400 |
| Table - 2 Twilled Dutch Weave Wire Cloth | No. | Wire Dia. warp×weft (mm) | Reference Aperture (um) | Effective Section Rate% | Weight (kg/sq.m) | Mesh/Inch (warp×weft) | TDW119 | 0.355×0.28 | 118 | 12.1 | 4.58 | 20×200 | TDW200 | 0.25×0.20 | 119 | 17.6 | 3.14 | 20×260 | TDW240 | 0.28×0.18 | 110 | 19.6 | 3.01 | 24×300 | TDW250 | 0.28×0.20 | 77 | 11.2 | 3.41 | 30×250 | TDW340 | 0.28×0.16 | 89 | 17.9 | 2.84 | 30×340 | TDW350 | 0.18×0.10 | 70 | 23.5 | 1.73 | 40×560 | TDW300I | 0.112 x 0.08 | 30 | 10.2 | 1.39 | 80 x 700 | TDW300II | 0.112 x 0.071 | 32 | 13.4 | 1.26 | 80 x 790 | TDW320 | 0.10 x 0.071 | 30 | 12.2 | 1.22 | 80 x 790 | TDW360I | 0.10 x 0.071 | 25 | 9.6 | 1.24 | 90 x 760 | TDW360II | 0.10 x 0.063 | 28 | 12.7 | 1.12 | 100 x 850 | TDW400I | 0.10 x 0.063 | 22 | 9.6 | 1.15 | 100 x 850 | TDW400II | 0.10 x 0.071 | 20 | 7 | 1.26 | 100 x 760 | TDW500 | 0.071 x 0.050 | 17 | 9.5 | 0.88 | 130 x 1100 | TDW600 | 0.063 x 0.040 | 16 | 11.3 | 0.72 | 150 x 1400 | TDW630 | 0.063 x 0.040 | 15 | 12.4 | 0.67 | 160 x 1500 | TDW650I | 0.063 x 0.04 | 13 | 8.8 | 0.73 | 165 x 1400 | TDW650II | 0.063 x 0.036 | 14 | 11.2 | 0.68 | 165 x 1500 | TDW685I | 0.063 x 0.040 | 11 | 7.4 | 0.74 | 174 x 1400 | TDW685II | 0.063 x 0.032 | 13 | 12.9 | 0.63 | 174 x 1700 | TDW795 | 0.050 x 0.032 | 10 | 9.2 | 0.58 | 203 x 1600 | TDW800 | 0.05×0.032 | 8 | 3.8 | 0.63 | 250×1600 | TDW1000I | 0.040 x 0.028 | 8 | 8 | 0.5 | 250 x 1900 | TDW1000II | 0.040 x 0.025 | 9 | 10.6 | 0.45 | 247 x 2235 | TDW1125 | 0.036 x 0.025 | 7 | 7.2 | 0.45 | 280 x 2200 | TDW1225 | 0.036 x 0.025 | 4 | 4.2 | 0.44 | 300 x 2200 | TDW1280 | 0.036×0.025 | 4 | 4.2 | 0.46 | 325×2300 | TDW1600 | 0.028 x 0.02 | 4 | 4.7 | 0.36 | 400 x2700 |
| Table - 3 Reverse Dutch Wire Cloth | No. | Wire Dia. warp×weft (mm) | Absolute Filter rating (um) | Porosity rate% | Weight (kg/sq.m) | Mesh/Inch (warp×weft) | RDW18 | 0.40 x 0.60 | 210-230 | 60 | 4.21 | 63 x 18 | PDW20 | 0.24 x 0.60 | 210 | 58 | 3.38 | 107 x 20 | RDW40 | 0.20 x 0.45 | 130 | 58 | 2.74 | 170x 40 | RDW50 | 0.20 x 0.40 | 105 | 55 | 2.69 | 132x32 | RDW46 | 0.15 x 0.30 | 85 | 54 | 2.05 | 171 x 46 | RDW75 | 0.09 x 0.20 | 38-45 | 53 | 1.27 | 290x75 | RDW102 | 0.040x 0.16 | 40-48 | 41 | 0.92 | 615x102 | RDW130 | 0.04 x 0.13 | 18-23 | 49 | 0.85 | 625x135 | RDW150 | 0.035 x 0.10 | 16-20 | 54 | 0.6 | 720x150 |
| |
|
Stainless Steel Wire Mesh&Dutch Weave Filter Mesh
Service
Good faith, punctual, professional, responsibility
Offer
1,Superior quality
2,Best price
3,Sincere enthusiastic service
Shipping
For samples:
EMS, UPS, DHL, Fedex
For a large number of goods:
Shipping,FCL,partial shipment,transshipment,LCL

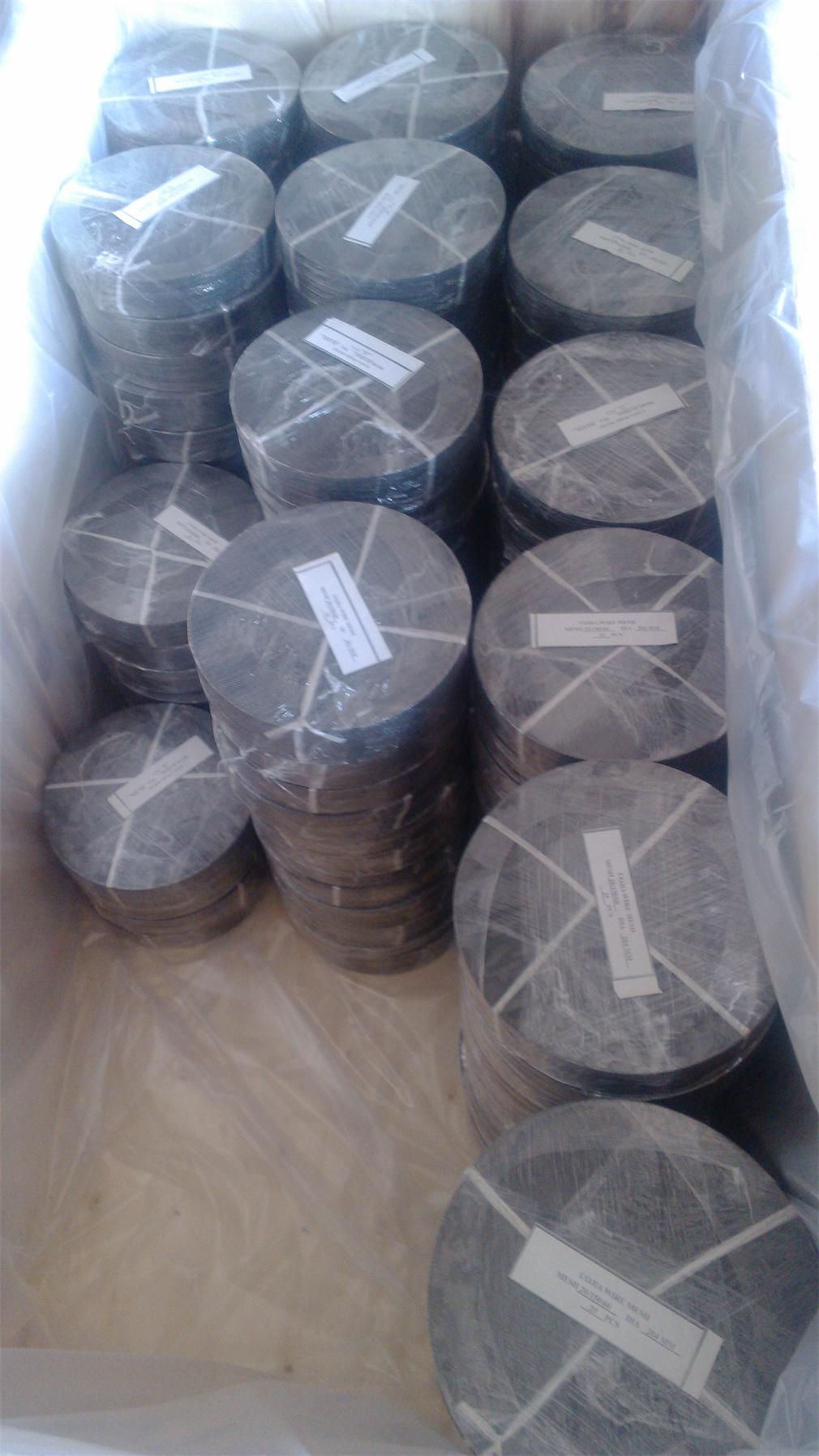

Packing
We provide:
Waterproof paper,Pallet,Carton
(Because of the different weight, the number of each case are also different.)
Other:
According to customers' requirements.
(If is beyond the scope of our packaging, may be a small part of the fee.)
Payment terms
1,L/C,T/T, Remit money,Western Union,etc.
2,30% advance,70%balance before shipment.
