| Prod Model: |
YC-panty liner machine |
| Machine: |
Full-Automatic Adult Diaper Machine Manufacture |
| Conditions: |
New |
| Model Number: |
Ynk300 |
| Voltage: |
380V, 50Hz |
| Power: |
250-350kw |
| Dimension(L*W*H): |
20m*7m*3.5m |
| Weight: |
20~30 Tons |
| Rate Of Finished Products: |
More Than 97% |
| Rate Of Open Successfully: |
More Than 88% |
| Rate Of Detect: |
Less Than 2% |
| Real Running Speed: |
400-500PCS/min |
| Automatic Grade: |
Automatic |
| Certification: |
ISO |
| Condition: |
New |
| Type: |
Full Servo |
Product Description

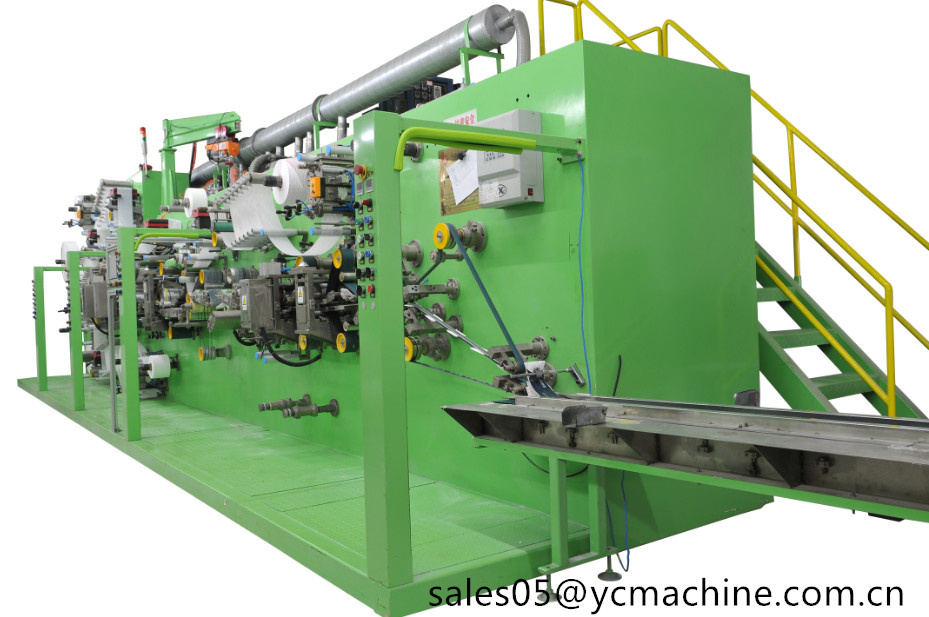

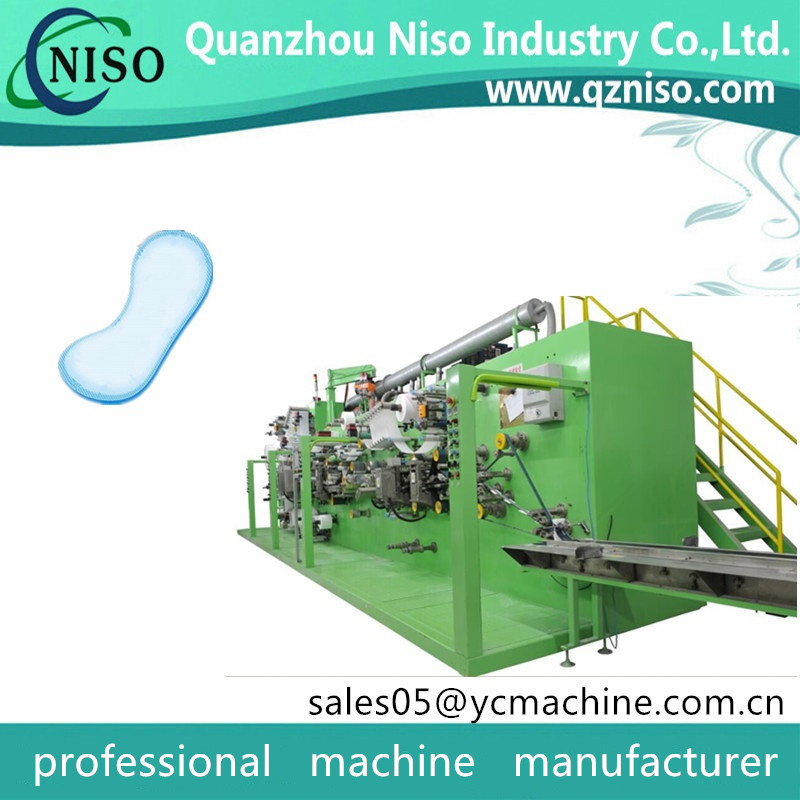

Kotex Sofy Lady Panty Liners Making Machine
Four kinds of pantiliner machine for you to choose | part 1: parameter |
| | stepping motor control machine | variable frequency motor control machine | semi-servo motor control machine | full-servo motor
control machine |
| automaticity | semi-automatic | full-automatic | full-automatic | full-automatic |
| Design Speed | 600 pcs/min | 1,000 pcs/min | 1,000 pcs/min | 1,200 pcs/min |
| stable production speed | 400-500pcs/min | 700-800pcs/min | 700-800pcs/min | 900-1000pcs/min |
| power | 80kw | 100kw | 100kw | 120kw |
| Efficiency rate | >=85% | >=88% | >=88% | >=88% |
| Rejection rate | <= 3% | <= 2% | <= 2% | <= 2% |
| Machine weight | 35 Ton | 45 Ton | 45 Ton | 45 Ton |
| Machine size | 18m * 3m * 3m | 20m * 3m * 3m | 20m * 3m * 3m | 20m * 3m * 3m |
| Operating size | 21m * 3m * 3m | 23m * 7m * 5m | 23m * 7m * 5m | 23m * 7m * 5m |
| safe door | Back | Back & Front | Back & Front | Back & Front |
| Air pressure | 0.6-0.8MPA |
| color | Customlized |
| Machine direction | Customlized |
| Part 2 Electric part |
Programmable Logic Controller
(PLC) | × | Mitsubishi/Simense | Mitsubishi/Simense | Mitsubishi/Simense |
| Touch screen control | × | Mitsubishi/Simense | Mitsubishi/Simense | Mitsubishi/Simense |
| Unwinding of the raw material | Mechanical | Initiative | Initiative | Initiative |
| Materials shaft stand | Machanical shaft stand | Pneumatic shaft stand | Pneumatic shaft stand | Pneumatic shaft stand |
Tension control system
for raw material | × | √ | √ | √ |
| Unwinding motor | × | variable frequency motor | variable frequency motor | Servo motor |
| Web guider | Manual | Auto | Auto | Auto |
| Driving system | One main motor | Three main motors | Servo motor
control independently | Servo motor
control independently |
| Materials splicing | Manual | Auto | Auto | Auto |
| Flat belts | China | Switzerland | Switzerland | Switzerland |
| Timing belts | China | USA | USA | USA |
| Bearing | China | Japan | Japan | Japan |
remark:1. the product of the machine: thin(the raw material use SAP papaer)/ thick (the raw material use fluff ).
2. whether the product with wings or not? it is optional
3. all the unwinding of the raw material are automatical and initiative except the unwinding of easy tape & wings release paper is mechanical. Because, It is no need to use Initiative unwinding.
4. it seems that the variable frequency motor control machine and semi-servo motor control machine share very similar parameter, why should buyers choose expensive semi-servo motor control machine? Because, I will be much easier and cost less once the baby diaper manufaturer want to change the size of the product. if you buy a
semi-servo motor control machine, you just need to change cutter instead of change all the transfer part of the cutter.Why Choose Our full Servo Machine?
1. the whole machine is drived by servo motors, which can control the drive system more accurately.
2. three folding easy packing
3. Unwinding is controlled by constant tension
4. Can change raw material without reducing the speed
5. Equipped with pneumatic shaft, easy to change raw material
6. Equipped with automatic detecting & rejecting system
7. All the spare and accessory parts are processed by CNC machine
8. Web guiders

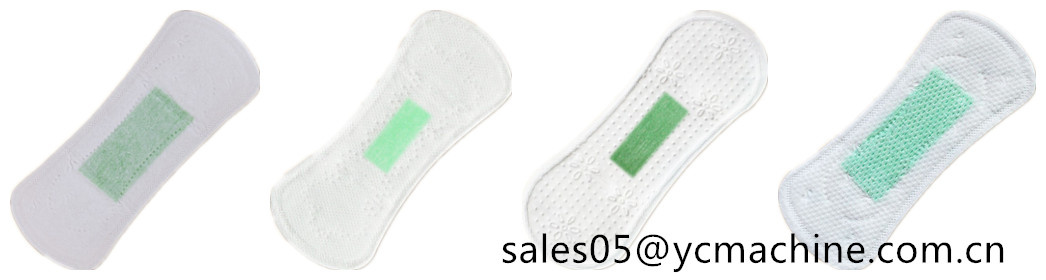

9. PLC control systemThe product of the machine

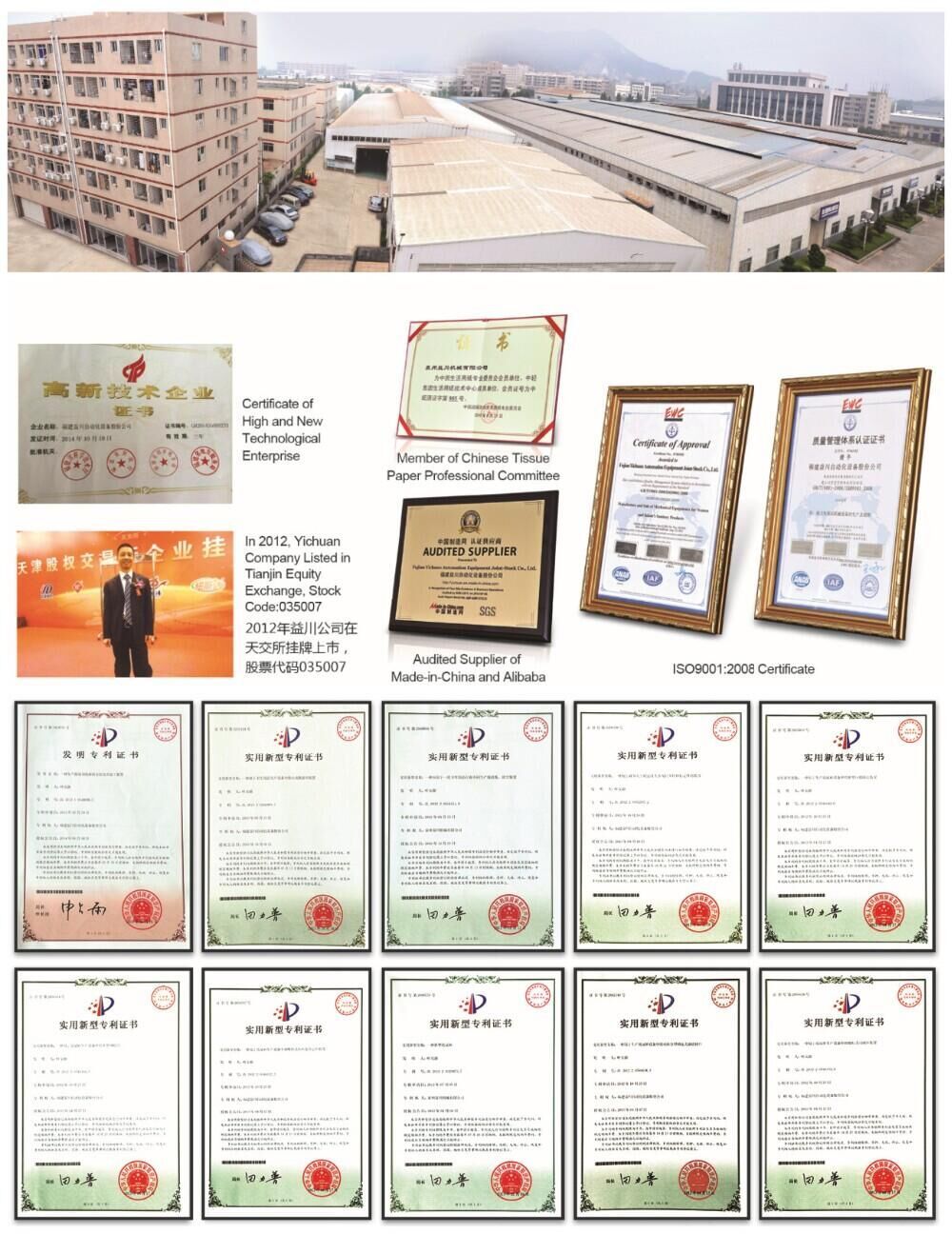

Our Plant
Frequently Asked QuestionQ:Are you a machine manufacture or trading company?A: We are a machine manufacture of baby diaper machine, adult diaper machine, pull on diaper machine, sanitary napkin machine, panty liner machine,underpad machine, pet pad machine, breast pad machine and Underarm pad machine. Q: What is the delivery time for a set machine?A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every taspect. Q: What is your term of payment?A:T/T is our first choice, L/C at sight is ok as well. Q: How long is the warranty period?A: one year after the testing finished at the buyer's workshop. Q: Will you send the engineer to install machine and train our workers in our factoryA: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. you can sent your engineers to our
factory for training, we will offer accommodation.Q: How long can I get the machine?A:we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.Q: Can I buy raw material from your company?A: yes. we have a trading company, which cooperate with us for many years. we can help you to find raw material.
Quanzhou Niso Industry Co., Ltd. is a professional supplier of baby diaper raw materials, adult diaper raw materials, sanitary napkin raw materials all in one.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS certification for non woven, frontal & side tape, back sheet, spandex used on diaper, sanitary napkin and under pad. And cooperate with world famous brand for pulp, SAP, glue and so on.
More than1000 containers diaper and sanitary napkin raw materials have been shipped to Asia, MID-east, Europe, South America, Africa countries.
High quality products, excellent service and a good reputation are our principle.
Any question, please don't hesitate to contact with us.
