Electric Industry Material Handling Vehicle with Load up to 300t
| Price: |
US $ 10000/Set |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
KPX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity(T): |
30 |
| Table Size(mm): |
3600' 2000' 550 |
| Speed(M/Min): |
30 |
| Wheel Diameter(mm): |
350 |
| Wheel Tread(mm): |
2800 |
| Max. Wheel Pressure(Kn): |
64.5 |
| Weight(T): |
3.9 |
| Motor Power(Kw): |
2.2 |
| Colour: |
Yellow / Red / Blue |
| Engine Type: |
2 Stroke |

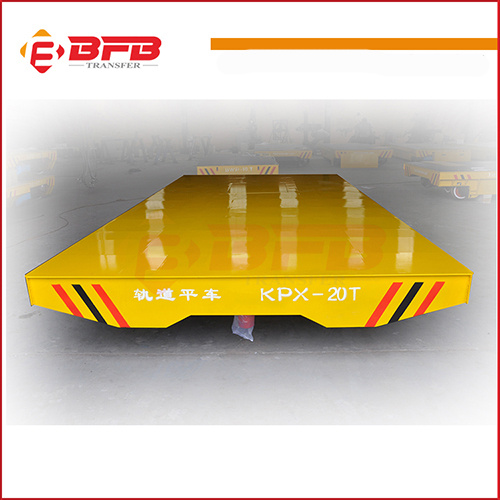

Product Description
Brief Introduction----Electric Handling Vehicle Electric industry material handling vehicle with load up to 300t is powered by the battery,the DC motor and gear reducer are controlled by DC control system to drive wheels and make the electric handling vehicle start, stop, go forward and backward, speed up and slow down and so on.This electric handling vehicle can be used both on the 'S' and arc-shaped railways. Our BEFANBY company is the professional manufacturer with more than 16 years experience in designing and producing electric handling vehicle.
Characters Show----Electric Handling Vehicle
· All of our electric handling vehicle are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons.· It can be used to transfer anything you imagine and working situations, such as steel coil, billets, bloom, ladle & scrap, locomotive, trailer, workpieces to painting shops or blasting room, etc;· We designed and added the special device to it can apply in the high temperature and explosion working environment. Working principle----Electric Handling VehicleThis kind of electric handling vehicle is powered by battery,which is lead-acid battery pack. The battery is installed in the car, and supply DC electricity to the control system. It is consist of battery, motor, reducer, cart frame, electric appliance, etc. Application Show----Electric Handling VehicleOur electric handling vehicle not only can transport all kinds of coils in steel mill, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse. Advantages Show----Electric Handling Vehicle
· Safe and environment friendly· Big starting power· Small impact to the gear reducer· No restriction of the running distance· Can running on s-shape rail, arc-shape rails· Has no limit on working distance· Anti-explosion,Anti-high temperature· Stable start, big starting power, long lifetime.
Parameter List----Electric Handling Vehicle| Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000= | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Ф270 | Ф300 | Ф350 | Ф400 | Ф500 | Ф600 | Ф600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
About UsXinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,electric handling vehicle as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and other 8 national patent, and our products have been exported to more than 40 countries and regions.
Our Certificate show
Our Customer show

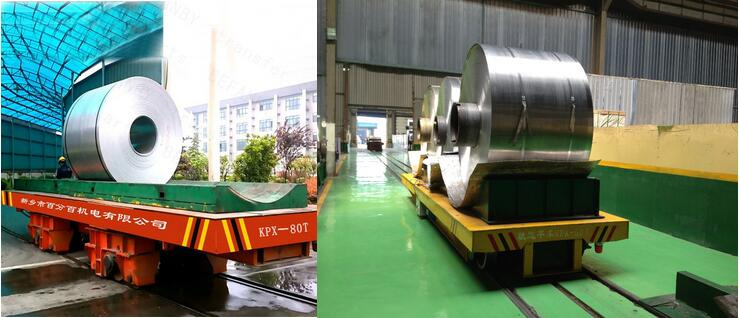

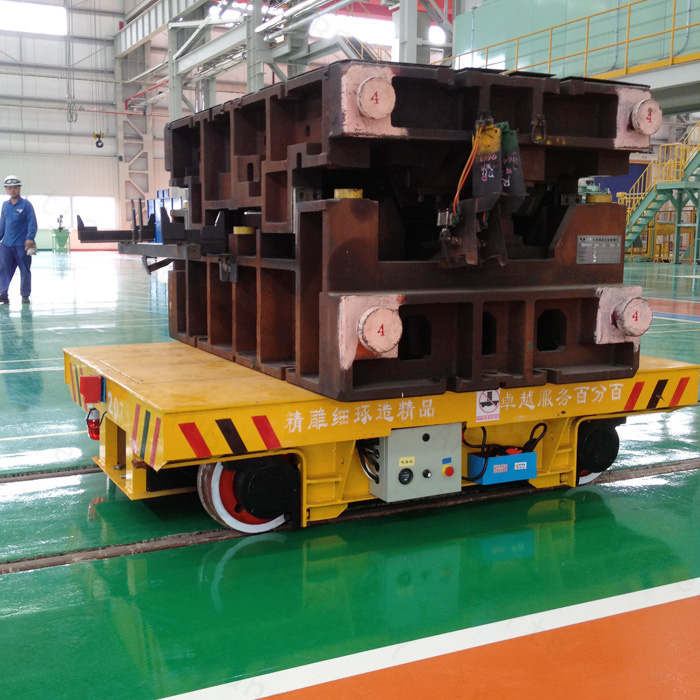

Our production application show
Our after-service1>. Our commitment: The load bearing safety factor of the car is no less than 120%.2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material3>. 16 hours engineering service and 24 hours internet service for our customers4>. During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.Our producing scope| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
How to choose the suitable handling car?All of our electric handling vehicle all customized as client's requirement, for choose the most suitable handling vehicle,please kindly providing the following information:· Transfer or handling what material/cargo?· What capacity do you need?· This handling vehicle is running on rails or ground(floor)?· Your requirement for table size:length,width and height?· How about the running distance?
Xinxiang hundred percent electrical &mechanical Co., Ltd is one of the leading manufacturers of material handling equipment and handling solution design expert in China. We have gotten ISO9001: 2000, ISO9001: 2008, SGS and CE certifications.
Our products include rail transfer car, turntable, transfer table, wheels, rails, winch, hoist, crane etc. Strong designing group can heip you to provide the whole solution for material handiing and customized product, auxiliary equipment. We have rich experience in these projects, such steel plant, automobile assembly line, painting line, shipyard, energy industry etc.
All our products are manufactured using finest quality raw material, which is sourced from the leading manufacturer of the market. Our range is known for its optimized structure design which make sailing more steady and reliable, competitive price, durability, sturdy construction, corrosion resistance, high strength and low maintenance, highest safety keeps our products first class which can compete with those coming from the famous manufacturer of the world. These rail transfer carts are suitable for transportation in various environments (such as ferry condition and flammable, explosive environment and high temperature) and are widely used in these fields of metallurgy, coal, electronics, heavy industry, shipbuilding and light industry.
Assisted with an efficient workforce and advanced manufacturing machines, we have been able to offer custom designed products that are designed and developed in adherence with industry standards. The team also conducts stringent quality tests to ensure delivery of flawless products to the clients.
Moreover, our professionals support us in undertaking various material handling projects. Our commitment: Reliable product, timely delivery, which has helped us in gaining huge client base across the country. Our products have been sold to every city in China and exported to many countries, such as Germany, Turkey, South Africa, Thailand, Syria, Singapore, Australia, Saudi Arabia and so on.
Professional team welcome your any time inquiry!
