Electric Insulating Edge Banding Tape
| Price: |
Negotiable/Roll |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Roll |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Electric Insulating Edge Banding Tape
1.Thickness:0.2~0.5mm
2.Fiberglass banding tape
3.Self-adhesive insulation tape
4.SGS,RoHS
The banding tapes are of high quality, which consist of parallel twisted E-glass yarns preimpregnated with a special thermosetting polyester resin and manufactured with the proprietory technology and advanced equipments.

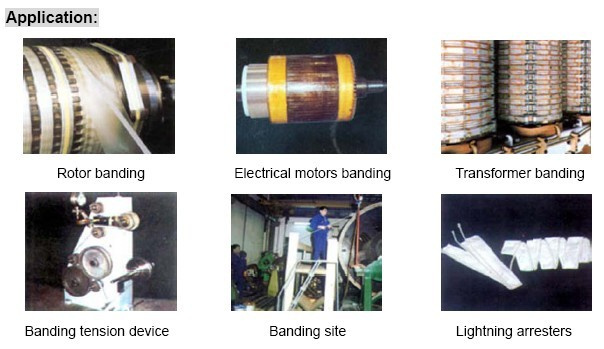

It's widely used in AC. DC motors, generators and transformers especially in traction motors. Main Properties:
1.Thickness: 0.20mm±10%,0.30mm±10%
2.Width: 10mm~50mm±10%
3.Length/Spool: 50~200 meters
4.Standard color: White
5.Thermal Grade: F grade(155ºC)
H grade(180ºC)6.Curing condition (Time to bring the piece to the temperature is not considered)| Temperature | ºC | 160 | 150 | 135 | 120 | 115 |
| Time | hour | 2.5 | 3 | 5 | 14 | 20 |
7.Storage Stability:| Storage temperature | ºC | 10 | 15 | 20 | 30 |
| Time | Month | 20 | 15 | 10 | 6 |
Technical Data:
| Test content | Unit | Standard Value |
|
| Thermal class |
| H | F |
|
| Volatile content | % | ≤ 2 |
|
| Loss of weight at calcination | % | 26±2 |
|
| Soluble resin content | % | ≥ 90 |
|
| Tensile strength before curing | N/cm | ≥1500 | ≥1000 |
|
| Maximum pull while banding | N/cm | 800 | 800 |
|
| Tensile strength of ringlike sample at room temperature after curing | Mpa | 20ºC |
|
| above :900 | above :900 |
|
| Tensile strength of ringlike sample at working temperature after curing | Mpa | 180ºC | 150ºC |
|
| ≥600 | ≥560 |
|
| Proof tracking index |
| ≥500V |
|
| Arc resistance | S | ≥160 |
|
| Breakdown voltage parallel to layers | KV | normal condition:≥25
after soaked in water for 24 hours:≥10 |
|
| Thermosetting | OK |
|
| Loss of tensile strength after soaked in oil | ≤10% |
|
|

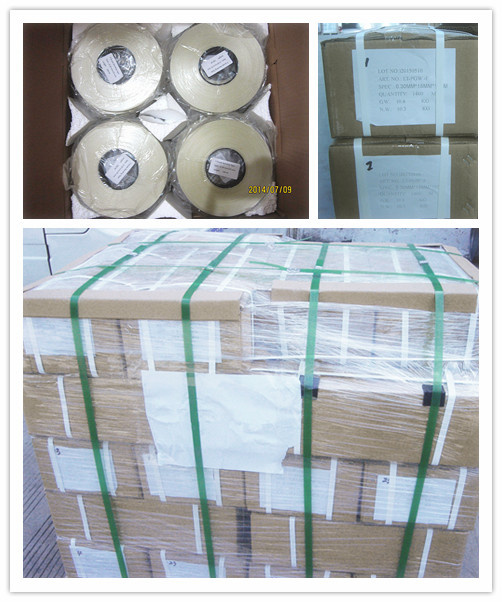

Package:
| Prod Model: |
LT-PGW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Thickness: |
0.17mm,0.2mm,0.25mm,0.3mm,0.32mm |
| Width: |
10mm,15mm,20mm,25mm,30mm,32mm,35mm,40mm |
| Raw Material: |
Fiber Glass Yarn + Unsaturated Polyester Rein |
| Package: |
50~200 Meters Per Roll |
| Thermal Grade: |
F, H Grade |
| Application: |
Motor |
| Type: |
Solid |
| Chemistry: |
Inorganic Insulation |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
20KV~100KV |
| Material: |
Glass Fiber |
