Technical Description | Mould Closing System | |
| Work Stations | 10 |
| Clamping Force (kg) | 150000 |
| Mould-Opening Stroke (mm) | 350 |
| Standard Thickness of Mould (mm) | 100-210 |
| Mould Plate Size (mm) | 2(290*550) |
| Height of Injection Nozzle (mm) | 60 |
| Method of Heating | electric |
| Heating Power (kw) | 8.04 |
| Injection System | |
| Injectors (set) | 2 |
| Diameter of Screw (mm) | 60 |
| L/D Ratio of Screw | 23 |
| Max Injection Capacity (cc) | 860 |
| Injection Pressure | 1100 |
| Injection Speed (cm/sec) | 10 |
| Rotating Speed of Screw (r.p.m) | 0-190 |
| Temperature Control (section) | 4 |
| Electricity Consumption | |
| Heater Barrel (kw) | 12.1 |
| Motor for Injector Moving (kw) | 1.5 |
| Heating Board of Mould (kw) | 128 |
| Hydraulic System (kw)(50hz) | 59 |
| Vacuum Pump (kw) | 2.2 |
| Cooling Fan of Barrel (HP) | 1 |
| Total Electricity (kw) | 200 |
| Oil Tank Size (L) | 1000 |
| Machine Weight (kg) | 35200 |
Detailed Description :

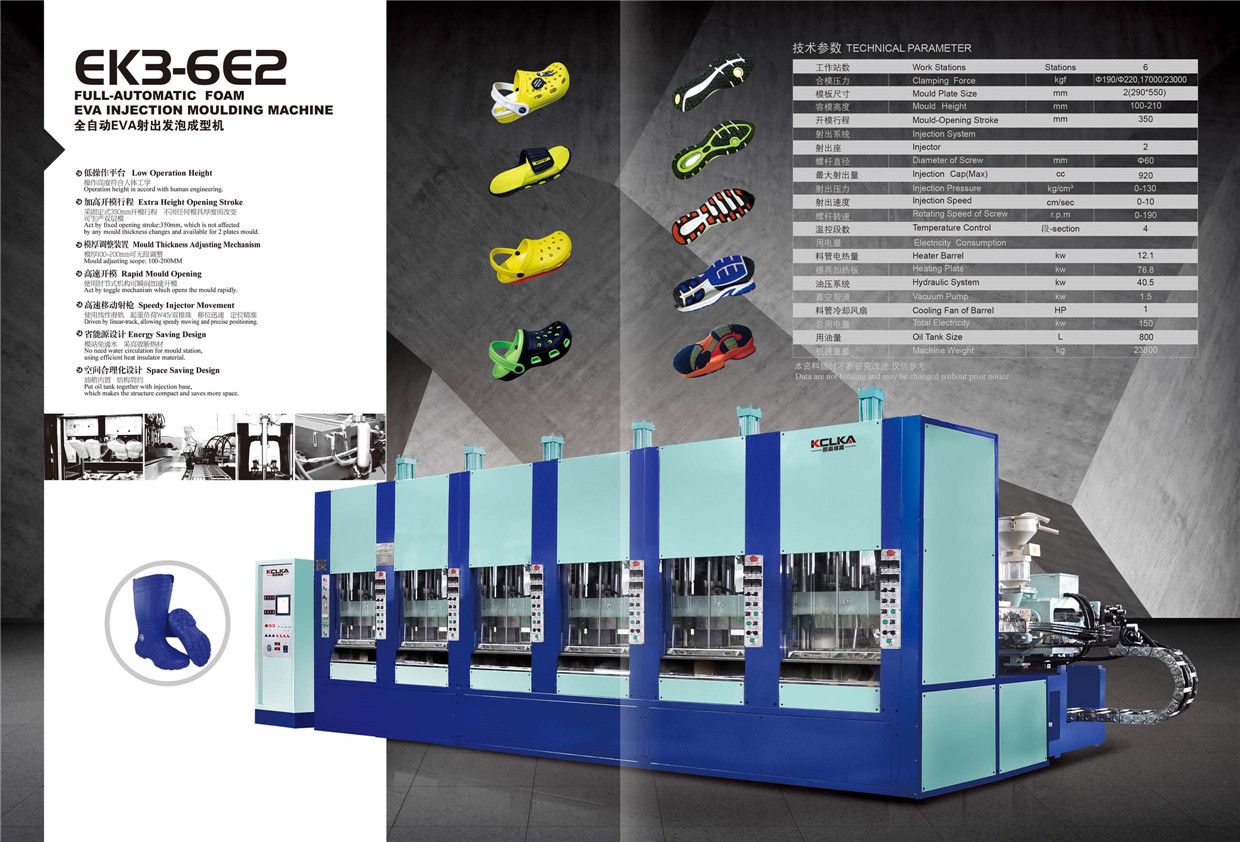

Full-Automatic Foam EVA Injetion Moulding Machine
The foam eva injection molding machine is fully hydraulic and automatic operation except taking product. It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production. Its product range includes EVA mid-sole, slippers, sport protectors and various kinds of shoe accessories.
1.Low Operation Height
Operation height in accord with human engineering
2.Extra Height Opening Stoke
Act by fixed opening stroke:350mm,which is not affected by any mould thickness changes and available for 2 plates mould.
3.Mould Thickness Adjusting Mechanism
Mould adjusting scope:100-200MM
4.Rapid Mould Opening
Act by toggle mechanism which opens the mould rapidly.
5.Speedy Injector Movement
Driven by linear=track,allowing speedy moving and precise positioning.
6.Energy Saving Design
No need water circulation for mould station,using efficient heat insulator material.
7.Space Saving Design
Put oil tank together with injection base,which makes the structure compact and saves more space.
all quotations are without value-added tax.
Delivery date:Within 60 days After receiving the 30% earnest money
Payment term: Advance payment at order 30%, 70% before shipment
Delivery State: Machines were taken apart and packed in suitable package that fits container shipping
For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Also Our technician will manage all the machine things for you and at the same time train your workers on how to use and maintain the machine.
Guarantee Time: One-year warranty and lifelong service. During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.
