EVA TPR TPU Soles Material Plastic Extruder to Make Sandals
| Price: |
US $ 38000-109994/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TSE-65B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Of Soles Extruder: |
as Customer Required |
| Barrel And Element: |
Module |
| Output: |
200-300kg/H |
| Screw Diameter: |
62.4mm |
| L/D: |
32-64 |
| Motor Power: |
90kw |
| Screw Rater: |
600r/Min |
| Torque: |
716n.M |
| Torque Level: |
5.1t/N3 |
| Application: |
EVA TPR TPU Soles Extruder |
| Product Type: |
Granulating Extruder |
| Feeding Mode: |
Multiple Feed |
| Assembly Structure: |
Separate Type Extruder |
| Screw: |
Twin-Screw |
| Engagement System: |
Full Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Exhaust: |
Exhaust |
| Automation: |
Non-Automatic |
| Computerized: |
Non-Computerized |
| Type: |
Granules Extruder |
| Plastic Processed: |

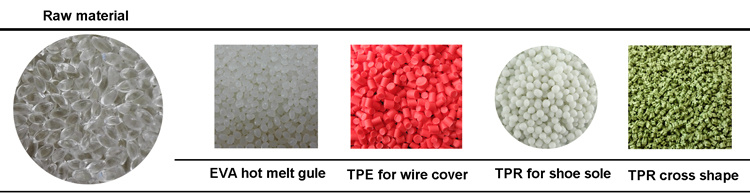

EVA/TPR/TPU |
Product Description

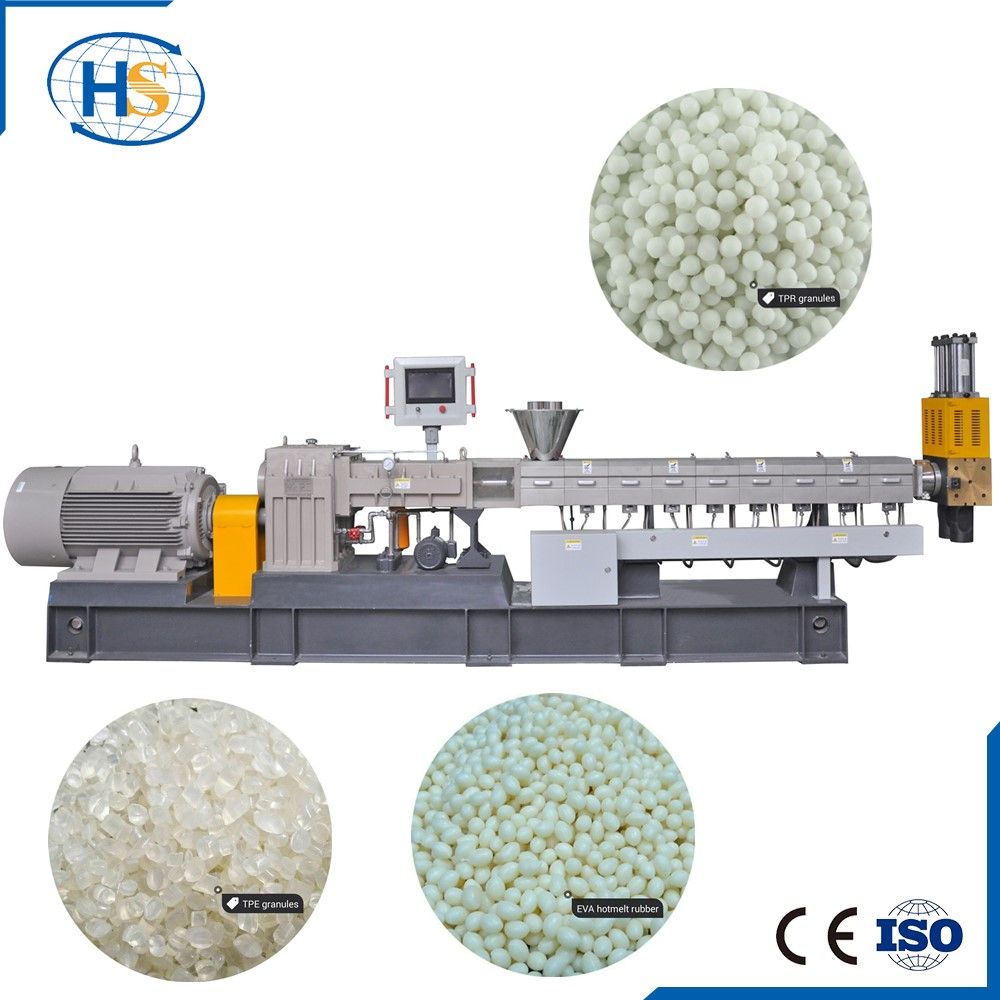

EVA TPR TPU soles extruder to make sandals
Products description of the soles extruder1. The EVA TPR TPU soles extruder can reduce the cost of soles material;
2. Differnet ratio of the raw material can make the masterbatch soft or hard.
3. The sole extruder adopt the imported the ABB inverter, easy control and operation.Other kinds of applications of the extruderMixing nature changing: PE, PP, PS+SBS, PA+EPDM, PP+NBR, EVA+Silicon rubber PE, PA, PC, CPE+ABS, ABS+TPU, PBT+PET, PP+PE
Filling nature-changing: PE, PP, EVA, etc. +Calcium carbonate, talcum powder, titanic powder PP, PA, ABS+ferrous powder, sulphuri powder, ceramic powder
Functional machine pellets: PP, PA, ABS, PBT, etc. +anti-burning agent and other auxiliary agents: Combustion- supporting machine pellets
PE, PP, PS, etc+starch: De-composing machine pellets
PE+fog-preventing dipper, stabilizer: Dual-prevention machine pellets
PE, EVA, ABS, etc+carbon black: Black machine pellets
Colored machine pellets: PEMPP, ABS, AS PA, EVA, PET+pigment and auxiliary Intensified glass fibers and carbon fibers: PP, PBT, ABS, AS, PA, PC, POM, PPS, PET, etc+long fiber, carbon fibers, crystals and so on

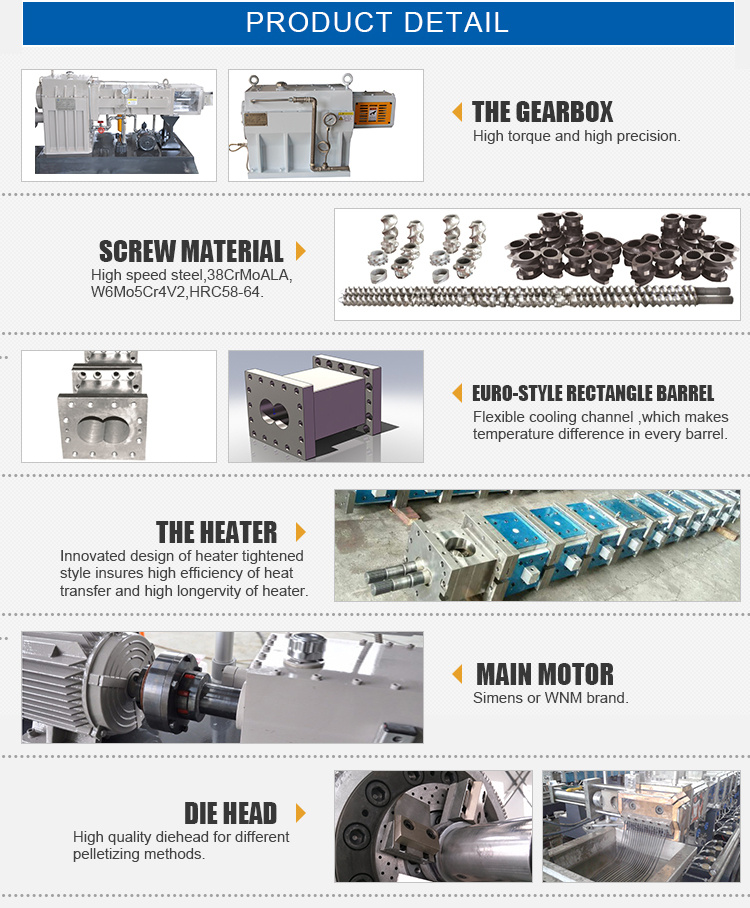

The production process1. The gearbox:
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keeo it compact, and the key bearings are imported.
The select material of drive components is dainty. Including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.
2. The feeding system
Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system, etc
3. Screw
The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4. The barrel
Euro style rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller
According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
5. The heater
Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.
6. Pelletizing
Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.
CertificatesWe have CE/UL/SGS/TUV certificates, strict control systems to improve the quality. Why did our Customers choose us?
1. Reply < 10 hours
2. Delivery time > 99%
3. Quality Control > 100%
4. After-sales Service > 100%
What can we do for you?
1. Good quality twin/single screw extrusion machine or other spart parts with competitive price.
2. Satisfying services.
3. OEM&ODM
Our ServiceAs for the products. We have passed CE. FCC certificates.
As for factory firm ability, we have passed CE. ISO. SGS.
Our sincerity business commercial ethic is: ''the business principle of best quality, customer always the first".
Sincerely welcome to contact us to made a good cooperation with us.
We join the Chinaplas Fair and the overseas every year.
The co-rotating twin screw extruders from Haisi are the world's most frequently used extrusion and compounding systems for the production of plastics.| Mode | Screw Diameter
D(mm) | Screw Length
(mm) | L/D | Screw Rater
N(r/min) | Motor Power
P(kw) | Torque
T(N.m) | Capacity
Q(kg/h) |
| TSE-40B | 41 | 160 | 32-52 | 600 | 30 | 239 | 90-150 |
| TSE-52B | 51.5 | 210 | 32-64 | 600 | 55 | 438 | 225-250 |
| TSE-65B | 62.4 | 240 | 32-64 | 600 | 90 | 716 | 200-300 |
| TSE-75B | 71 | 290 | 32-64 | 600 | 132 | 1050 | 350-550 |
| TSE-75D | 71 | 290 | 32-64 | 60O | 220-250 | 1990 | 500-1000 |
| TSE-95B | 93 | 360 | 32-64 | 600 | 315 | 2506 | 800-1200 |
Introduction and history:
Nanjing Haisi Extrusion Equipment Co., Ltd is a high-tech manufacturing and trading company in China. "Family" is our benchmark. We work efficiently and help each other whenever anyone is in need due to the same target, that is, to make best quality of extruders in China.
Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling. Innovative machines are built as per the concept of durability, high efficiency and economical power consumption. And we also have substantial experience in R&D, technique and after sales service. And for some materials, we supply turn-key project.
Company is in strict accordance with CE and ISO9001 quality certification system for production management. There are over 200 models of extruders and spare parts. Factory has CNC center, grinding machines, cutter, puncher, etc. To meet customers' requirements on extruders and spare parts.
Business scope and achievements:
All kinds of plastic extruder.
Our machines are widely used in China mainland, and have been exported to 20 countries and places over the world. Our annual production capacity is 240 sets plastic extruder in domestic countries and abroad! OEM service offered in granulating plastic extruder industry in consistence with specific requirement from both national and international customers.
Prospects:
Surely you will also get professional machines and characteristic services here. Let's create more together!
Characteristics of our machine:
Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in D areas smaller.
Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
According to the material and special technics demands, the material of cyliner can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
Various modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelletizing, etc.
The screw elements and kneading blocks are designed, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming, etc. The screw is made of high tool steel 38 CrMoAlA or W6Mo5Cr4V2 by special heat-treatment, which is possessed with high corrosion-resistand and high functions.
The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.
Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side-feeding system, etc. To meet different requirements of feeding, such as powder, pellet, pump and liquid material.
New-style gear transmission system:
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are imported.
The computer designs to potimize gear parameters and strenghthen safe overmeasure.
The selected material of drive components is dainty. Including super intention alloy cementiteing steel, cementiting and grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
Soakage and spraying lubriation integrate smoothly.
