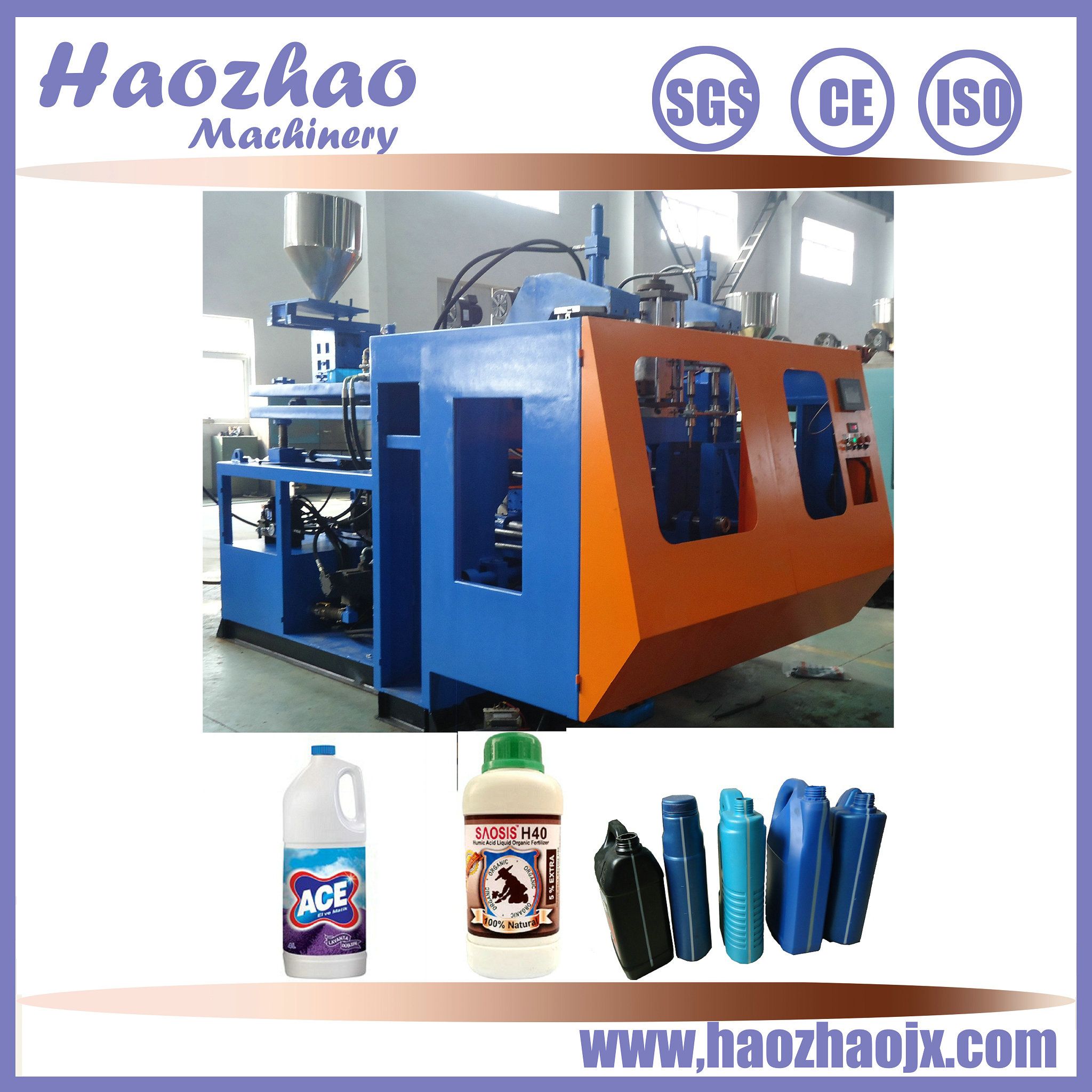

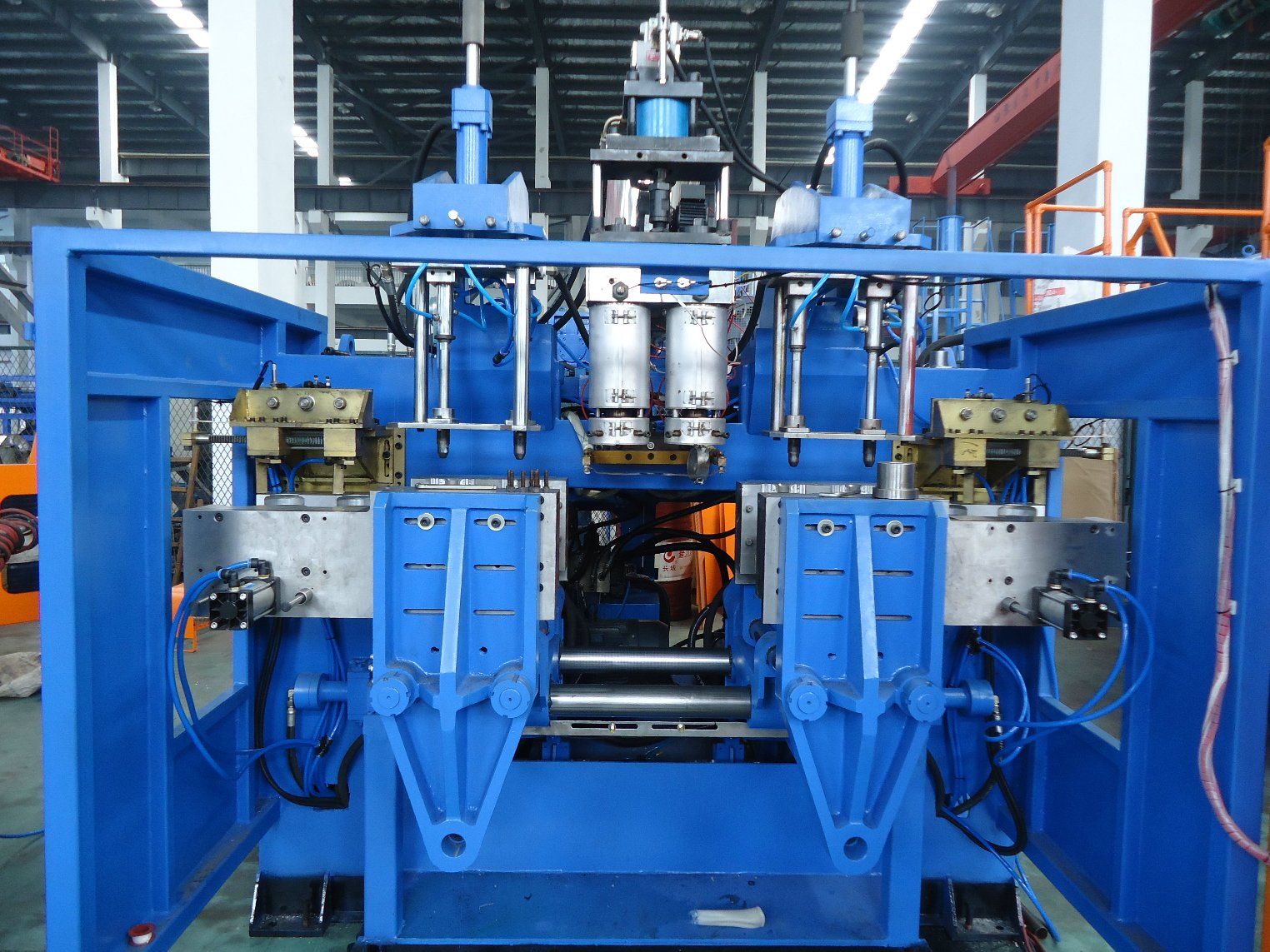

Extrusion Blow Moulding Machine for PE Bottles
| Price: |
US $ 30000-50000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
plastic bottle blow moulding machine :
it can choose different number of die head for blow moulding machine according to the volume of production, there are four sizes of die head :single die head , double die head , triple die headd , four die head ; if volume of bottle is less than 1000ml , triple die head is better choice . double die head is better for 1000ml-2000ml , single die head is for 2500ml-5000ml .human machine interface and color touch screen ,precison parison controller system are used on the blow molding machine ,the die head allows feeding from the side , from center,with double bagand through screw feed and so on .automatic deflash device are installed on the machines ,wchich are optional .
blow molding machine parameter :| | | HZB70D |
| material | | |
| max container capacity | L | 5 |
| number of die | set | 1.2.3.4 |
| ouput dry cycle | pc/hr | 1000 |
| machine dimension | m | 3.3*2.3*2.6 |
| total weight | ton | 5.8 |
| | | |
| clamping force | kn | 68 |
| platen opening stroke | mm | 200-500 |
| platen size | mm | 330*370 |
| move mould stroke | mm | 420 |
| mould thickness | mm | 205 |
| | | |
| motor power of oil pump | kw | 15 |
| max pressure | mpa | 12 |
| air pressure | mpa | 0.7 |
| air consumption | m3/min | 0.6 |
| average energy consumption | kw | 23 |
| | | |
| screw diameter | mm | 70 |
| screw L/D ratio | L/D | 24 |
| plasticizing capacity | kg/hr | 70-80 |
| number of heating zone | zone | 3 |
| extruder heating power | kw | 14.2 |
| extruder driving power | kw | 22 |
| | | |
| number of heating zone | zone | 3 |
| power of die heating | kw | 5.7 |
| max die pin diameter | mm | 135 |
| center distance of double die | mm | 160 |
| center distance of tri-die | mm | 110 |
| center distance of tetra-die | mm | 85 |

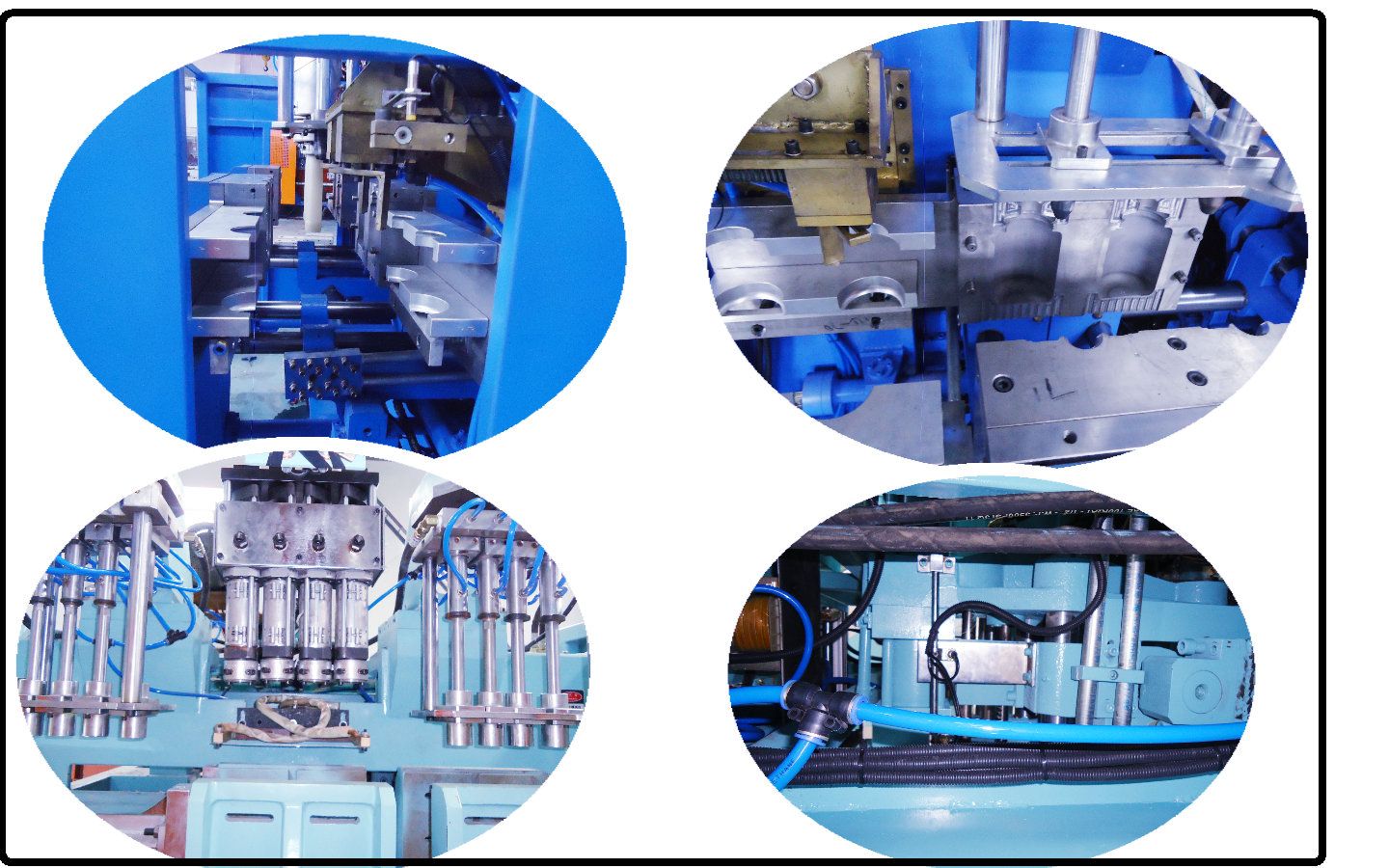

main parts for blow moulding machine :| touch screen | winview taiwan |
| PLC | mitsubishi Japan |
| contactor | Schneider |
| motor | mengniu |
| servo system | MOOG japan |
| hydraulic valve | YUKEN |
| pneumatic valve | Festo GERMANY |
| transducer | Emerson USA |

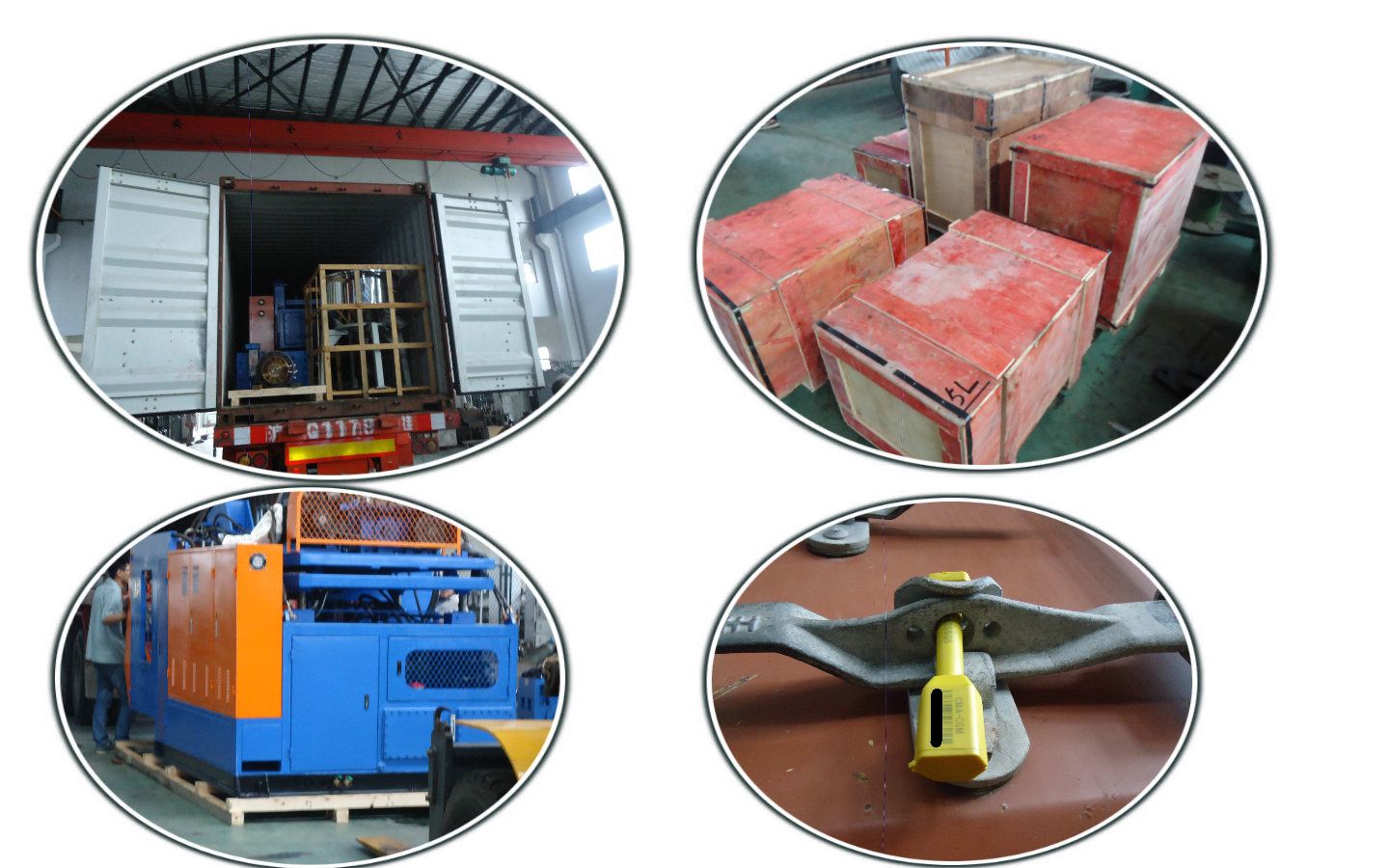

package for ship blow moulding machine:
Contact person :
Helen dong sales managerZhangjiagang Haozhao machinery Co., Ltd Add: LuyuanJuqiao Development, Tangqiao Town, Zhangjiagang City, Jiangsu Province, ChinaMobile 0086-158-9559-1011. Web: http://www.haozhaojx.com
| Capacity: |
2000-5000ml |
| Material: |
HDPE, PP, PE, PVC |
| Motor: |
Mengniu |
| Air Switch: |
Festo |
| Hydraulic Valve: |
Yuken |
| Barrel &Screw: |
38crmoala |
| Thickness Controller: |
Moog Japan |
| Touch Screen: |
Winview Taiwan |
| Deflash System: |
Optional |
| Gear Box: |
Guomao |
| Type: |
Extrusion Blow Molding Machine |
| Raw Material: |
HDPE |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
CE |
Zhangjiagang haozhao machinery Co., Ltd is located in zhangjiagang city, which is famous for its pretty scenery and convenient land-and-water transportation, lies to the north of the Shanghai, nanjing highway, to the west of Shanghai, to the south of nantong, embracing predominant position, mature economic environment and convenient communication.
The company owns more than 30, 000 square meter international standard workshop and more than 300 excellent staffs. Importing the newest Japanese technology, and form a powerful R&D team, which consist of many experts, engineers and technical man, to guarantee the quality.
We are professional in the field of blow molding machines, our product line covers wide range, including more than 100 types of automatic blow molding machines, for the products from 5ml to1000L, such as bottles, drums, jerry cans, kettles, boxes, auto-parts, chairs, oil tanks, pallets and other plastic hollow products. According to customer's requirement, we supply single die head, double die head, triple die head, four die head, single layer, double layer. Triple layer, quadruple layer, sextuple layer and so on.
We can help our customers to solve different problem and supply related machines suitable for different materials, such as PE, PP, PVC, PA, PS, ABS, EVA, PETG, EVOH… .
