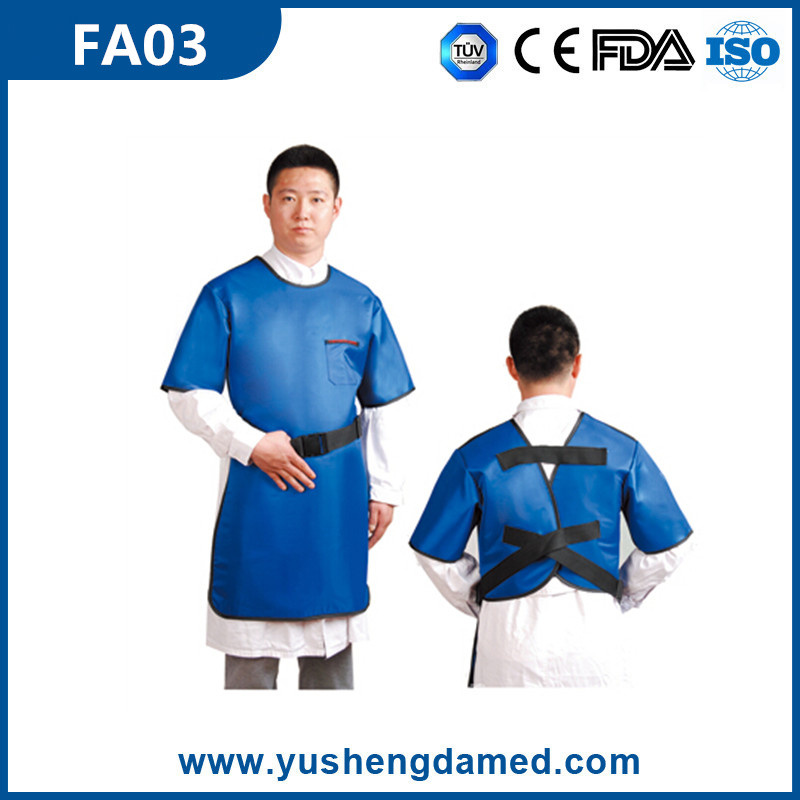

FA03 high quality x-ray protective apron ,lead apron
specifications
x-ray protective aprons
1.Pulled on from the back side
2.one faced
3.CE ISO
4.0.35 0.5 mmPb
0.35 0.5mmPB medical lead x-ray protective aprons
X-Ray Protection Series-Protective Clothing
The medical X-ray protective series products are made of
natural rubber and lead powder.
The lead equivalent is: 0.35mmpb, 0.5mmpb.
They are mainly used for the protection of the X-ray.
The customers can choose these protective series products
of different specifications according to their own needs.
Size: S M L XL
Capacity: X-ray radiation protection
Ways : Put on from the back.If it has 1/3 crack,you should throw and renew it in order to keep good protection alility.
Storage: Avoid direct sunlight and keep away form heat.You'd better to put the aprons in ventilated indoors with temperature around 0°c to 40°c. These aprons are strictly prohibited in contact with acid, alkali and other chemicals
| Model | Lead Equivalent(mmPb) | Weight(kg) |
| FA07 | 0.35 | 3.00kg |
| FA07 | 0.5 | 3.75kg |
Size | Length(cm) | Width(cm) | Applicable Height(cm) |
| S | 85 | 55 | 150~160 |
| M | 90 | 60 | 165~170 |
| L | 100 | 60 | 170~180 |
| XL | 110 | 60 | 180~185 |
Attention:When stopping working,you should put the aprons flat and not fold it in order not to broke it.
| PB series patient protective |
| Model | Items | Size | Lead |
| PB01 | high collar waistcoat apron | general use | 0.50mmPb |
| PB02 | protective scarf combined | 210*460mm(3pcs)+210*230mm(1pc) | 0.50mmPb |
| PB03 | protective triangle | 600*150mm(1pair) | 0.50mmPb |
| PB04 | protective cap | for patient | 0.50mmPb |
| PB05 | protective undershorts | general use | 0.50mmPb |
| PB06 | protective collar | simple | 0.50mmPb |
| PB06-2 | protective collar | wholly shapen | 0.50mmPb |
| PB07 | protective scarf | square | 0.50mmPb |
| PB07-2 | protective scarf | triangle | 0.50mmPb |
| PB08 | breast protective | general use | 0.50mmPb |
| PB09 | scrotum protective | L | 0.50mmPb |
| M | 0.50mmPb |
| S | 0.50mmPb |
| PE series super thin lead rubber rolls |
| Model | Items | Size | Lead |
| PE01 | super thin lead rubber rolls | 20m*650mm | 0.125mmPb |
| PE02 | super thin lead rubber rolls | 20m*650mm | 0.175mmPb |
| PE03 | super thin lead rubber rolls | 20m*650mm | 0.25mmPb |
| PE04 | super thin lead rubber rolls | 20m*650mm | 0.35mmPb |
| PE05 | super thin lead rubber rolls | 10m*600mm | 0.5mmPb |
| PF series super thin lead rubber rolls |
| Model | Items | Size | Lead |
| PF01 | lead rubber rolls,5pcs/pack | 1000*600 | 0.125mmPb |
| PF02 | lead rubber rolls,5pcs/pack | 1000*600 | 0.175mmPb |
| PF03 | lead rubber rolls,5pcs/pack | 1000*600 | 0.25mmPb |
| PF04 | lead rubber rolls,5pcs/pack | 1000*600 | 0.35mmPb |
| PF05 | lead rubber rolls,5pcs/pack | 1000*600 | 0.50mmPb |
| PF06 | lead rubber rolls,5pcs/pack | 1000*600 | 0.625mmPb |
| PF07 | lead rubber rolls,5pcs/pack | 1000*600 | 0.75mmPb |
| PF08 | lead rubber rolls,5pcs/pack | 1000*600 | 1.00mmPb |
| PF09 | lead rubber rolls,5pcs/pack | 1000*600 | 2.00mmPb |
| PF10 | lead rubber rolls,cover,5pcs/pack | 5"*7" | 2.00mmPb |
| PF11 | lead rubber rolls,cover,5pcs/pack | 8"*10" | 2.00mmPb |
| PF12 | lead rubber rolls,cover,5pcs/pack | 10"*12" | 2.00mmPb |
| PF13 | lead rubber rolls,cover,5pcs/pack | 11"*14" | 2.00mmPb |
| PF14 | lead rubber rolls,cover,5pcs/pack | 12"*15" | 2.00mmPb |
| PF15 | lead rubber rolls,cover,5pcs/pack | 14"*17" | 2.00mmPb |
| PG series x-ray protection accessories |
| Model | Items | Specification |
|
| PG01 | lead screen,single | 1800*900mm | spray paint 0.5mmpb |
| plastic paint 1mmpb |
| S.S. |
| PG02 | lead screen,single,can go up and down | general size | plastic paint |
| S.S. |
| PG03 | lead screen,double | 1800*1200mm | spray paint |
| plastic paint |
| S.S. |
| PG04 | lead screen,triple | 1800*1600mm | spray paint |
| plastic paint |
| S.S. |
| PG05 | lead film storing box | general use | spray paint |
| plastic paint |
| S.S. |
| PG05-1 | lead film storing box | general use | plastic paint |
| S.S. |
| PG06 | lead film delivery cabinet | general use | spray paint |
| plastic paint |
| S.S. |
| PG07 | lead defence chair | 660*900*880mm | spray paint |
| plastic paint |
| S.S. |
| PG08 | lead defence chair,multi-function | 660*900*1380mm | spray paint |
| plastic paint |
| S.S. |
| PG09 | radiography lead room,single door | 1000*1100*2200mm | plastic paint |
| S.S. |
| PG10 | radiography lead room,double door | 1200*1100*2200mm | plastic paint |
| S.S. |
| PG11 | fluoroscopy lead room | 1200*1300*2200mm | plastic paint |
| S.S. |
| PG12 | fluoroscopy and radiography lead room | 1200*1300*2200mm | plastic paint |
| S.S. |
| PH series suspension x-ray barriers |
| Model | Items | Specification | Lead |
| PH01 | suspension x-ray screen | type A | 0.5mmPb |
| PH02 | suspension x-ray screen | type B | 0.5mmPb |
| PH03 | suspension x-ray screen,movable | type C | 0.5mmPb |
| PH04 | suspension x-ray screen | type D,E | 0.5mmPb |
| type F | 0.5mmPb |
| PH05 | bedside x-ray screen | multi-fold | 0.5mmPb |
| defence shade | 0.5mmPb |
| PH06 | protective curtain of safety check equipment | without lead,per square meter | 0.35mmPb |
| 0.5mmPb |
| FA series auxiliary diagnosis x-ray products |
| Model | Items | Specification | Specification |
| FA01 | tank for film developing | 19L(5 galon) | S.S. |
| FA02 | tank for film developing | 38L(10 galon) | S.S. |
| FA03 | dark room light | plastic paint,regulated | single |
| double |
| FA04 | chest thickness meter | general use | S.S. |
| FA05 | standing x-ray film cassette shelf | general use | plastic paint |
| general use | S.S. |
| FA06 | wall mount x-ray film cassette shelf | general use | plastic paint |
| FA07 | x-ray film drying cabinet | digital | plastic paint |
| FA08 | film viewer,aluminum alloy | single connection,360*435mm | plastic paint |
| S.S. |
| FA09 | film viewer,aluminum alloy | double connection,720*435mm | plastic paint |
| S.S. |
| FA10 | film viewer,aluminum alloy | triple connection,1080*435mm | plastic paint |
| S.S. |
| FA11 | lead door | 2mmPb | S.S.,per square meter |
| FA12 | lead mark | general use |
|
| FA13 | microtome kinfe | general use | wooden face |
| S.S.face |
| FB series rack |
| Model | Items | Specification | Specification |
| FB01 | mobile swivel arm apron rack | for 6 pcs of clothes | S.S. |
| FB02 | wall mounted apron rack | for 5 pcs of clothes | S.S. |
| FB03 | mobile swivel arm apron rack | for 5 pcs of clothes | S.S. |
| FB04 | plastic medical chart holder | standard A4,ABS material | color |
| FD series lead glass |
| Model | Size(mm) | Model | Size(mm) |
| FD01 | 1500*1000*20 | FD12 | 1500*1000*15 |
| FD02 | 1500*900*20 | FD13 | 1500*900*15 |
| FD03 | 1200*900*20 | FD14 | 1200*900*15 |
| FD04 | 1200*800*20 | FD15 | 1200*800*15 |
| FD05 | 1200*600*20 | FD16 | 1200*600*15 |
| FD06 | 1000*800*20 | FD17 | 1000*800*15 |
| FD07 | 900*600*20 | FD18 | 900*600*15 |
| FD08 | 800*600*20 | FD19 | 800*600*15 |
| FD09 | 700*500*20 | FD20 | 700*500*15 |
| FD10 | 600*400*20 | FD21 | 600*400*15 |
| FD11 | 600*400*12 | FD22 | 800*600*12 |
| NOTE:lead ≥2mmPb/10mm glass |
| PD series soft imported material x-ray protection |
| Model | Items | Size | Lead |
| PD10 | intervenient radiation protective gloves | 8#,7 2/1#,7# | 0.03-0.04mmpb |
| PD11 | protective mask without cap | type A | 0.1mmpb |
| PD11-2 | protective mask without cap | type B | 0.1mmpb |
| PD12 | protective mask with cap | type C | 0.1mmpb |
| H series nuclear accessories |
| Model | Items | Specification | Lead |
| H01 | protective cover for injector | 1,2,5,10ml | 5mmpb |
| H02 | protective cover for injector | tungsten-nickel alloy,1ml | 5mmpb |
| H02-2 | protective cover for injector | tungsten-nickel alloy,2ml | 5mmpb |
| H02-3 | protective cover for injector | tungsten-nickel alloy,5ml | 5mmpb |
| H02-4 | protective cover for injector | tungsten-nickel alloy,10ml | 5mmpb |
| H03 | injector protective box | 250*60*80mm | 4mmpb |
| H03-2 | injector protective box | 250*120*80mm | 4mmpb |
| H04 | radiation storage box | 275*275*275mm | 4mmpb |
| H04-2 | radiation storage box | 275*275*275mm * 2pcs | 4mmpb |
| H05 | radiation storage drum | diamter 300*500mm | 4mmpb |
| H05-2 | radiation storage drum | diamter 300*500mm | 10mmpb |
| H06 | single stink cupboard for dispense | 1000*720*900mm | 5-10mmpb |
| H07 | double stink cupboard for dispense | 1780*720*900mm | 5-10mmpb |
| H08 | injection protective screen | 600*400*1200mm | 5mmpb |
| H09 | source-apportionment protective screen | 400*340*320mm | 10mmpb |
| H10 | radiation protection implantation box |
| 0.5mmpb |
| H11 | turnover lead jar | diameter 70*110mm | 15mmpb |
| H12 | lead jar | diameter 45*70mm | 10mmpb |
| H13 | lead brick |
| 5-19mmpb |
| H14 | lead sheet |
| 0.5-5mmpb |
