| Prod Model: |
RT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Thread: |
M16*1.5 |
| Head: |
90 Degree |
Product Description

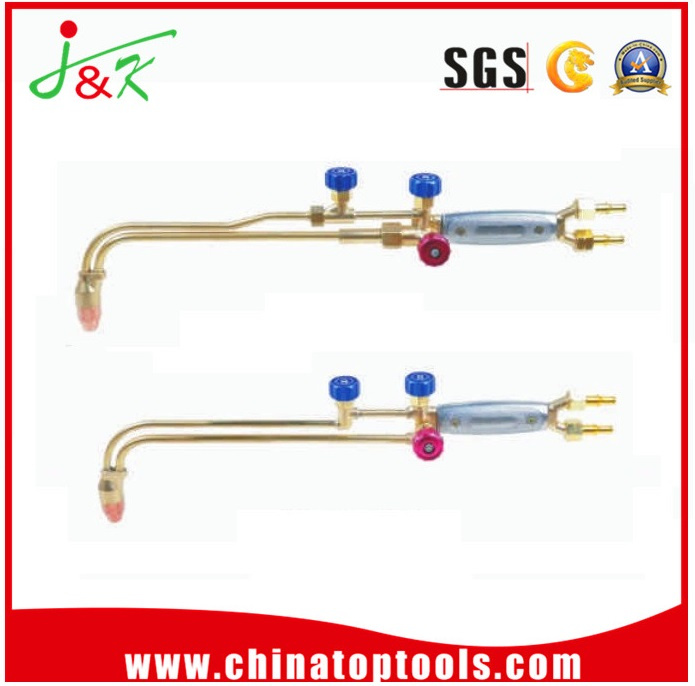

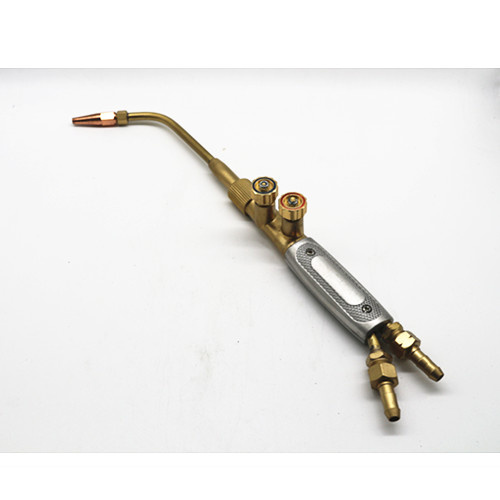

Factory Directly Supply Russian Type Cutting Torch
1. Product Photos
2. Product Parameters| Head | Nozzle for ACE | Nozzle for LPG | Length |
| 90° | 2023AC | 2023LPG | 480MM |
3. Use (1) select the appropriate cutting nozzle according to the thickness of the cutting workpiece, and select the appropriate cutting nozzle.
When assembling the cutting nozzle, the inner mouth and the outer mouth must be kept together to ensure that the cutting oxygen jet is located in the center of the preheated flame, and the cutting nozzle nut should be tightened when the cutting nozzle is installed.
(2) check the suction condition of the suction nozzle, and then the acetylene pipe can be connected to the pipe, so that it can be easily inserted and removed.
When using pressure cutting torch, it should ensure that acetylene has certain working pressure.
(3) after the processing of flame ignition, when screw preheating oxygen regulator adjusting flame, immediately if the flame extinguished, the reason is that the bell mouth contact with dirt or shoot straw gas channel memory is lax, and the cutting nozzle improper coat with inside the mouth.
At this point, the pipe nut should be tightened.
When it is not valid, remove the pipe from the pipe, remove the dirt from the gas passage and adjust the gap between the cutting nozzle coat and inner sleeve, and tighten it.
(4) the leak of cutting nozzle core preheating flames after normal, adjusting cutting mouth issued rhythmic "beep, beep" sound, but does not extinguish fire, if the opens cutting oxygen, the flame out, as soon as the reason for this is that cutting nozzle core gas leakage.
At this point, remove the cutting coat and gently tighten the core.
If it is still not effective, remove the coat and use the asbestos cord.
(5) the fire is normal when the cutting head and cutting torch are not properly handled, but when the oxygen regulating valve is opened, the flame is extinguished immediately.
The reason is that the cutting head and the cutting torch match, the surface is not strict.At this time, the cutting nozzle should be tightened, and when it is invalid, cut off the cutting mouth and use fine sandpaper.
Grind the head to match the surface until well combined.
(6) when tempering occurs, it shall immediately close the cutting oxygen regulating valve and then close the acetylene regulating valve and the preheating oxygen regulating valve.
When the normal work stops, the oxygen regulating valve should be concerned first, then the acetylene and the preheating oxygen regulator.
(7) to keep the cutting channel clean and cut, the channel should be kept clean and smooth, and the dirt in the channel should be cleaned with the needle at any time.
(8) clean the surface of the workpiece surface of the workpiece, and clean the oil and water.
When cutting on the concrete surface, it should be made of high work pieces, which can be used as anti-rust skin and slag to splash and hurt on the concrete surface.
4. Company Profile
A manufacturer specialized for devising varies of pressure gauges, thermometers and other hardware appliances.
One of China's main bases of operations for exporting pressure gauges and thermometers.
Developing all stainless steel pressure gauges, shock-proof pressure gauges, etc.
Supplying different kinds of products with high quality and favorable price.
Sticking to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" and " Zero defect, zero complaints".
Enjoying a high reputation as regular supplier to European, Middle East, South America, Africa and Southest of Asia.
Won the certificate of EN3, EN671, EN1869 and CE approval.
We are sincere in looking for partners to develop and cooperate together in new business opportunities.
5. FAQ Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: L/C, TT, Western Union, Money Gram, paypal, etc.
Q3. What is your trade terms?
A:FOB, CFR, CIF.
Q4. How about your delivery time?
A: Small orders finished within 3 working days;
Bulk orders finished within 15 working days.
Q5. Can you produce according to the samples?
A: Yes, free samples could be provided.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.Q8: How do you make our business long-term and good relationship? We keep good quality and competitive price to ensure our customers
benefit.
6. Contact Information Kathy Honey
International Sales
Qingdao J AND K Co.,Ltd
Tel :8615254236418
If you have any demand, welcome to make an inquiry or place a trial order.
For more details, pls feel free to contact us. :)

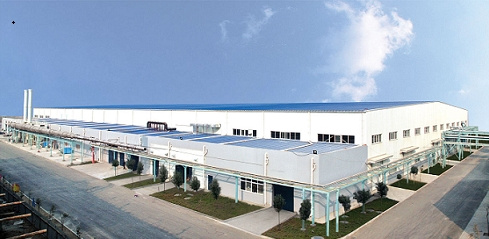

Qingdao J&K Co., Ltd locates in Qingdao with beautiful view, elegant environment and convenient traffic. It is a modernized metal machining factory with Powerful technology, advancedequipments and Considerate after-sales service. Which covers over an area of 9000.
