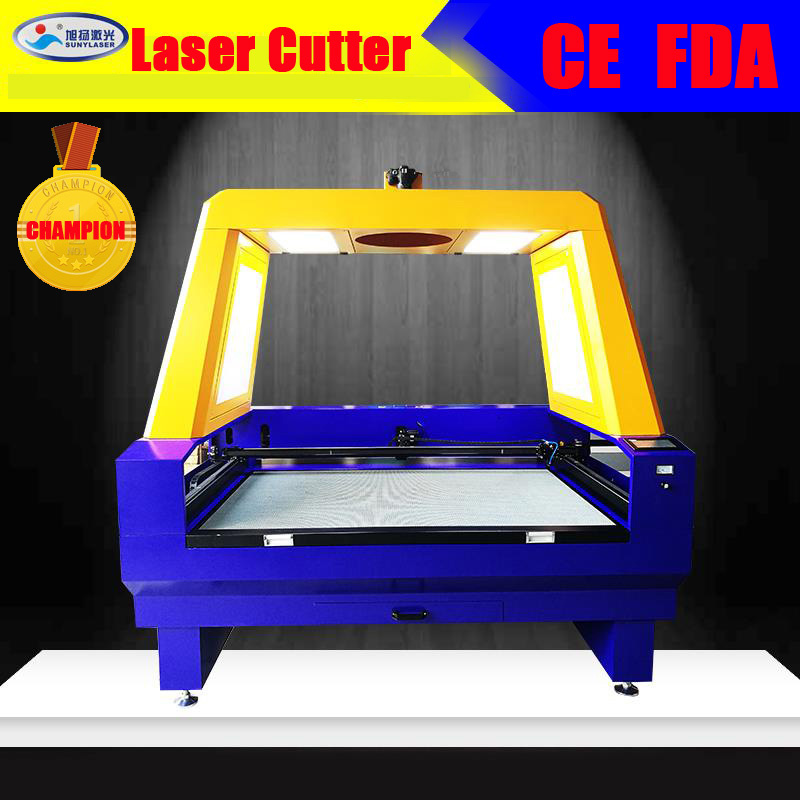

Fast Speed Laser Cutting Machine with Panomatic Camera for Embroidery
| Price: |
US $ 4000-6000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

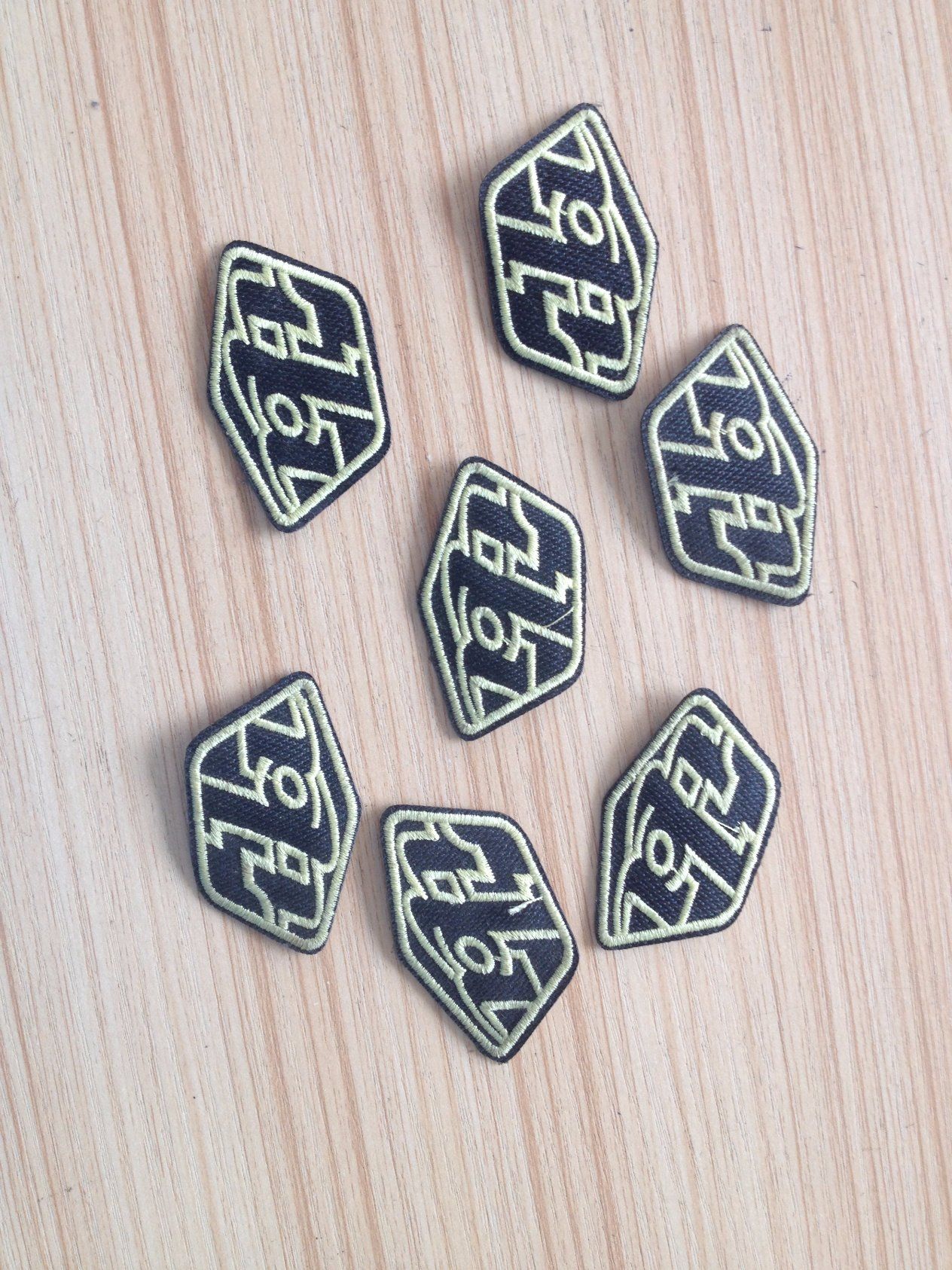

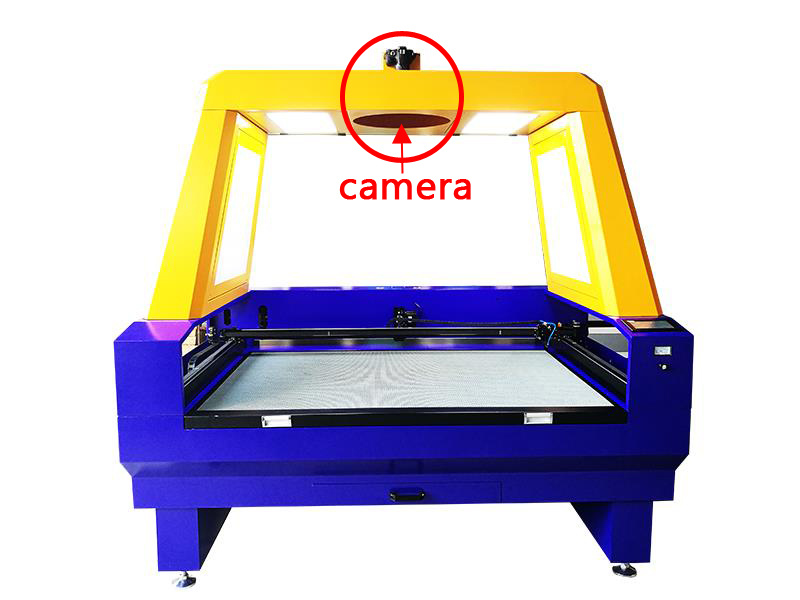

SUNYLASER applies ourselves to new products'innovation and development, SUNY-S series laser cutting machine is one fully auto intelligent model, it with 3.2 million pixels CCD camera, can take photos of cutting objects' contour, thus cutting the edges automatically. It is widely used in trademark industry, with the clothing industry's development to individuation, alien trademarks are more and more demanded, previously traditional cutting techniques can't meet requirements, however, SUNYLASER fully auto camera positioning cutting machine is perfect cutting expert of alien trademarks, high configuration, stable performance, superbly fast speed
Specifications:
Control system: |
DSP control system |
Laser type: |
Sealed CO2 glass laser tube |
Working area: |
1600*1000mm(62.99*39.37inch) |
Work platform: |
Honeycomb platform |
Laser power: |
60w/80w/100w/130w/150w |
Pass-thru doors: |
Allow to cut extremely long materials(max thickness 40mm) |
Interface: |
USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: |
64Mb Buffer Memory |
Driver system: |
Stepper motor |
Auxiliary equipments: |
Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: |
10000 Hours |
Repeating precision: |
±0.05mm |
Moving system: |
CNC controlling units |
Cooling mode: |
Water-cooling and protection system |
Max speed: |
600mm/s for engraving, 300mm/s for cutting |
Working voltage: |
AC110/220±10% 50/60Hz |
Whole power: |
<1250W |
Operating temperature: |
0-45°C(32° - 113° F) |
Operating humidity: |
5%-95% |
Controlling software: |
Original sunylaser software |
Graphic format supported: |
BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2,
JPC,PGX,RAS,PNM,SKA,RAW etc |
Compatible software: |
Auto CAD, CoreIDraw X2/X3/X4, photoshop etc |
Resolution: |
4000DPI |
Machine dimension: |
2150*1560*1150mm |
Packing dimension: |
2240*1600*1290mm |
Net weight: |
320kg |
Gross weight: |
400kg |
Packing: |
Plywood case |
Standard accessories:
1) 2×Air pumps/compressors for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans/Blower with Tube ducts (install inside machine)
3) 2×Industrial chillers
4) 2×Water protections(make sure the water cycle is normal)
5) 1×USB Cable (connecting PC and laser)
6) 1×DVD (including software, user manual, guiding videos etc)
7) 1×Power cable
8) 1×Tool box
| Prod Model: |
SUNY-1610Q |
| Working Area: |
1600*1000mm |
| Laser Power: |
60W/80W/100W/130W/150W |
| Laser Tube Lifespan: |
10000hours |
| Machine Size: |
2150*1560*1150mm |
| Machine Weight: |
320kg |
| Color: |
Any |
| Certificate: |
Ce FDA |
| Speed: |
800mm/S |
| Lead Time: |
5 Working Days |
