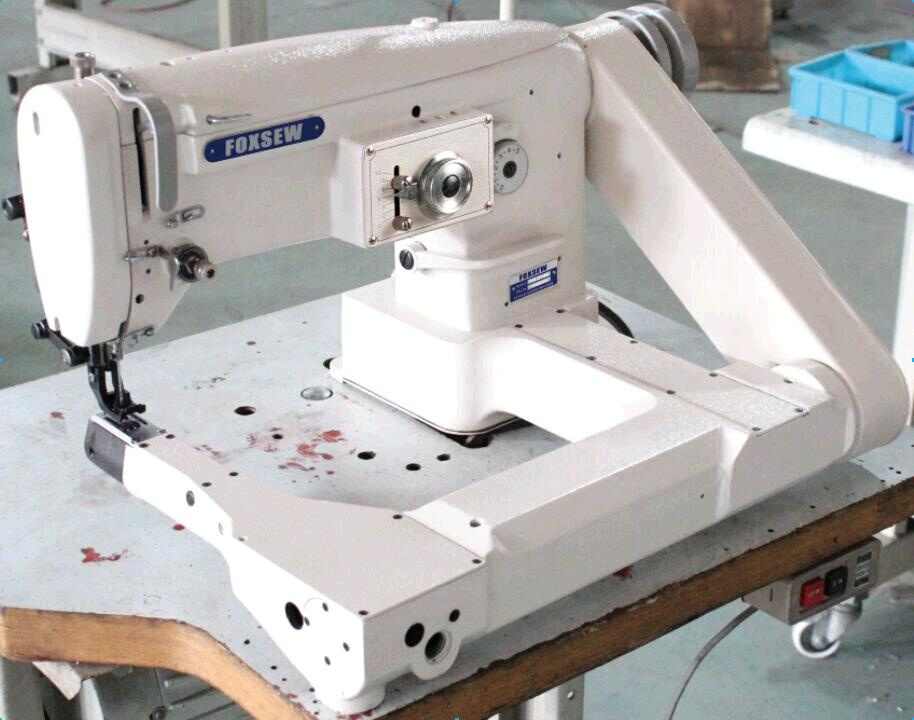

FOXSEW Feed off the Arm Zigzag Sewing Machine
Working Video 1: www.foxsew.com/company-video/feed-off-the-arm-zigzag-sewing-machine-94.html
Working Video 2: www.foxsew.com/company-video/feed-off-the-arm-zigzag-sewing-machine-for-cup-case-250.html
Working Video 3: www.foxsew.com/company-video/feed-off-the-arm-zigzag-machine-for-lockstitch-279.html
Working Video 4: www.foxsew.com/company-video/feed-off-the-arm-zig-zag-stitching-machine-for-neoprene-seaming-296.html
Working Video 5: www.foxsew.com/company-video/feed-off-the-arm-zigzag-machine-for-neoprene-wetsuits-303.html
Working Video 6: www.foxsew.com/company-video/feed-off-the-arm-zigzag-machine-for-cups-cover-305.html
Working Video 7: www.foxsew.com/company-video/feed-off-the-arm-zig-zag-stitch-machine-for-circular-cylinder-products-304.html
FEATURE:
1. Adopt double presser foot with upper & lower feed that make the stitching neat and beautiful.
2. Cylinder Diameter: 40mm; Cylinder Length: 230mm
3. Designed convenient reverse feed lever on left forward side, easy for operation.
4. A new sealed ridge improvement which prevent oil leaking completely.
5. Graduated dial for feed adjustment and reverse feed with spring return. Both are easily operation.
6. Shuttle and large hook to reduce problem of changing base thread that will increase efficiency.
7. Automatic high speed oil reservoir lubrication system.
8. When sewing multi-layers leather fabrics, the inner layer will not move.
Applications:
1. For sewing medium to thick fabrics, bags, attaché cases, shoes, sports shoes, caps, gloves, canvas, tent, garments, golf gloves ,surfing suits, sports goods, sofa, sleeves, cell-phone cover, leather & cylindrical products.
2. Particularly well suited for difficult proceeding material, such as slippery surfaces, flexible or adhesive materials.
3. 3-step, 4-step Zigzag sewing enhance power of stitch
Specifications:
Model |
Max Sewing Speed |
Zigzag Stitch width |
Stitch Length |
Presser Foot |
Needle |
FX-2156-2 |
1200 |
10 mm |
4.0 mm |
9-13 |
DPx17#14#22 |
FX-2156-3 |
1200 |
10 mm |
3.0 mm |
9-13 |
DPx17#14#22 |
FX-2156-4 |
1200 |
10 mm |
2.0 mm |
9-13 |
DPx17#14#22 |
