Competitive quality and price fiber optic adapters from KOC.
BRIEF INTRODUCTION
All of the adapters like SC,LC,FC,ST,MU,D4,DIN are use ceramic sleeve to connect connectors although they are different size and appearance. Each species has a lot of types and colors can be chose. Single mode and multi-mode are different performance and price. These adapters can locking the connectors and get low insertion loss to transmission optical signal, which have been widely applied to the CATV system, communications system, FTTx system, ODF, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing adapters and all of them are meet the Telcordia and IEC-61754 stander, the material compliance RoHS require.
FEATURES
Low insertion loss
Good exchangeability and durability
High temperature stability
All parts compliant with RoHS
Polytypic
APPLICATIONS
Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN
SPECIFICATIONS (SC, LC, FC, ST, MU, D4, DIN ,MTRJadapter)
| ITEM | PARAMETER |
| Applicative adapter type | SC,LC,FC,ST,MU,D4,DIN,MTRJ |
| Fiber mode | Single mode | Multi-mode |
| Adapter color | Blue, green, metal | Beige, metal |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB Max change,1000 mating |
| Channels | Simplex,Duplex,4channels |
| Body material | Plastic or metal |
| Sleeve material | Ceramic(ZrO2) |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |

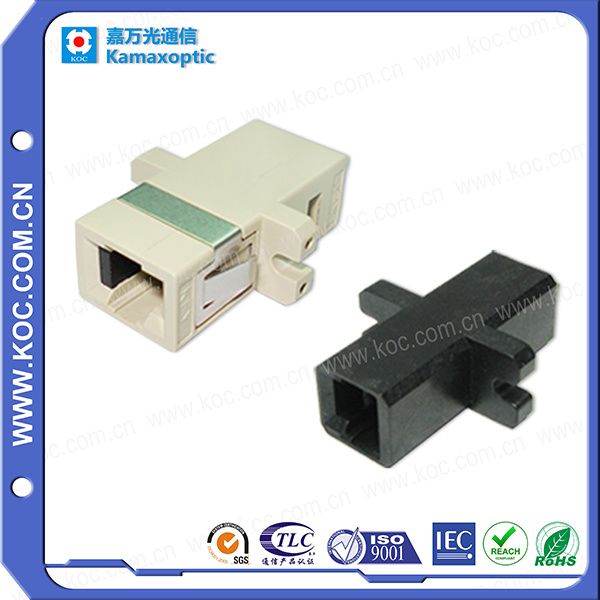

Note: the FOB price range is MTRJ fiber optic standard simlex adapter
