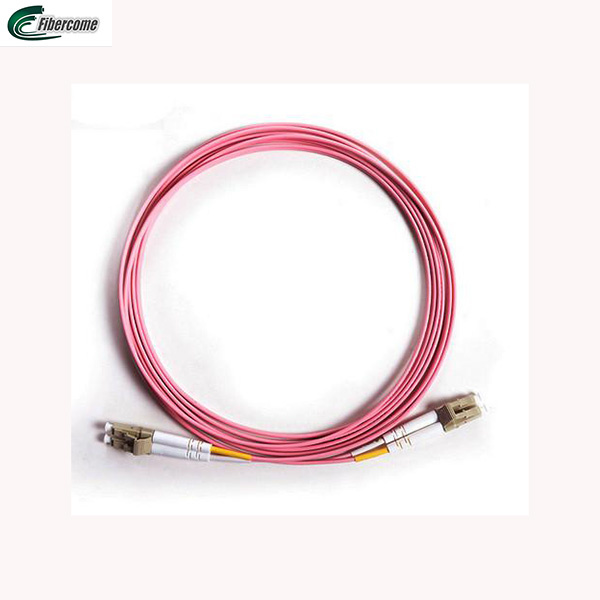

Fiber Optical LC Om4 Duplex Fiber Patch Cords

Product Description
Fiber Optical LC Om4 Duplex Fiber Patch Cords
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the SC.
We provide high qualiy fiber optic patch cord,LC,SC,FC,ST,single mode and multi mode.
Fiber Optical LC Om4 Duplex Fiber Patch Cords










2. Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability

3. Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication


Item	Single Mode	Multi Mode
Insertion Loss	<=0.2dB	<=0.3bB
Insert-Pull Test	1000 times
Operating Temperature	-40ºC ~ +85ºC
Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um	127um concentricity deviations:>=1um
Suitable Fiber	9/125um	50/125um,62.5/125um
Return Loss	>=45dB(PC);>=60dB(APC)	>=35dB
Material	PVC/LSZH
Connect kits	Shell, tail cover, bag insert core, dustproof cap, white buckle, straight gear, spring, cap pressure spring, funnel

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC	MU	MU	DN	DIN
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC	MT	MTRJ	E2	E2000

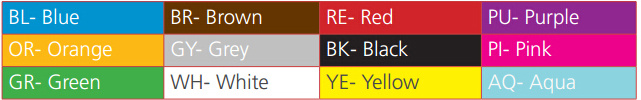

Color Code

Note:Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
