| Prod Model: |
123 |
| Max Width: |
6m |
| Material: |
SUS304 |
| Hole Shape: |
Square |
| Application: |
Window Curtain |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Wire Mesh Width: |
1m |
| Technique: |
Woven |
| Nickels: |
8% |
| Certification: |
ISO9001 |
Product Description

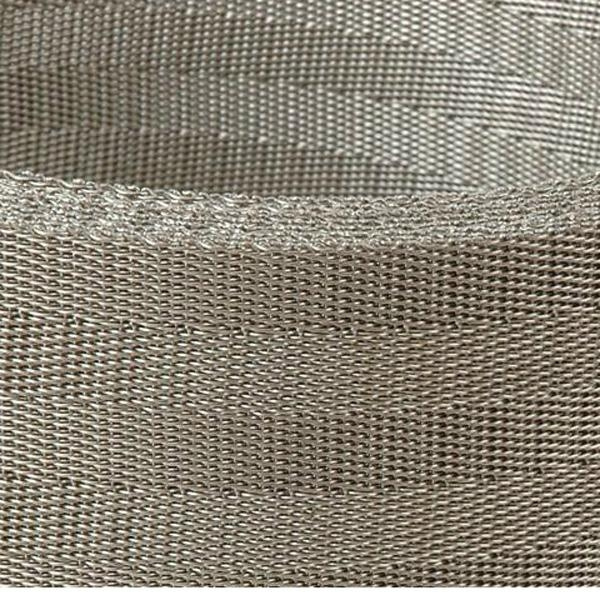

Five Heddle Weave Wire Cloth
Five Heddle Weave Wire Cloth provides a rectangular opening. The unique design of this mesh can assist increased drainage and flow properties. This mesh also has a smooth surface on one side.
Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L.
Standard width of stainless steel wire mesh: 1m or 48". Standard roll length of stainless steel wire mesh: 30m or 100'.
Packing: wrapped with moister-proof paper, then in wooden cases.
Typical Use: Industrial woven wire cloth is used in filtration of petroleum chemical industries, in the form of filter ribbons or filter elements.
Stainless steel Wire Mesh Specification| Specification of Five Heddle Weave Wire Cloth |
Meshes per inch
Warp × Weft (mesh) | Wire Diameter (mm) | Aperture (mm)
Warp × Weft | Open Area % | Weight (kg/mm) |
| 108 × 59 | 0.160 | 0.075 × 0.271 | 20 | 1.07 |
| 110 × 60 | 0.160 | 0.071 × 0.263 | 19 | 1.09 |
| 38 × 38 | 0.150 | 0.518 × 0.518 | 60 | 0.43 |

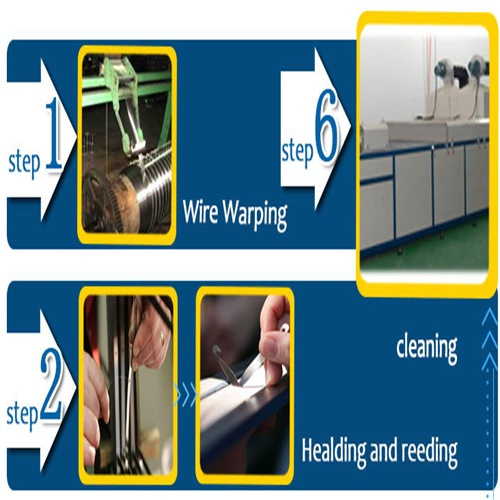

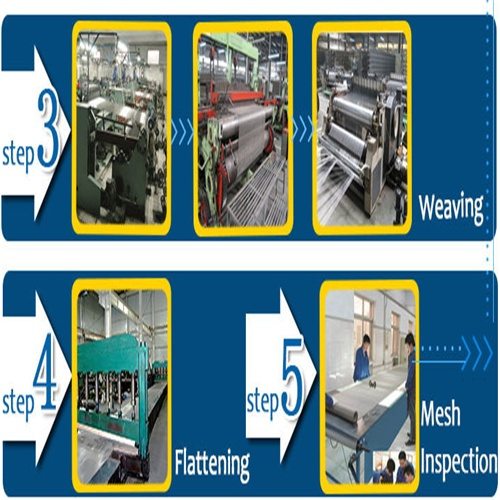

Stainless Steel Wire Mesh Manufacture Process
Stainless steel wire mesh products uses:
Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration
Oil: oil purification, oil mud filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification and other drugs
Electronics: Circuit board framework, electronic components, battery acid, radiation module
Printing: Ink filtration, carbon filtration, purification and other toner
Equipment: vibrating screen
Stainless Steel Wire Mesh Product Features:
Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection
Stainless steel wire mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high opensurface area and good fireproof property.
Looking for ideal Stainless Steel Weave Wire Mesh Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Tela Weave Wire Cloth are quality guaranteed. We are China Origin Factory of Reverse Woven Wire Mesh. If you have any question, please feel free to contact us.
Anping County Huaxi Wire Mesh Co., Ltd. Is a big wire mesh manufacturer located in Anping of Hebei Province, the famous Wire Mesh Land of China. Huaxi is specialized in wire drawing, galvanizing and wire mesh weaving. With over 100 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
Huaxi mainly produces Stainless Steel Wire Mesh, Metal Wire, Binding Wire, Welded Wire Mesh, Crimped Wire Mesh, PVC Coated Wire Mesh, PVC Sprayed Wire Mesh, Barbed Wire, Chain Link Fence, Wire Conveyor Belt, Circle Wire, Mesh Fencing as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual benefit.
