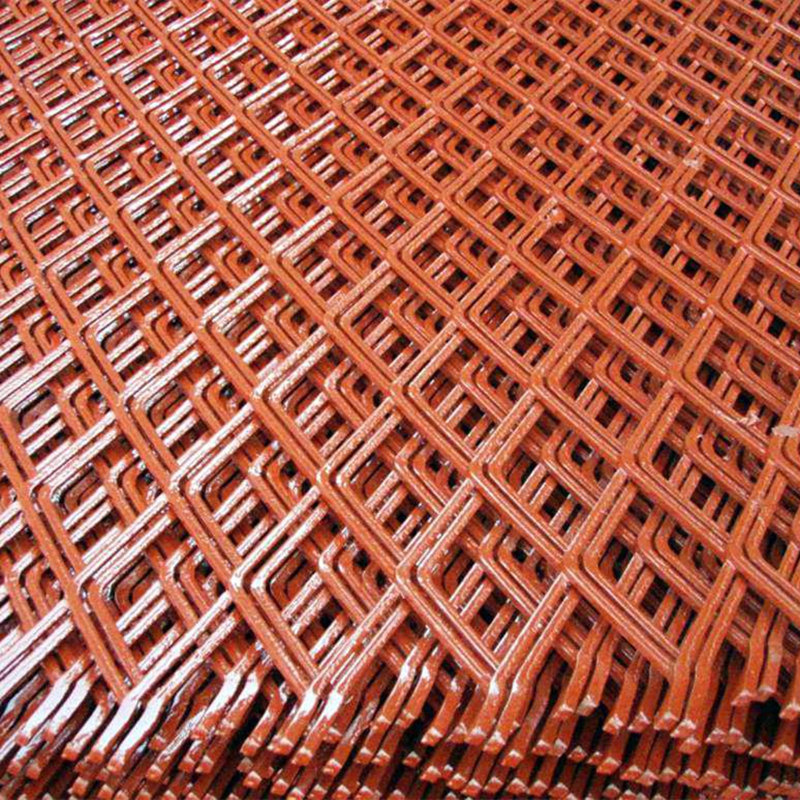

Expanded metal sheet:
The material:stainless steel plate , aluminium plate,common carbon plate ,brass plate ,nickle plate,titanium plate ,iron plate ,al-mg alloy plat
Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Sheet size is according to client's requirement
Length: According to Your Requirement
Packing: Moist-Proof Paper/Carton/Pallet
| standard expanded metal lath-Specification of Expanded Metal Mesh |
| Sheet Thickness(mm) | Opening in Width
(mm) | Opening in Length
(mm) | Strand Width(mm) | Roll Width
(m) | Roll Length
(m) | Weight
(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Hebei Weiyue Wire Mesh Products Co., Ltd makes and sells primary wire mesh and wire products. It's located in "the hometown of wire mesh", Anping County of China.
Since its beginning, we have been working at four points, they are High Quality, Quick Delivery, Better Price and Thorough Service. Rely on the product quality and our credit standing, we have got favourable comments from the customers.
The company introduces precise making machines and technics, combining scientific inner managing method and quality control system. Since the year it was established, we developed our powder and credit standing and got reliances of our customers in home and abroad. Our products is checking by very high standeard, and the qualified ones leaved the factory to the whole country and some abroad countries, such as Southeast Asia, Middle East, America, Japan, and some Africa countries.
Hebei Weiyue Wire Mesh Co. Ltd makes and sells kinds of wire products which are widely used in extensive areas, petrolem, chemical, architecture, foodstuffs and so on. Main selling products are stainless steel wire mesh, perforated metal, expanded metal, galvanized square mesh, window screen, crimped screen, fences, chain link mesh, barbed wire, razor barbed wire, filed fence, welded wire mesh, hexagonal wire netting, fiberglass wire mesh and so on. We also sellss relative further products with the wire meshes above.
Weiyue keeps product quality and credit standing to be the first degree. In virtue of wire mesh, we wish to develop good relationships with you, all around the world.
