Forming Fabrics Used for Paper Machine

Name: Forming Fabrics Used for Paper Machine
Brand: FullPackage
SKU: 835282925
Availability: InStock
Rating: 4.6 (39 reviews)

Price:	US $ 20/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SH-FF109
Name:	Forming Fabrics
Supply Type:	Make-to-Order
Wire Diameter Warp(mm):	0.20
Wire Diameter Weft(mm):	0.25
Density (Root/Cm) Warp:	29
Density (Root/Cm) Weft:	22
Tensile Strength :Surface:	>=600
Thickness:	0.41-0.87mm
Permeability:	7500+-500
Hole Shape:	Square
Application:	Dustproof
Type:	Primary Filter
Style:	Filter
Material:	Polyester

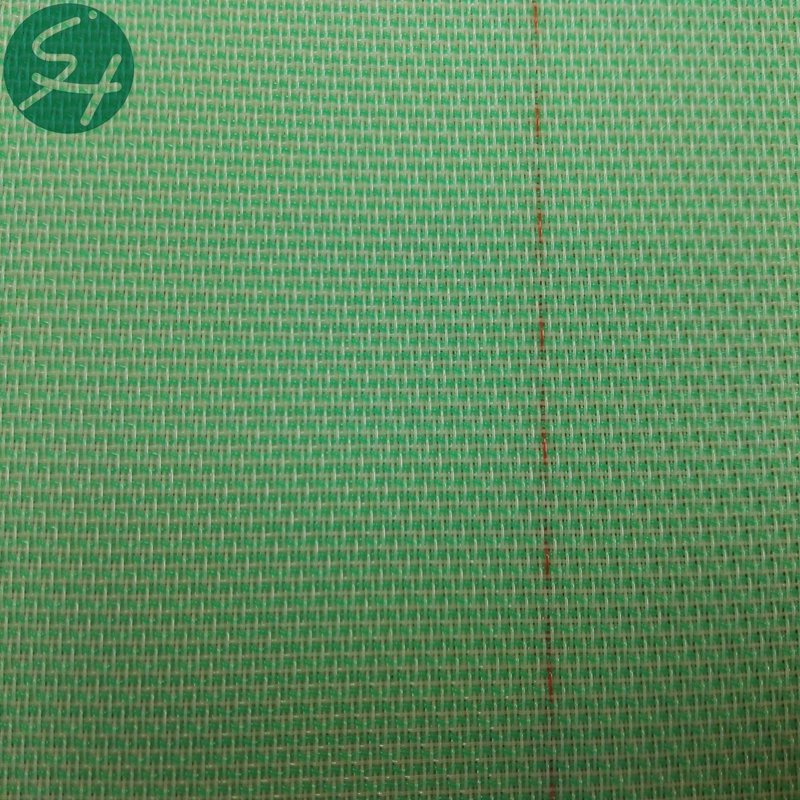

Product Description

Sun Hong Fabric factory is a professional Industrial Fabric manufacturer for tissue ,package ,writing &news printing paper etc. Our products have the press felt, forming wire and dryer fabric which can meet the machine speed under 1800 m/min. Our mainly producing equipment is imported from Europe . Our technical team own 30 years experiences on designing and after sales service to keep our fabric good performance on your paper machine .

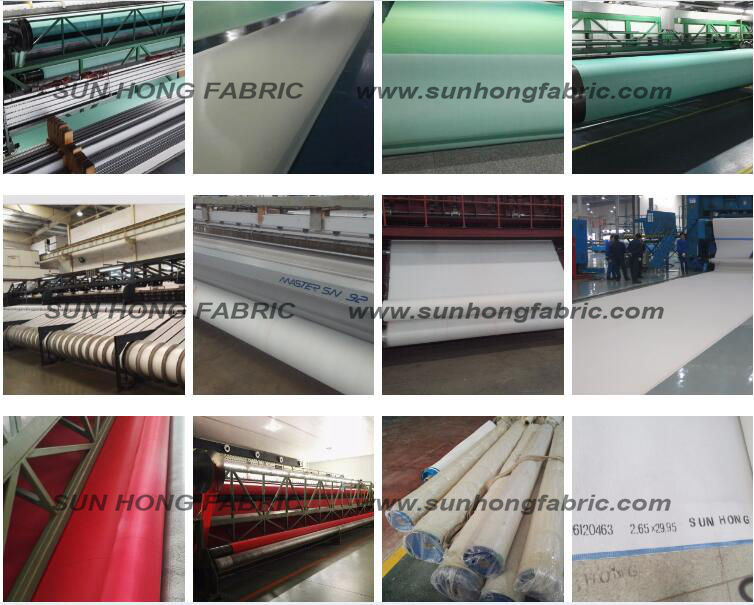

The following photos show our workshop for paper machine clothing products .

Models	Weaving series and types	Filament diameter mm		Density(root/cm)		tensile strength		Thickness mm	m³/m²h	Force elongtion (in 50N/cm Tension,Tensile rate not more than )
Models	Weaving series and types	warp	weft	warp	weft	surface	joint	Thickness mm	m³/m²h
SH27254	4 heddle monolayer forming fabric	0.2	0.25	30	22	≥600	≥400	0.49	8000	0.60%
SH27274		0.2	0.27	30	21.5	≥600	≥400	0.51	7800	0.60%
SH31204		0.18	0.2	35	28	≥600	≥380	0.43	7500	0.68%
SH31204-1		0.18	0.2	35	30	≥600	≥380	0.43	7000	0.68%
SH30205	5 heddle monolayer forming fabric	0.17	0.2	32	28.5	≥500	≥350	0.41	7100	0.60%
SH31215	5 heddle monolayer forming fabric	0.2	0.21	35	32	≥600	≥400	0.48	7000	0.60%
SH25358	8 heddle monolayer forming fabric	0.22	0.35	28	19.5	≥700	≥500	0.85	9000	0.65%
SH25388		0.22	0.38	29.5	19	≥700	≥500	0.87	8500	0.65%
SH27358		0.22	0.35	30	20	≥700	≥500	0.85	8500	0.65%
SH25458		0.22	0.45	29	15.2	≥700	≥500	0.87	7500	0.65%

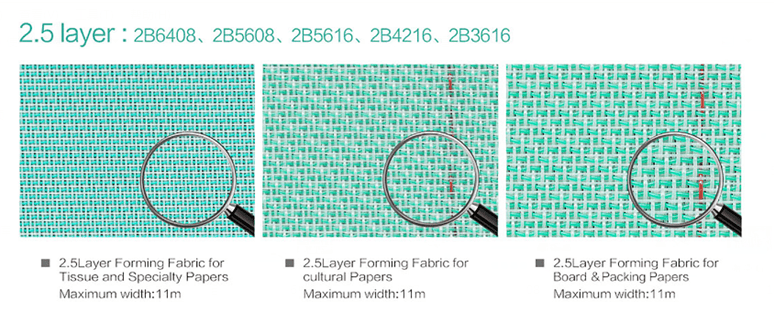

Models	Warp Mesh	Weft Count	Warp Diameter	Weft Diameter	Air Permeability		FSI	DI
Models	Warp Mesh	Weft Count	Warp Diameter	Weft Diameter	/m³/m²H	CFM	FSI	DI
SH2B6408	71.5-72.5	67.5-68.5	0.15	0.18 0.12/0.22 0.22	4350	275	155	25.7
	71.5-72.5	65.5-66.5	0.15	0.18 0.12/0.22 0.22	4600	290	152	26.3
	71.5-72.5	56.5-57.5	0.15	0.18 0.12/0.22 0.22	5800	370	135	29
	71.5-72.5	47.5-48.5	0.15	0.18 0.12/0.22 0.22	7900	500	119	33
SH2B5616	62.5-63.5	60.5-61.5	0.17	0.20 0.13/0.30 0.30	4500	285	139	23.9
	62.5-63.5	59.56-60.5	0.17	0.20 0.13/0.30 0.30	3950	250	137	20.6
	62.5-63.5	53.5-54.5	0.17	0.20 0.13/0.30 0.30	5050	320	126	23.7
	62.5-63.5	47.5-48.5	0.17	0.20 0.13/0.30 0.30	6000	380	115	25.1
SH2B4216	47.0-48.0	47.0-48.0	0.22	0.20 0.13/0.30 0.30	6000	380	107	25.1
SH2B4216	47.0-48.0	40.0-41.0	0.22	0.25 0.17/0.40 0.40	7000	445	94	25.1
SH2B3616	40.5-41.5	38.5-39.5	0.26	0.30 0.20/0.50 0.50	5500	350	89	18.8
	40.5-41.5	36.5-37.5	0.26	0.30 0.20/0.50 0.50	6350	400	85	20.4
	40.5-41.5	34.5-35.5	0.26	0.30 0.20/0.50 0.50	7000	445	82	21.4

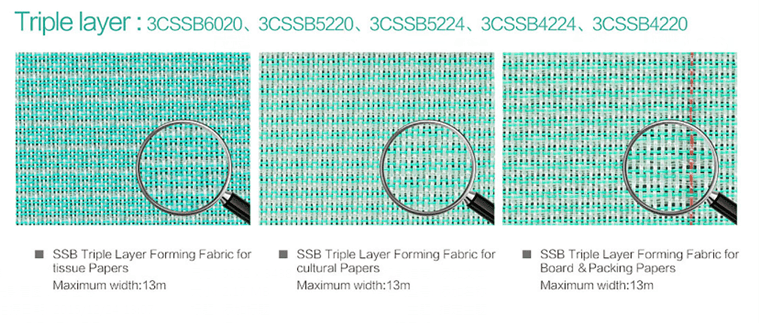

Models	Warp Mesh	Weft Count	Warp Diameter	Weft Diameter	Air Permeability		FSI	DI
Models	Warp Mesh	Weft Count	Warp Diameter	Weft Diameter	/m³/m²H	CFM	FSI	DI
SH3C6020	69.5-70.5	79.5-80.5	0.13/0.20	0.13 0.13/0.27 0.27	3950	250	195	25.4
SH3C5220	59.5-60.5	79.5-80.5	0.13/0.20	0.13 00.13/0.30 0.30	4500	285	186	29
	59.5-60.5	67.5-68.5	0.13/0.20	0.13 0.13/0.30 0.30	6350	400	166	34.5
	59.5-60.5	61.5-62.5	0.13/0.20	0.15 0.15/0.35 0.35	6000	380	156	29.9
SH3C5224	51.5-52.5	54.4-55.5	0.17/0.25	0.17 0.17/0.40 0.40	4500	285	137	19.9
SH3C5224	51.5-52.5	48.5-49.5	0.17/0.25	0.17 0.17/0.40 0.40	6000	380	127	23.6
SH3C4224	41.5-42.5	43.5-44.5	0.22/0.30	0.22 0.22/0.45 0.45	5500	350	110	19.6
SH3C4224	41.5-42.5	39.5-40.5	0.22/0.30	0.22 0.22/0.45 0.45	7000	445	103	22.6
SH3C4220	41.5-42.5	49.5-50.5	0.20/0.30	0.22 0.22/0.45 0.45	5500	350	119	22.2
	41.5-42.5	45.5-46.5	0.20/0.28	0.22 0.22/0.50 0.50	6350	400	113	23.4
	41.5-42.5	39.5-40.5	0.20/0.28	0.22 0.22/0.50 0.50	8000	505	103	25.7

FAQ:
1.How to make an inquiry of Forming fabric ?
You need to provide the following information

speed of paper making machine
kind of paper,
GSM of paper

If you have detailed requirement,we'll provide formal quotation list after your inquiry received immediately.

2.Could you provide free sample ?
Yes, we can provide free sample together with our catalogue for A Deepen understanding to Fabric . But the courier charge will on your side. We'll send back the courier charge from the order you placed.
