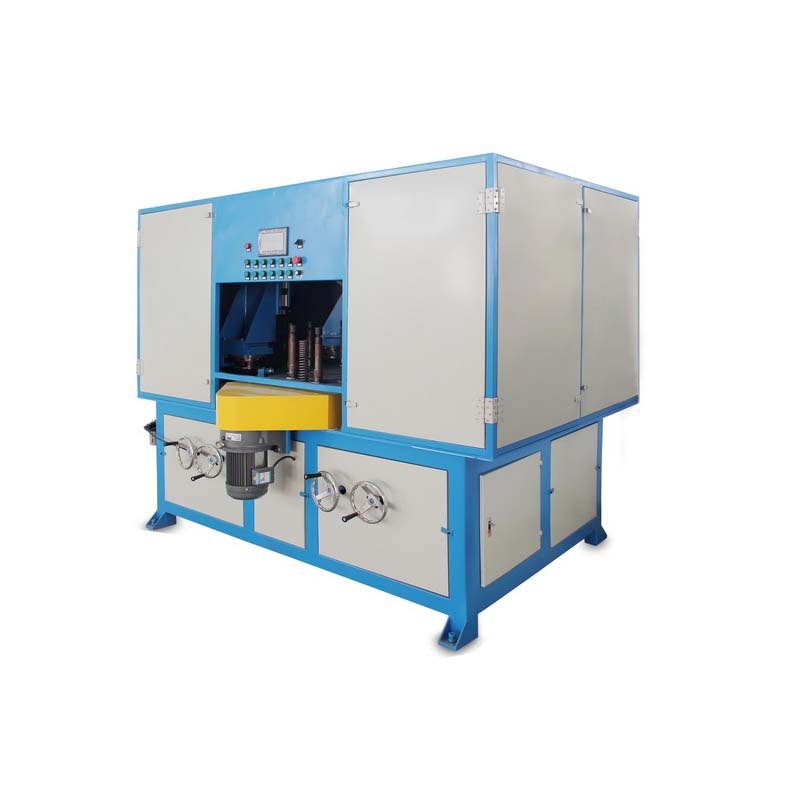

Four Head Rotary Table Polishing Machine
| Price: |
Negotiableset |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JZ-P9001 |
| Name: |
Four Head Rotary Table Polishing Machine |
| Motor: |
3kw*4 |
| Worktable Size: |
1000mm |
| Workpiece Jigs: |
12PCS (Depend on Cutomer's Workpiece's Size) |
| Mechanical Control: |
PLC/CNC Control |
| Automatic Sompensation System: |
Yes |
| Polishing Consumables: |
Abrasive Wheels, Cloth Wheels |
Product Description
Four head rotary table polishing machineHigher production with super polished finishing
Easy operation and less maintenance
PLC/CNC operation and polishing without deformations
Overseas service available
With CE
Four head rotary table polishing machine developed by us represents a leading worldwide innovation with integration of multi-axes systems in the rotary polishing machine,providing a new performance and polishing system.The movement of each polishing head and rotary table turning are controlled by PLC program. Of course, we have this type machine with CNC controlled according to the items which need polished. Usually use for getting glossy or mirror finishing with polishing wheels for irregular and complex shapes of metal items, like dis-casting fittings. The higher production capacity can help customer improve production and save labor(one machine can instead of 10 labors).Main Parameter of Four head rotary table polishing machine | Model | JZ-P9004 |
| Motor | 4KW*4(the quantity of polishing heads will depend on your items's requirement,such as size,shape and finishing after polishing) |
| Voltage | 380V, 50/60HZ, 3Phase |
| Spindle speed | 2300r/min |
| Rotary table turning speed | 0-8/min |
| Width of spindle | 100mm |
| Control system | PLC program( if need CNC type, Please contact us for details discuss) |
| OD of your items | 0-300mm( for OD more than 300mm,machine will change accordingly to meet your items) |
| Machine size | Rotary table size:1000 mm and whole machine size:2.3*2*1.8m |
| Consumables | Flap wheel,Nylon wheel, Sisal wheel, Cloth wheel, Cotton wheel |
| ROHS | Environment protection completely with dust cover |
It is usually three steps to get mirror polishing:
1. use abrasive wheels to sweep sandholes and scratch of items
2. use sisal wheels to matt finishing
3. use hard/soft cloth wheels to get mirror polishing
Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment.
For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet.
We provide high quality, reasonable prices, and after-sales services to meet customers' needs
